| Place of Origin: | kiosk manufacturer |
| Brand Name: | Lien |
| Certification: | FCC, CE, ROHS |
| Model Number: | LKS-8379 |
| Minimum Order Quantity: | 10 UNITS |
|---|---|
| Price: | $ |
| Packaging Details: | Strong Case |
| Delivery Time: | 5-6 weeks |
| Payment Terms: | TT |
| Supply Ability: | 5000 units per month |

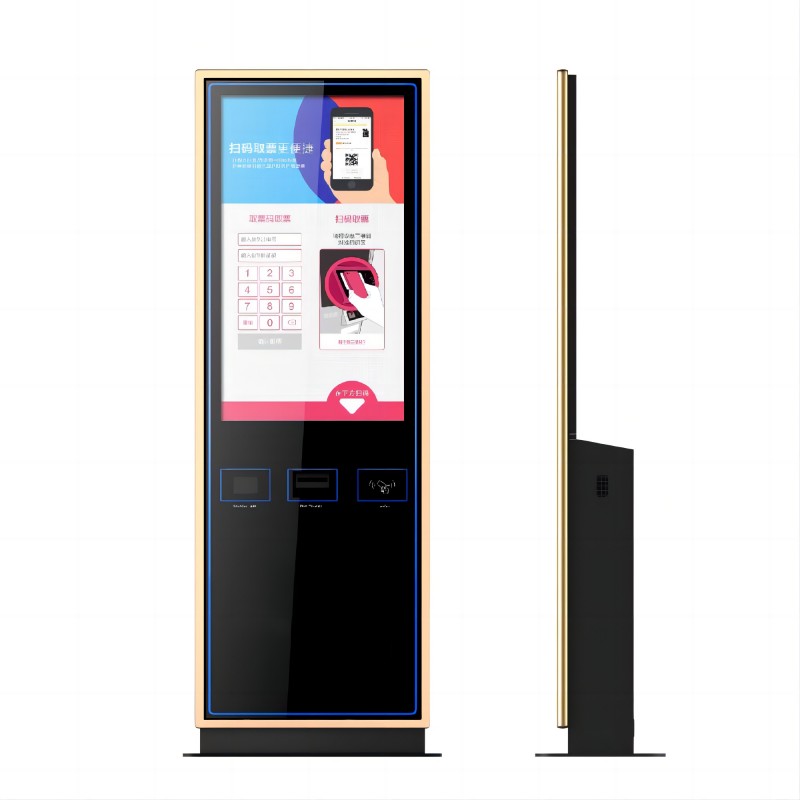

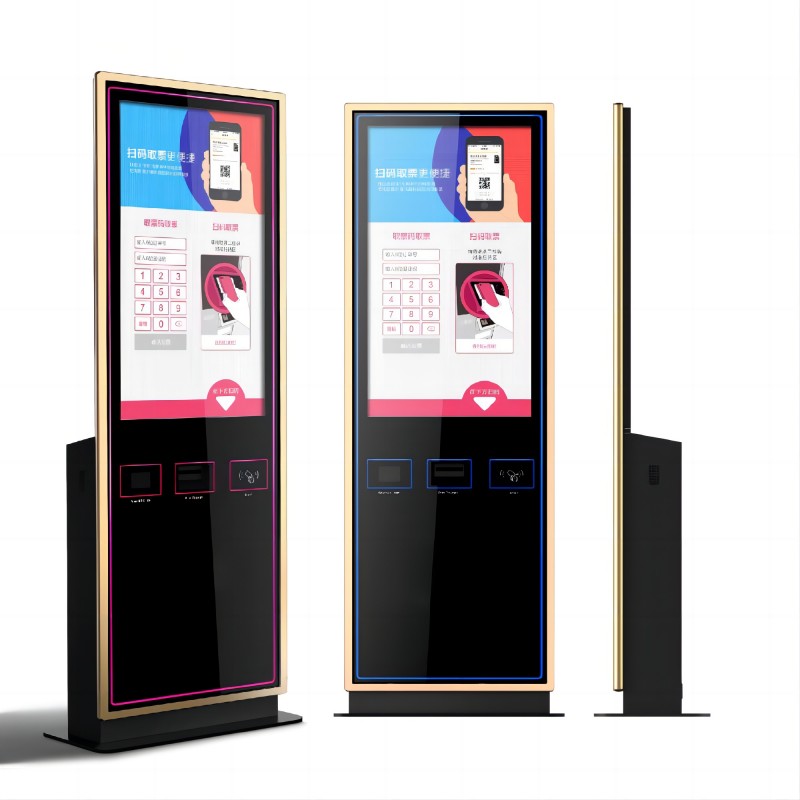

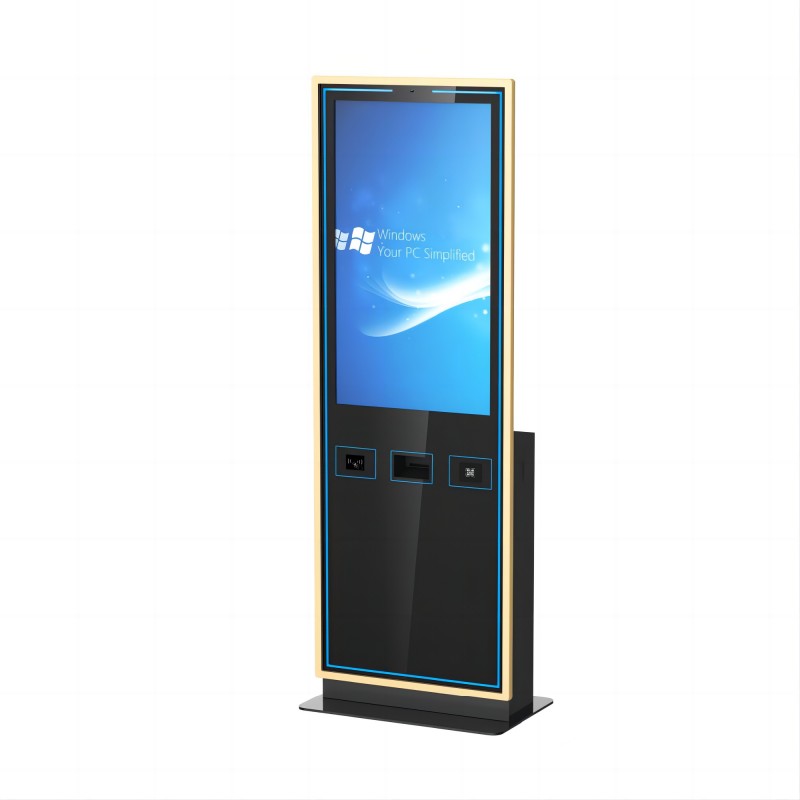

The Touchscreen Display Kiosk Concert Ticket Vending Machine is a self-service ticketing device designed specifically for concerts and concerts. The device combines a high-resolution touchscreen and automatic ticket processing to provide users with a convenient ticketing experience while optimizing the ticketing management process.
Components | Details | |
PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
CPU | Intel Dual Core G2020 | |
RAM | 2 GB | |
HDD | 500G | |
Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card | |
PC Power Supply | HUNTKEY/Great Wall | |
LCD monitor | Screen Size | 22 / 17 inch ( optional from 8inch to 65inch) |
Brightness | 250cd/m2 | |
angle | horizontal 100°above;Vertical 80°above | |
Contrast | 1000:1 | |
Backlight tube life | more than 40,000hours | |
Max. resolution | 1280×1024 | |
Touch screen | Screen Size | inch Diagonal ( optional from 8inch to 65inch) |
Resolution | 4096x4096 | |
High Transparent, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
Receipt / Ticket Printer | Interface | High Speed USB |
Resolution | 4800*1200 maximum | |
Printing speed | 4.8 ipm | |
Width | 58 /80 /112 mm | |
Length | Customizable | |
Webcam
| Resolution | 1280*720 |
Pixel | 8000000 | |
Adaptive Resolution | 1280*720 | |
Interface | USB 2.0 | |
Driver | No | |
NFC card reader | Status Display | LED indicator to show the power or communication status |
Card Type | ISO14443TypeA of Contact-less IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight | |
Type | Support ISO14443 | |
2D scanner | Readable Code | CMOS |
Resolution | 752*480 | |
Readable Code | 2D PDF417, QR Code(Model 1/2), Data Matrix(ECC200, ECC000, 050, 080, 100,140), Aztec, Maxi-code, etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Data-bar, etc | |
Approval | FCC Part15 Class B, CE EMC Class B | |
Work Voltage | DC 5V (4.5-5.5V) | |
Interface | RS232, USB | |
Wireless module | WLAN module | With industrious antenna exposure |
Motorized card reader | Card type | Support Mag card, IC Card, RF Card, Mi-fare S50,S70,UL Card |
Magnetic Head Life | 500,000/min | |
IC Card Touch Port | 300,000/min | |
Speakers | Features | Dual channel amplified speakers for Stereo ,8Ω 5W |
Digital Power Supply | AC input voltage range | 100~240VAC |
Frequency | 50Hz to 60Hz | |
AC input voltage range | 100~240VAC | |
Frequency | 50Hz to 60Hz | |
Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
Operation System | Windows 7 or Windows XP operation system without license | |
Free standing Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Anti-rust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
Package | Security Packing method with bubble foam and wooden case | |
1.High resolution touch screen
The device is equipped with a high-resolution touch screen and the interface design is simple and clear. Users can easily view concert and concert details, including seating arrangements, ticket prices and show times, through the touch screen. The high-definition display of the touch screen ensures a clear presentation of information, making the ticket buying process more intuitive and smooth.
2.Automatic ticketing function
The device integrates self-service ticket purchase, seat selection and ticket printing functions. The device allows users to select their seats, confirm ticket purchases, and print paper tickets immediately, without human assistance. This function simplifies the ticket purchase process, improves efficiency, and makes the ticket purchase process more convenient and efficient.
3.Live ticketing updates
The device is connected to the ticketing system in real time to ensure instant updates of all seat information and ticket status. This real-time synchronization can effectively avoid double booking and stock errors, ensure that users get the latest ticket information, and avoid the inconvenience of information delays.
1.Concerts and concerts
Set up equipment at concerts and concert venues to provide self-service ticket purchase, seat selection and ticket printing services to relieve the pressure of manual ticket sales and improve ticket purchase efficiency.
2.Sports venue
Use the equipment in large stadiums to support on-site ticket purchase, seat selection and ticket printing, providing convenient ticket purchase services for the audience.
3.Exhibition and event Center
Equipment is set up at the entrance of the exhibition and event center to provide participants with self-service ticket purchase and ticket printing services to improve the efficiency of event management.
4.Large entertainment venues
Equipment is placed in the entrance area of the entertainment venue to facilitate the purchase of performance tickets, reduce waiting time in line, and improve customer experience.
1.User-friendly interface
The combination of a high-resolution touch screen and an intuitive operating interface design allows users to quickly get started without complicated training. The simple interface makes the ticket purchase process smoother and more enjoyable.
2.Efficient self-service
The automated ticketing function reduces the reliance on manual conductors and increases the speed of service. Users can quickly self-purchase tickets at busy events, reducing wait times and on-site congestion.
3.Rugged design
The high quality materials and design of the equipment ensure stable performance under high frequency of use. The durable construction ADAPTS to a variety of environments to ensure long-term reliability of the equipment.
4.Data security and privacy protection
The device is equipped with security measures to protect the user's payment information and personal data. Encrypted transmission and secure authentication features ensure the security of the ticket purchase process and prevent data breaches.
5.Improve user experience
Intuitive touch screens and efficient self-service enhance the overall user experience. Users can quickly obtain ticket information and complete ticket purchase, without waiting in line, and enjoy a smooth ticket purchase process.
6.Flexible application scenario
The equipment is suitable for a variety of venues, such as concerts, concerts, sporting events, etc. Its flexible functions and design enable it to meet the ticketing needs of different events and improve the management efficiency of the event site.
The purchase of a Touchscreen Display Kiosk Concert Ticket Vending Machine is ideal for improving concert and concert ticket management. The device, combined with a high-resolution touchscreen and automatic ticketing function, provides users with a convenient and efficient ticketing experience. Its intuitive interface simplifies the ticket purchase process, allowing users to quickly browse information, select seats and complete payments without human assistance, significantly reducing waiting time in line.
Q: How to ship the kiosk?
A: Air and sea shipping are optional, and sea shipping is recommended for bulk orders. All kiosks should be shipped in a standing position and must not be put down.
Q: Are you a manufacturing or trading company?
A: We are an OEM/ODM kiosk manufacturer
Q: What payment methods does your company accept?
A: We accept most payment methods, but mainly accept T/T. L/C, Western Union, PayPal and Money Gram.
Q: How long is your delivery time?
A: It depends on the order quantity, about 5 weeks for samples and about 4 weeks for less than 100 units.
Q: What is the warranty period of your kiosk?
A: 12 months from the date of shipment, for components, free repair or replacement, shipped by sender.
Q: Can you customize the kiosk?
A: Yes, we always customize the product according to your requirements. Including redesigning the kiosk appearance, printing your company logo, choosing specific colors, etc. OEM or ODM is available.
Q: What is the MOQ?
A: The MOQ is 1 unit, we accept samples
