Product Details:
Place of Origin: | kiosk manufacturer |
Brand Name: | Lien |
Certification: | FCC, CE, ROHS |
Model Number: | LKS-8379 |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 UNITS |
---|---|
Price: | $ |
Packaging Details: | Strong Case |
Delivery Time: | 5-6 weeks |
Payment Terms: | TT |
Supply Ability: | 5000 units per month |

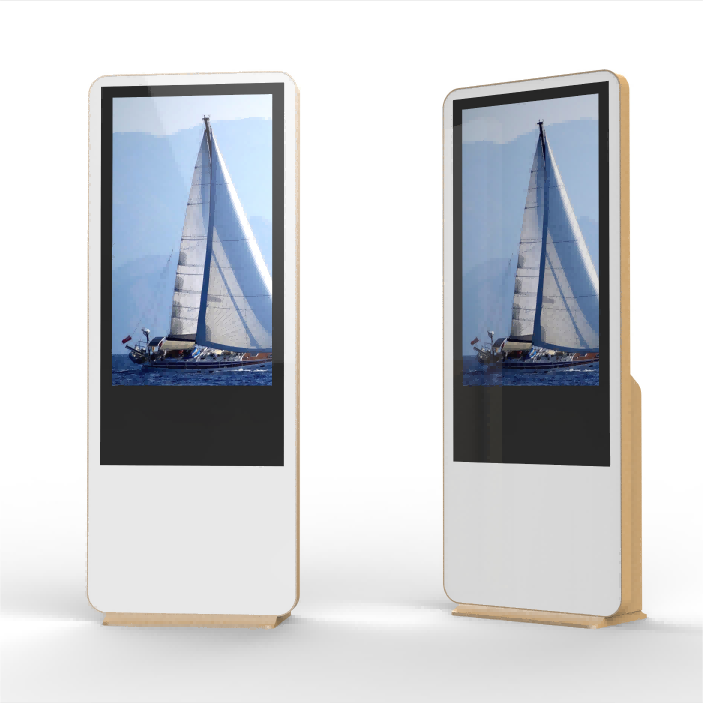

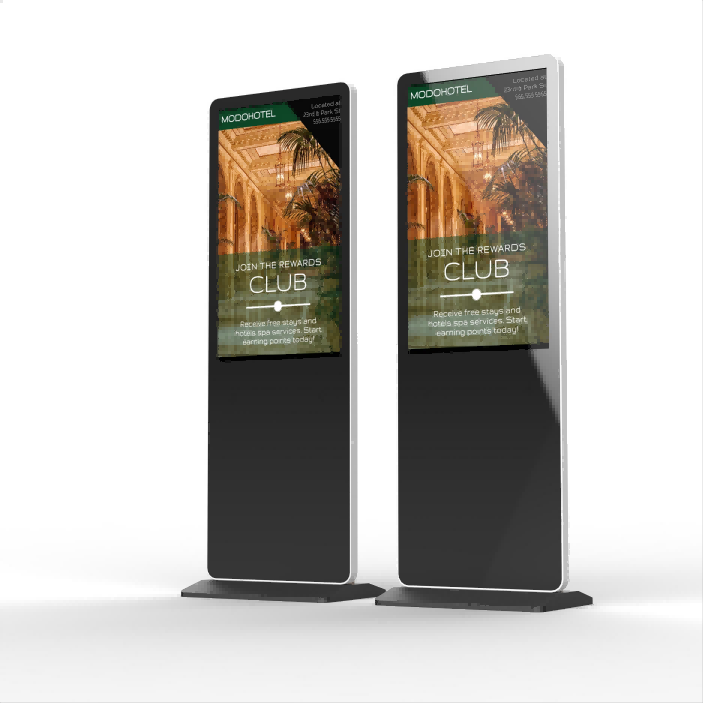

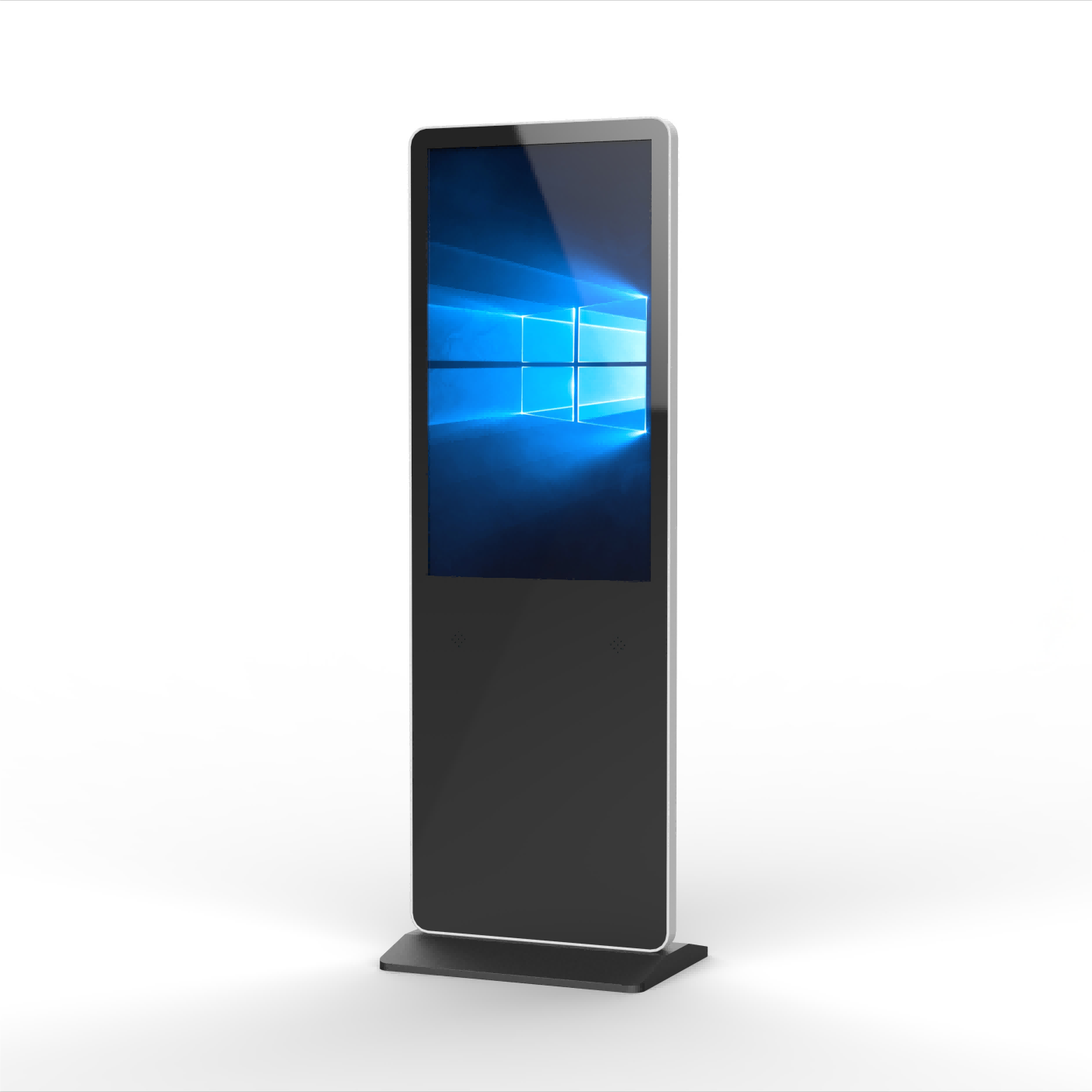

The Touchscreen Display Kiosk Standing Mode is an innovative self-service device that integrates a high-resolution touch screen with a modern design designed to provide users with a convenient and efficient self-service experience. The device is widely used in a variety of public places, such as retail stores, hospitals, hotels, airports and public transportation stations.
Components | Details | |
PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
CPU | Intel Dual Core G2020 | |
RAM | 2 GB | |
HDD | 500G | |
Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card | |
PC Power Supply | HUNTKEY/Great Wall | |
LCD monitor | Screen Size | 22 / 17 inch ( optional from 8inch to 65inch) |
Brightness | 250cd/m2 | |
angle | horizontal 100°above;Vertical 80°above | |
Contrast | 1000:1 | |
Backlight tube life | more than 40,000hours | |
Max. resolution | 1280×1024 | |
Touch screen | Screen Size | inch Diagonal ( optional from 8inch to 65inch) |
Resolution | 4096x4096 | |
High Transparent, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
Receipt / Ticket Printer | Interface | High Speed USB |
Resolution | 4800*1200 maximum | |
Printing speed | 4.8 ipm | |
Width | 58 /80 /112 mm | |
Length | Customizable | |
Webcam
| Resolution | 1280*720 |
Pixel | 8000000 | |
Adaptive Resolution | 1280*720 | |
Interface | USB 2.0 | |
Driver | No | |
NFC card reader | Status Display | LED indicator to show the power or communication status |
Card Type | ISO14443TypeA of Contact-less IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight | |
Type | Support ISO14443 | |
2D scanner | Readable Code | CMOS |
Resolution | 752*480 | |
Readable Code | 2D PDF417, QR Code(Model 1/2), Data Matrix(ECC200, ECC000, 050, 080, 100,140), Aztec, Maxi-code, etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Data-bar, etc | |
Approval | FCC Part15 Class B, CE EMC Class B | |
Work Voltage | DC 5V (4.5-5.5V) | |
Interface | RS232, USB | |
Wireless module | WLAN module | With industrious antenna exposure |
Motorized card reader | Card type | Support Mag card, IC Card, RF Card, Mi-fare S50,S70,UL Card |
Magnetic Head Life | 500,000/min | |
IC Card Touch Port | 300,000/min | |
Speakers | Features | Dual channel amplified speakers for Stereo ,8Ω 5W |
Digital Power Supply | AC input voltage range | 100~240VAC |
Frequency | 50Hz to 60Hz | |
AC input voltage range | 100~240VAC | |
Frequency | 50Hz to 60Hz | |
Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
Operation System | Windows 7 or Windows XP operation system without license | |
Free standing Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Anti-rust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
Package | Security Packing method with bubble foam and wooden case |
1.High resolution touch screen
The device is equipped with a high-resolution touch screen to provide a clear and intuitive user interface. Users can easily browse information and interact with each other through the touch screen, ensuring easy and smooth operation. This high-quality display makes reading information more comfortable and enhances the overall user experience.
2.Upright design
The equipment adopts an upright design, which takes up little space and is easy to place in a variety of environments. Its modern exterior design is not only beautiful, but also perfectly integrated with the interior decoration and layout of different places. Whether it is a spacious hall or a compact corner, this design can be easily adapted to enhance the technological and modern feel of the environment.
3.Multifunctional application
The device supports a variety of functions, including information query, self-service, advertising display and interactive entertainment. Whether used in a retail environment for product display and promotion, or in hospitals for self-service registration and information inquiries, the equipment provides excellent service. Its versatile nature makes it an important tool in a variety of locations to meet the needs of different users and improve service efficiency.
1.Retail store: For product display, inventory inquiry and self-checkout to enhance the customer shopping experience.
2.Hospital: Used for self-service registration, medical information inquiry and payment services to optimize the medical treatment process.
3.Hotel: For self-check-in, information inquiry and room service booking to improve the stay experience.
4.Airport: Used for flight information query, self-service check-in and boarding pass printing to improve passenger travel efficiency.
5.Public transport: Stations are used for frequency inquiry, ticket processing and route guidance to facilitate passenger travel.
1.Easy to operate
Touch screen operation is easy and intuitive, and users can quickly get started without training. The device supports multi-touch and gesture operation, enhancing the flexibility of user interaction.
2.Real-time information update
The device has the function of networking, which can synchronize with the background system in real time to ensure the immediate update of information and data. This function effectively avoids information lag and errors and improves the accuracy of the service.
3.Strong and durable
The equipment is made of high-quality materials and advanced manufacturing processes, with superior durability and reliability. Even in the case of high frequency use, the equipment can maintain stable performance and adapt to a variety of complex use environments.
4.Enhance user experience
The high resolution screen and intuitive interface design enhance the user experience. By providing a variety of service functions, the equipment meets the different needs of users and enhances the overall service quality and efficiency.
5.Improve service efficiency
Automated self-service features reduce reliance on human services, shorten wait times, and improve service efficiency. The device can handle a large number of user requests in a high-traffic area, optimizing the service flow.
6.Flexible configuration
The device interface and functions can be customized to meet the specific requirements of different places and industries. This flexibility enables the equipment to adapt to a variety of application scenarios and provide personalized service solutions.
The purchase of Touchscreen Display Kiosk Standing Mode is ideal for improving the quality of public services and operational efficiency. The device combines a high-resolution touch screen with a modern upright design to provide users with a clear and intuitive interface and a smooth operating experience. Its small footprint makes it suitable for a variety of environments, from retail stores and hospitals to hotels and public transport stops, where it is easy to blend in.
The device supports a variety of functions, including information query, self-service, advertising display and interactive entertainment, to meet the diverse needs of different places. The networking function ensures real-time information update, reduces errors and information lag, and improves the accuracy and efficiency of services. At the same time, its rugged design can cope with high frequency use and maintain stable performance.
Q: How to ship the kiosk?
A: Air and sea shipping are optional, and sea shipping is recommended for bulk orders. All kiosks should be shipped in a standing position and must not be put down.
Q: Are you a manufacturing or trading company?
A: We are an OEM/ODM kiosk manufacturer
Q: What payment methods does your company accept?
A: We accept most payment methods, but mainly accept T/T. L/C, Western Union, PayPal and Money Gram.
Q: How long is your delivery time?
A: It depends on the order quantity, about 5 weeks for samples and about 4 weeks for less than 100 units.
Q: What is the warranty period of your kiosk?
A: 12 months from the date of shipment, for components, free repair or replacement, shipped by sender.
Q: Can you customize the kiosk?
A: Yes, we always customize the product according to your requirements. Including redesigning the kiosk appearance, printing your company logo, choosing specific colors, etc. OEM or ODM is available.
Q: What is the MOQ?
A: The MOQ is 1 unit, we accept samples
