| Place of Origin: | kiosk manufacturer |
| Brand Name: | Lien |
| Certification: | FCC, CE, ROHS |
| Model Number: | LKS-8379 |
| Minimum Order Quantity: | 10 UNITS |
|---|---|
| Price: | $ |
| Packaging Details: | Strong Case |
| Delivery Time: | 5-6 weeks |
| Payment Terms: | TT |
| Supply Ability: | 5000 units per month |

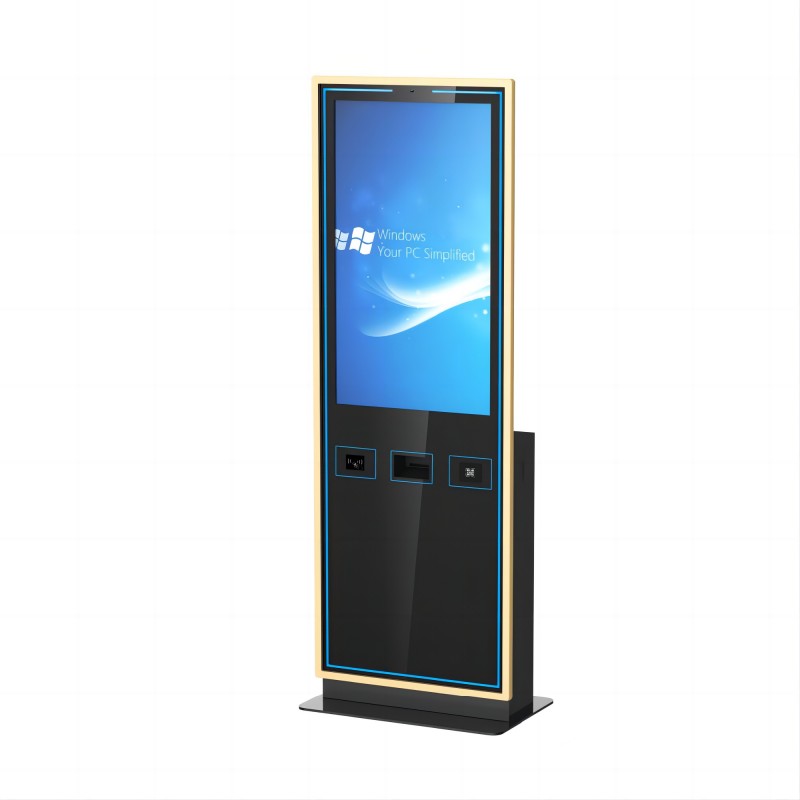

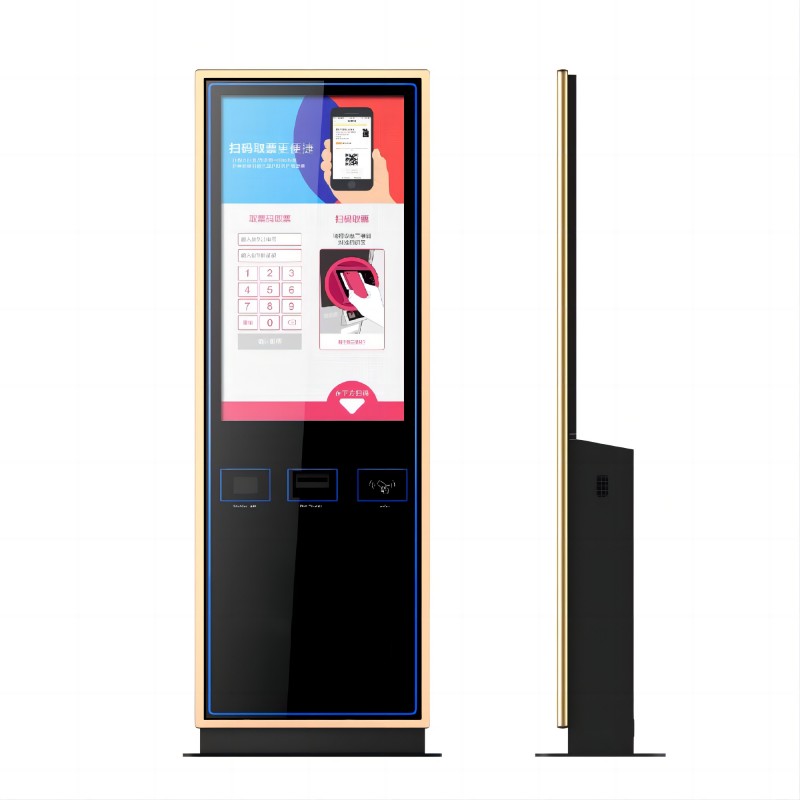

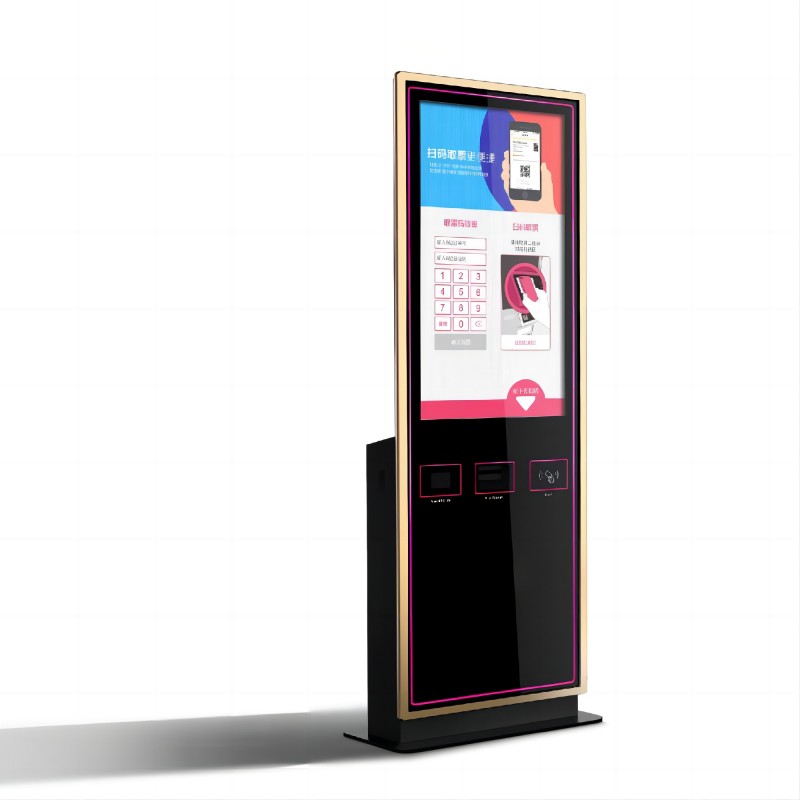

The Touch Screen kiosks Theater ticket vending kiosk provide users with a quick and convenient way to purchase tickets. With an intuitive touchscreen interface, users can easily select a movie or show, view and select seats, and complete payments. Devices typically support multiple languages and multiple payment methods, including credit and debit cards and mobile payments, making them suitable for a variety of user groups.
Components | Details | |
PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
CPU | Intel Dual Core G2020 | |
RAM | 2 GB | |
HDD | 500G | |
Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card | |
PC Power Supply | HUNTKEY/Great Wall | |
LCD monitor | Screen Size | 22 / 17 inch ( optional from 8inch to 65inch) |
Brightness | 250cd/m2 | |
angle | horizontal 100°above;Vertical 80°above | |
Contrast | 1000:1 | |
Backlight tube life | more than 40,000hours | |
Max. resolution | 1280×1024 | |
Touch screen | Screen Size | inch Diagonal ( optional from 8inch to 65inch) |
Resolution | 4096x4096 | |
High Transparent, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
Receipt / Ticket Printer | Interface | High Speed USB |
Resolution | 4800*1200 maximum | |
Printing speed | 4.8 ipm | |
Width | 58 /80 /112 mm | |
Length | Customizable | |
| Resolution | 1280*720 |
Pixel | 8000000 | |
Adaptive Resolution | 1280*720 | |
Interface | USB 2.0 | |
Driver | No | |
NFC card reader | Status Display | LED indicator to show the power or communication status |
Card Type | ISO14443TypeA of Contact-less IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight | |
Type | Support ISO14443 | |
2D scanner | Readable Code | CMOS |
Resolution | 752*480 | |
Readable Code | 2D PDF417, QR Code(Model 1/2), Data Matrix(ECC200, ECC000, 050, 080, 100,140), Aztec, Maxi-code, etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Data-bar, etc | |
Approval | FCC Part15 Class B, CE EMC Class B | |
Work Voltage | DC 5V (4.5-5.5V) | |
Interface | RS232, USB | |
Wireless module | WLAN module | With industrious antenna exposure |
Motorized card reader | Card type | Support Mag card, IC Card, RF Card, Mi-fare S50,S70,UL Card |
Magnetic Head Life | 500,000/min | |
IC Card Touch Port | 300,000/min | |
Speakers | Features | Dual channel amplified speakers for Stereo ,8Ω 5W |
Digital Power Supply | AC input voltage range | 100~240VAC |
Frequency | 50Hz to 60Hz | |
AC input voltage range | 100~240VAC | |
Frequency | 50Hz to 60Hz | |
Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
Operation System | Windows 7 or Windows XP operation system without license | |
Free standing Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Anti-rust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
Package | Security Packing method with bubble foam and wooden case | |
1.Touch screen
With its intuitive operation mode and multi-functional features, the touch screen brings users a very convenient and efficient interactive experience. Users can operate with simple touch and gestures, without complicated input devices or learning costs. Its multi-touch function not only supports basic tap and swipe operations, but also enables more advanced gesture control, providing users with a more flexible and rich user experience.
2.NFC card reader
With its security, convenience and versatility, NFC card readers play an important role in areas such as payment, access control and authentication, significantly enhancing the user experience.
3.Ticket Printer
With its efficient, reliable and versatile features, ticket printers provide a convenient solution for various ticketing management, significantly enhancing the overall experience of users and operators.

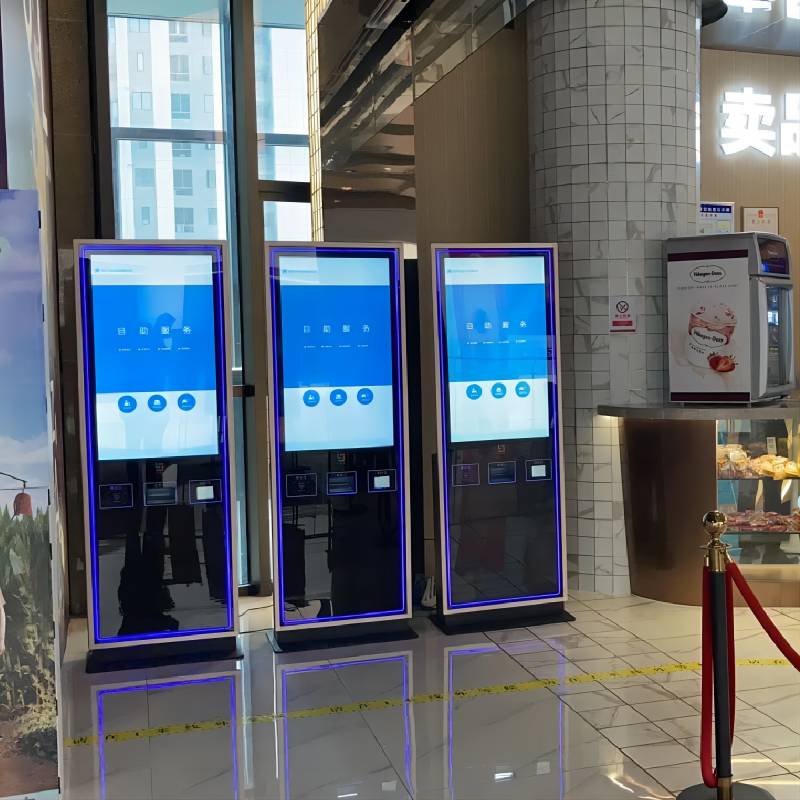

MachinesThe Touch Screen kiosks Theater ticket vending kiosk are used in cinemas and theatres, tourist attractions, exhibitions and world-Expo, etc. Our machines play an important role in various venues, improving user experience and operational efficiency.
1.By reducing reliance on manual ticket Windows, operating costs are reduced and employees are able to shift their efforts to other critical tasks such as customer service and field management.
2.Provide real-time ticketing information and seat availability to ensure audiences get the latest ticket purchase data. Seamless connection with ticket management system to ensure instant updates of ticket and seat information.
3.Support electronic bills, significantly reduce the use of paper bills, in line with environmental requirements. Electronic bills not only reduce paper consumption, but also reduce the waste of resources caused by printing and transportation. In addition, electronic notes are easy to store and manage, reducing the need for physical notes, helping to reduce business operating costs and reduce the burden on the environment.
1.Choose devices that support multiple functions, such as self-service ticket purchase, ticket pickup, seat selection and payment, and ensure that they integrate seamlessly with existing ticket management systems and POS systems to avoid system compatibility issues.
2.Make sure the touch screen is responsive and prints fast to enhance the user experience. Reduce maintenance and replacement costs by choosing durable equipment that can be used frequently in high-traffic environments.
3.Choose equipment that supports electronic receipts to reduce paper ticket use and comply with environmental requirements, while considering the energy efficiency of the equipment, and choose energy-efficient equipment to reduce operating costs and environmental impact.
Q: How to ship the kiosk?
A: Air and sea shipping are optional, and sea shipping is recommended for bulk orders. All kiosks should be shipped in a standing position and must not be put down.
Q: Are you a manufacturing or trading company?
A: We are an OEM/ODM kiosk manufacturer
Q: What payment methods does your company accept?
A: We accept most payment methods, but mainly accept T/T. L/C, Western Union, PayPal and Money Gram.
Q: How long is your delivery time?
A: It depends on the order quantity, about 5 weeks for samples and about 4 weeks for less than 100 units.
Q: What is the warranty period of your kiosk?
A: 12 months from the date of shipment, for components, free repair or replacement, shipped by sender.
Q: Can you customize the kiosk?
A: Yes, we always customize the product according to your requirements. Including redesigning the kiosk appearance, printing your company logo, choosing specific colors, etc. OEM or ODM is available.
Q: What is the MOQ?
A: The MOQ is 1 unit, we accept samples
