Product Details:
| Place of Origin: | kiosk manufacturer |
| Brand Name: | Lien |
| Certification: | FCC, CE, ROHS |
| Model Number: | LKS-8379 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 UNITS |
|---|---|
| Price: | $ |
| Packaging Details: | Strong Case |
| Delivery Time: | 5-6 weeks |
| Payment Terms: | TT |
| Supply Ability: | 5000 units per month |

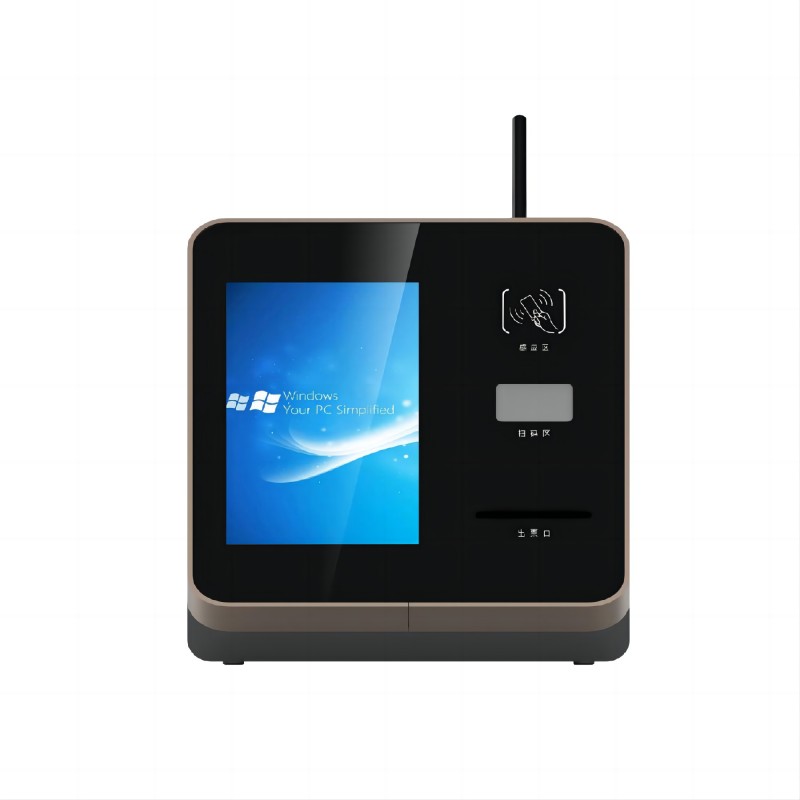

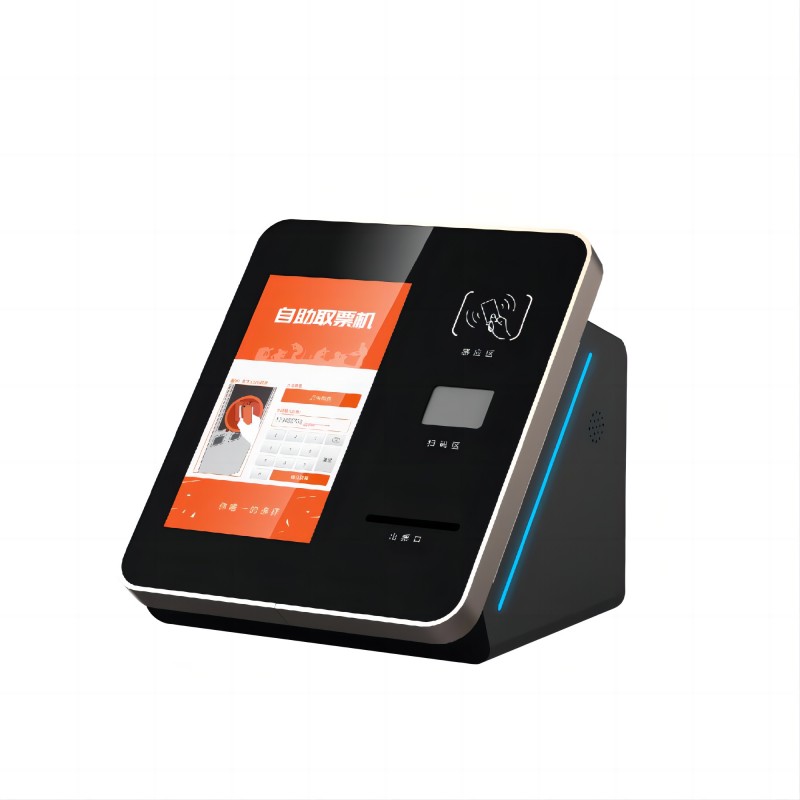

The Self Service Kiosk Machine Desktop Ticketing With Bar-code Scanner is a desktop device designed for self-service ticketing processing, equipped with barcode scanning capabilities, designed to provide efficient and convenient ticketing and payment solutions. The device is widely used in retail and service industries such as cinemas, event venues and public transport. Customers can select, purchase and print their own tickets through an intuitive touch screen interface, and use barcode scanners to quickly and accurately read ticket information or product barcodes. Its compact desktop design makes it suitable for a variety of Spaces, providing a convenient self-service experience while reducing the need for human service.
Components | Details | |
PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
CPU | Intel Dual Core G2020 | |
RAM | 2 GB | |
HDD | 500G | |
Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card | |
PC Power Supply | HUNTKEY/Great Wall | |
LCD monitor | Screen Size | 22 / 17 inch ( optional from 8inch to 65inch) |
Brightness | 250cd/m2 | |
angle | horizontal 100°above;Vertical 80°above | |
Contrast | 1000:1 | |
Backlight tube life | more than 40,000hours | |
Max. resolution | 1280×1024 | |
Touch screen | Screen Size | inch Diagonal ( optional from 8inch to 65inch) |
Resolution | 4096x4096 | |
High Transparent, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
Receipt / Ticket Printer | Interface | High Speed USB |
Resolution | 4800*1200 maximum | |
Printing speed | 4.8 ipm | |
Width | 58 /80 /112 mm | |
Length | Customizable | |
| Resolution | 1280*720 |
Pixel | 8000000 | |
Adaptive Resolution | 1280*720 | |
Interface | USB 2.0 | |
Driver | No | |
NFC card reader | Status Display | LED indicator to show the power or communication status |
Card Type | ISO14443TypeA of Contact-less IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight | |
Type | Support ISO14443 | |
2D scanner | Readable Code | CMOS |
Resolution | 752*480 | |
Readable Code | 2D PDF417, QR Code(Model 1/2), Data Matrix(ECC200, ECC000, 050, 080, 100,140), Aztec, Maxi-code, etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Data-bar, etc | |
Approval | FCC Part15 Class B, CE EMC Class B | |
Work Voltage | DC 5V (4.5-5.5V) | |
Interface | RS232, USB | |
Wireless module | WLAN module | With industrious antenna exposure |
Motorized card reader | Card type | Support Mag card, IC Card, RF Card, Mi-fare S50,S70,UL Card |
Magnetic Head Life | 500,000/min | |
IC Card Touch Port | 300,000/min | |
Speakers | Features | Dual channel amplified speakers for Stereo ,8Ω 5W |
Digital Power Supply | AC input voltage range | 100~240VAC |
Frequency | 50Hz to 60Hz | |
AC input voltage range | 100~240VAC | |
Frequency | 50Hz to 60Hz | |
Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
Operation System | Windows 7 or Windows XP operation system without license | |
Free standing Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Anti-rust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
Package | Security Packing method with bubble foam and wooden case | |
1.Barcode scanning function:
Features: Equipped with high performance bar code scanner, can quickly and accurately read ticket information or product bar code.
Advantages: Reduced manual errors, improved scanning speed and accuracy, and simplified ticket purchase and payment processes.
2.Self-service interface:
Features: Equipped with intuitive touch screen operation interface, providing concise operation guidance and real-time feedback.
Advantages: Improve the convenience of operation, reduce customer learning costs and misoperation, improve the overall checkout and ticket purchase speed.
3.Various payment methods:
Features: Support cash, credit card, debit card and electronic payment (such as mobile payment) and other payment options.
Advantages: to meet the payment needs of different customers, provide flexible payment methods, improve the convenience of payment and customer satisfaction.
4.Compact design:
Features: Desktop design, suitable for a variety of Spaces, saving the installation and use of space.
Advantages: The equipment is flexible and easy to install, suitable for small locations or space limited environments, providing an efficient self-service solution.
1.Cinema
Application: Set up in the ticketing area or entrance for customers to purchase and print movie tickets by themselves.
Advantages: Provide convenient ticket purchase service, reduce queuing time, improve the viewing experience of customers, and reduce the burden of ticketing staff.
2.Event venue
Application: Deployed in concert, exhibition, sports events and other large-scale events ticket center or entrance.
Advantages: Improve the efficiency of ticket purchase, reduce the need for manual service, support quick scanning of electronic tickets or paper tickets, and improve the overall service level of the event site.
3.Public transport
Application: Installed in subway stations, bus stations, train stations and other public transportation hubs, for self-service ticket purchase and recharge transportation cards.
Advantages: Provide convenient self-service ticket purchase and payment options, reduce passenger queuing time, support a variety of payment methods, and improve the efficiency of transportation services.
4.Museums and attractions
Application: Set up at the entrance or ticket office of museums, zoos, parks and other tourist attractions.
Advantages: Visitors can quickly purchase and print tickets, reducing queuing time and improving the tour experience while reducing the need for ticketing staff at attractions.
1.Compact design
Advantages: The desktop design is suitable for various Spaces, saving space for installation and use. The equipment is flexible and easy to install, especially suitable for small locations or space limited environments, providing an efficient self-service solution.
2.Efficient self ticketing
Advantage: Allows customers to select, purchase and print a variety of tickets without human intervention. The queuing time is greatly reduced, the efficiency of ticket purchase is improved, and the need for on-site manual service is reduced, and the operational efficiency is optimized.
3.Real-time data update
Advantages: The ability to update ticket information and payment status in real time and synchronize with the central management system. Provide accurate billing management and financial monitoring to help operators optimize management and operational efficiency.
4.User experience
Advantages: Intuitive and user-friendly design, so that customers can easily complete the ticket purchase and payment process. Improve the customer's operation convenience and satisfaction, enhance the user experience.
When purchasing a Self Service Kiosk Machine Desktop Ticketing With Bar-code Scanner, it is recommended to focus on its barcode scanning function and self-service interface to ensure fast, accurate ticket processing and an easy user experience. Choose devices that support a variety of payment methods to meet the payment needs of different customers. In addition, the equipment should have a compact design, suitable for a variety of space scenarios, and be able to update data in real time to optimize management and operational efficiency. Consider flexible applications and efficient self-service ticketing to improve operational efficiency and user satisfaction. To sum up, the convenience, efficiency and versatility of the equipment should be considered when purchasing to meet the needs of different business scenarios and reduce operating costs.
Q: How to ship the kiosk?
A: Air and sea shipping are optional, and sea shipping is recommended for bulk orders. All kiosks should be shipped in a standing position and must not be put down.
Q: Are you a manufacturing or trading company?
A: We are an OEM/ODM kiosk manufacturer
Q: What payment methods does your company accept?
A: We accept most payment methods, but mainly accept T/T. L/C, Western Union, PayPal and Money Gram.
Q: How long is your delivery time?
A: It depends on the order quantity, about 5 weeks for samples and about 4 weeks for less than 100 units.
Q: What is the warranty period of your kiosk?
A: 12 months from the date of shipment, for components, free repair or replacement, shipped by sender.
Q: Can you customize the kiosk?
A: Yes, we always customize the product according to your requirements. Including redesigning the kiosk appearance, printing your company logo, choosing specific colors, etc. OEM or ODM is available.
Q: What is the MOQ?
A: The MOQ is 1 unit, we accept samples
