Product Details:
Place of Origin: | kiosk manufacturer |
Brand Name: | Lien |
Certification: | FCC, CE, ROHS |
Model Number: | LKS-8379 |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 UNITS |
---|---|
Price: | $ |
Packaging Details: | Strong Case |
Delivery Time: | 5-6 weeks |
Payment Terms: | TT |
Supply Ability: | 5000 units per month |

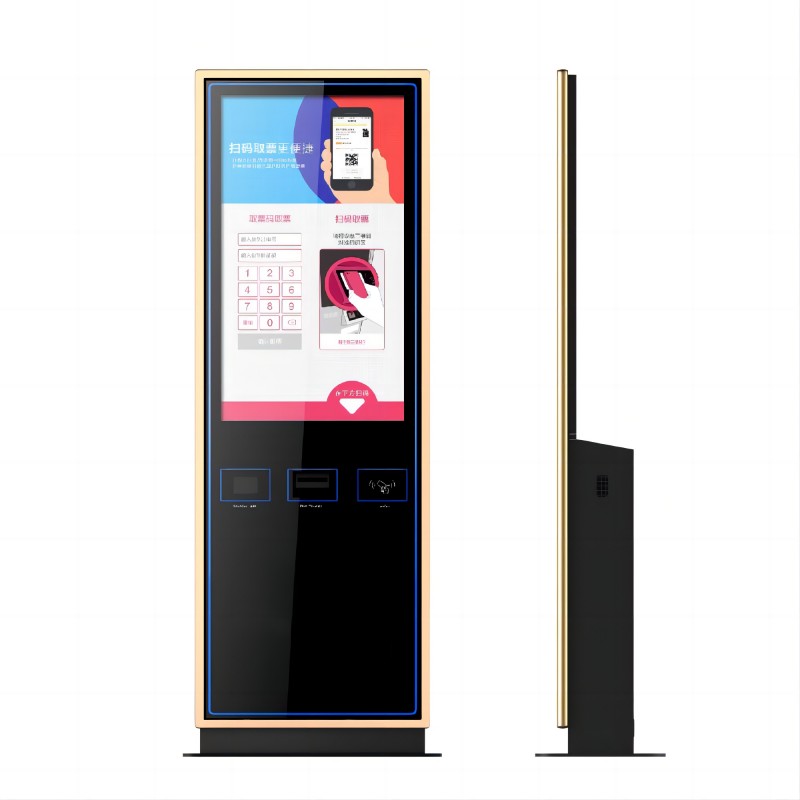

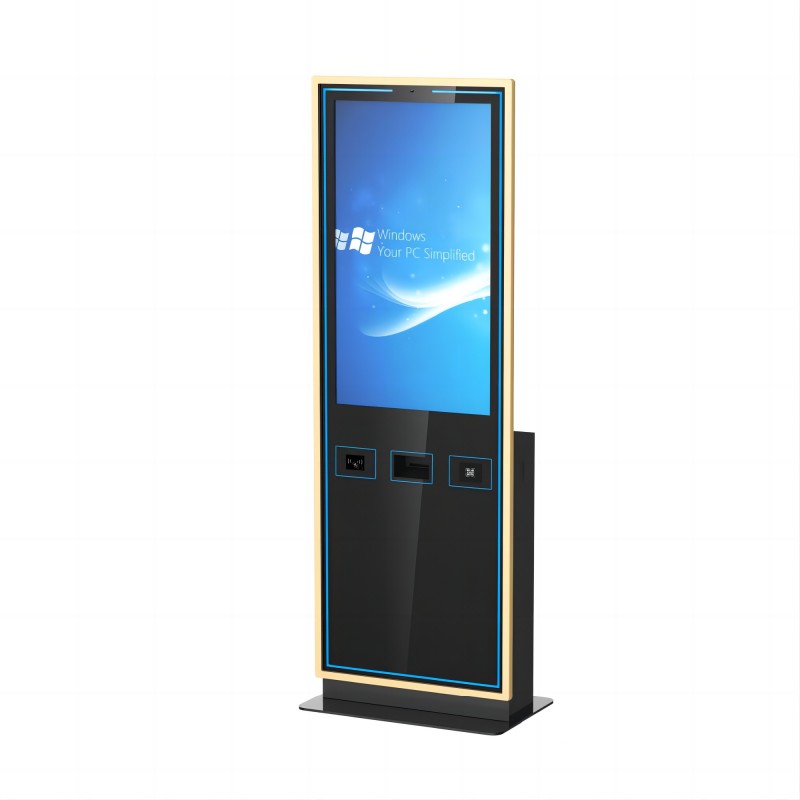

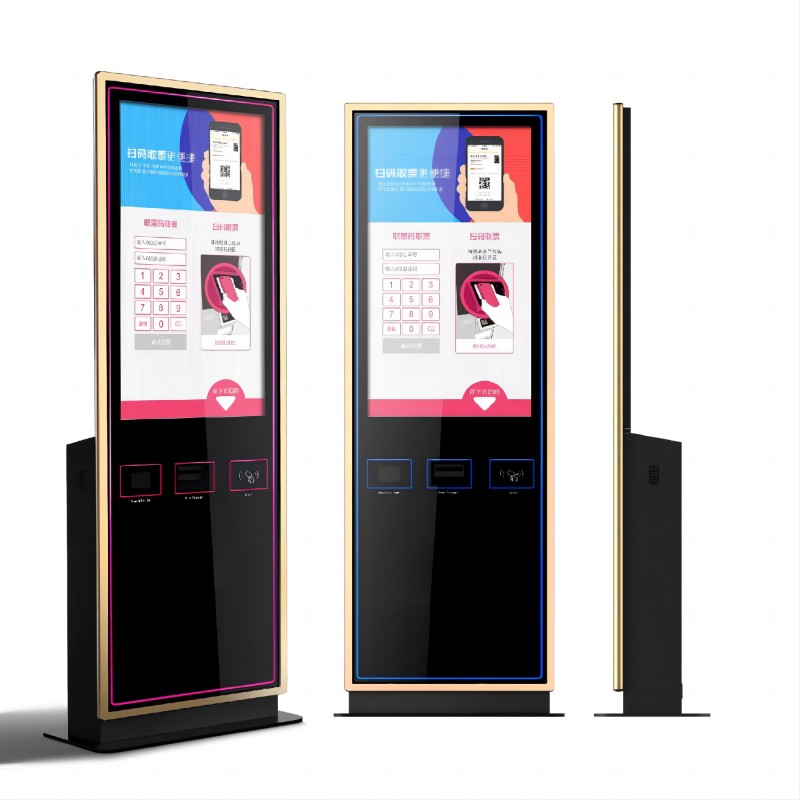

The Self Service Kiosk Machine Ticketing With POS Terminal is a device that integrates a self-service ticketing system and a point of sale (POS) terminal, specifically designed to handle ticket sales and retail transactions. This device combines self-service and POS system functions to provide efficient and convenient ticketing and payment solutions.
Components | Details | |
PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
CPU | Intel Dual Core G2020 | |
RAM | 2 GB | |
HDD | 500G | |
Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card | |
PC Power Supply | HUNTKEY/Great Wall | |
LCD monitor | Screen Size | 22 / 17 inch ( optional from 8inch to 65inch) |
Brightness | 250cd/m2 | |
angle | horizontal 100°above;Vertical 80°above | |
Contrast | 1000:1 | |
Backlight tube life | more than 40,000hours | |
Max. resolution | 1280×1024 | |
Touch screen | Screen Size | inch Diagonal ( optional from 8inch to 65inch) |
Resolution | 4096x4096 | |
High Transparent, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
Receipt / Ticket Printer | Interface | High Speed USB |
Resolution | 4800*1200 maximum | |
Printing speed | 4.8 ipm | |
Width | 58 /80 /112 mm | |
Length | Customizable | |
| Resolution | 1280*720 |
Pixel | 8000000 | |
Adaptive Resolution | 1280*720 | |
Interface | USB 2.0 | |
Driver | No | |
NFC card reader | Status Display | LED indicator to show the power or communication status |
Card Type | ISO14443TypeA of Contact-less IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight | |
Type | Support ISO14443 | |
2D scanner | Readable Code | CMOS |
Resolution | 752*480 | |
Readable Code | 2D PDF417, QR Code(Model 1/2), Data Matrix(ECC200, ECC000, 050, 080, 100,140), Aztec, Maxi-code, etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Data-bar, etc | |
Approval | FCC Part15 Class B, CE EMC Class B | |
Work Voltage | DC 5V (4.5-5.5V) | |
Interface | RS232, USB | |
Wireless module | WLAN module | With industrious antenna exposure |
Motorized card reader | Card type | Support Mag card, IC Card, RF Card, Mi-fare S50,S70,UL Card |
Magnetic Head Life | 500,000/min | |
IC Card Touch Port | 300,000/min | |
Speakers | Features | Dual channel amplified speakers for Stereo ,8Ω 5W |
Digital Power Supply | AC input voltage range | 100~240VAC |
Frequency | 50Hz to 60Hz | |
AC input voltage range | 100~240VAC | |
Frequency | 50Hz to 60Hz | |
Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
Operation System | Windows 7 or Windows XP operation system without license | |
Free standing Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Anti-rust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
Package | Security Packing method with bubble foam and wooden case |
1.Self-service ticket processing:
Features: Customers can select, purchase and print a variety of tickets, including movie tickets, event tickets and public transport tickets, via the intuitive touch screen.
Advantage: Provides a quick ticket purchase experience and significantly reduces waiting time in line. Customers can complete the ticket purchase process at their own pace, thus reducing the reliance on manual service and improving the overall service efficiency.
2.Integrated POS system:
Features: The equipment is equipped with advanced POS terminals to support commodity sales, payment processing and receipt printing functions.
Advantages: Seamless integration of ticketing and retail transactions, simplifying the operation process. This feature enables the device to handle not only ticketing, but also merchandise sales, increasing operational flexibility and overall work efficiency.
3.Various payment methods:
Features: Support for a variety of payment options including cash, credit and debit cards, and electronic payments (such as mobile payments).
Advantages: Provide a variety of payment methods to meet the payment needs of different customers. No matter which payment method customers prefer, transactions can be completed smoothly, enhancing the flexibility and convenience of payment.
1.Cinema:
Application: Deploy the device in the ticket area of a movie theater, allowing customers to purchase movie tickets and complete payment.
Advantages: Provide convenient ticket purchase experience, reduce customer queuing time. At the same time, the integrated POS system can also handle the sale of meals and other goods, enhancing the overall customer experience.
2.Event venue:
Application: Set up the device at the entrance or ticket center of large-scale events such as concerts and exhibitions to process ticket sales and payments.
Advantages: Improve the efficiency of ticket sales, reduce the need for manual services, while supporting the sale of on-site goods, and enhance the service quality and customer satisfaction at the event site.
3.Public Transport:
Application: The device is installed at public transportation hubs such as subway stations and bus stops for selling tickets, recharging transportation cards and processing related payments.
Advantages: Provides convenient self-service ticket purchase and payment functions, significantly reducing passenger waiting time in line. The device supports multiple payment methods, improving the efficiency of public transport services and customer convenience.
1.Improve efficiency:
Advantage: Through the self-service function, customers can quickly complete ticket purchase and payment, reducing waiting time in line. The integrated POS system can also handle the sale of goods, improving overall operational efficiency.
2.Reduce labor requirements:
Advantages: Automated ticket processing reduces reliance on human services, reduces operating costs and reduces the use of human resources.
3.Various payment methods:
Advantages: Support cash, credit card, debit card and electronic payment and other payment methods to meet the payment needs of different customers, providing flexible payment options.
4.User friendly interface:
Advantages: Equipped with an intuitive touch screen interface, providing clear operation guidance and real-time feedback, simplifying the operation process and reducing customer learning costs and operating errors.
5.Real-time data update:
Advantages: Real-time synchronization with the central management system to provide accurate ticket and sales data. This helps optimize inventory management and financial monitoring, improving the accuracy of operational decisions.
When purchasing Self Service Kiosk Machine Ticketing With POS Terminal, it is recommended to consider the following factors: First, ensure that the device provides efficient self-service ticket processing function, which can significantly reduce the queuing time of customers and improve the overall ticket purchase efficiency. Second, choose devices that support multiple payment methods, including cash, credit and debit cards, and electronic payments, to meet the payment needs of different customers. An intuitive touch screen interface and real-time data updates are also key features that streamline operations, reduce errors, and provide accurate sales data. The integrated POS system can handle additional retail sales and increase the value of use of the equipment. When these factors are taken together, they ensure that equipment performs well in enhancing the customer experience, optimizing operations management, and reducing the need for manual service.
Q: How to ship the kiosk?
A: Air and sea shipping are optional, and sea shipping is recommended for bulk orders. All kiosks should be shipped in a standing position and must not be put down.
Q: Are you a manufacturing or trading company?
A: We are an OEM/ODM kiosk manufacturer
Q: What payment methods does your company accept?
A: We accept most payment methods, but mainly accept T/T. L/C, Western Union, PayPal and Money Gram.
Q: How long is your delivery time?
A: It depends on the order quantity, about 5 weeks for samples and about 4 weeks for less than 100 units.
Q: What is the warranty period of your kiosk?
A: 12 months from the date of shipment, for components, free repair or replacement, shipped by sender.
Q: Can you customize the kiosk?
A: Yes, we always customize the product according to your requirements. Including redesigning the kiosk appearance, printing your company logo, choosing specific colors, etc. OEM or ODM is available.
Q: What is the MOQ?
A: The MOQ is 1 unit, we accept samples
