Place of Origin: | Kiosk manufacturer |
Brand Name: | LKS |
Certification: | FCC, CE, ROHS |
Model Number: | LKS-8379 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | $ |
Packaging Details: | Wooden Case |
Delivery Time: | 5-6 weeks |
Payment Terms: | TT |
Supply Ability: | 5000 units per month |

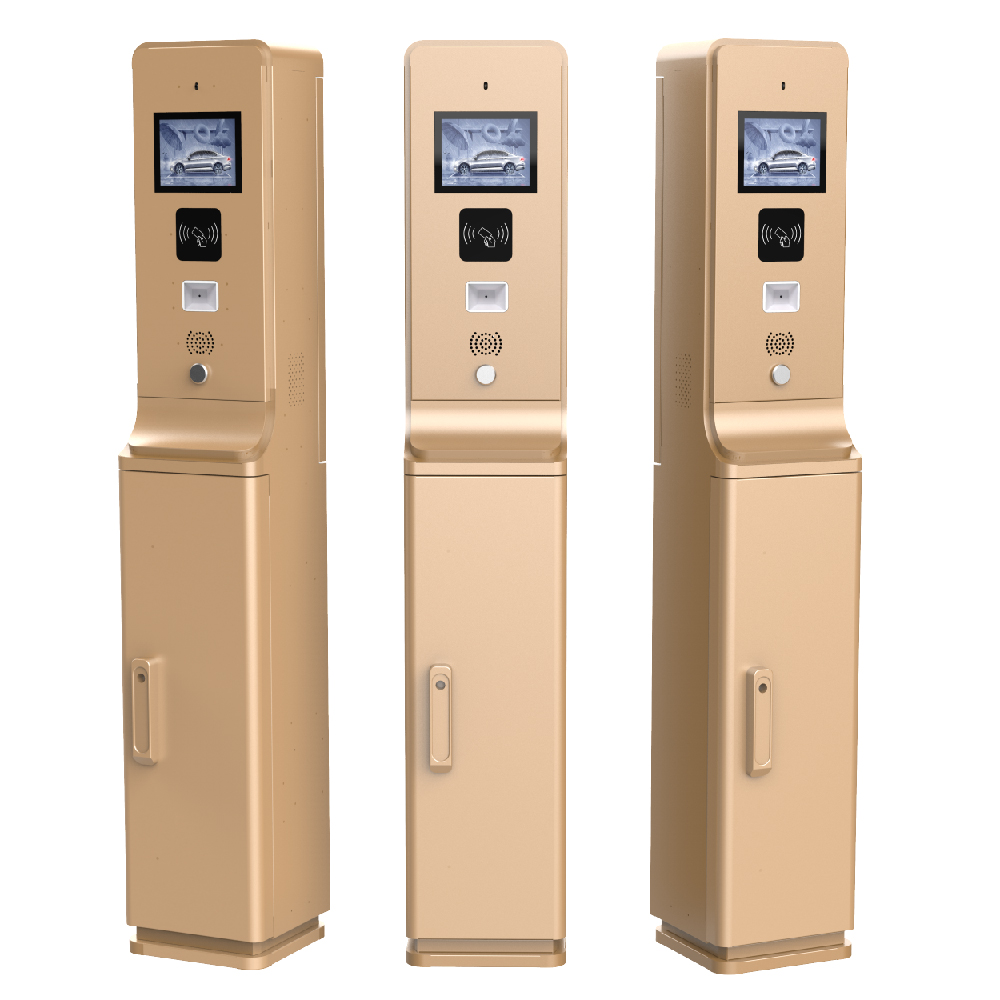

Outdoor kiosk parking offer several advantages for both park visitors and park management, enhancing the overall experience and operational efficiency of parks.kiosk parking systems serve as valuable tools in enhancing visitor experiences, promoting environmental stewardship, generating revenue, and improving overall park management efficiency. They contribute to a positive and sustainable park experience for visitors while supporting the conservation and preservation goals of parks and natural areas.
Components | Details | |
PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 | |
RAM | 2GB /4 GB / 8GB | |
HDD | 500G | |
Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card | |
PC Power Supply | HUNTKEY/Great Wall | |
LCD monitor | Screen Size | 15inch |
Brightness | 250cd/m2 | |
angle | horizontal 100°above;Vertical 80°above | |
Contrast | 1000:1 | |
Backlight tube life | more than 40,000hours | |
Max. resolution | 1280×1024 | |
Touch screen | Screen Size | 15inch Diagonal ( optional from 8inch to 65inch) |
Resolution | 4096x4096 | |
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
Bank/Credit Card Reader | Interface | RS232 |
Card Type | Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card | |
Power Voltage | DC 24V±5% | |
Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal | |
Epson receipt thermal printer | Autocutter | included |
Technology | Thermal printing | |
Paper width | 80mm | |
Printing speed | 150mm/s | |
Data buffer | 4KB | |
Interface | RS232 ,USB | |
UPS | Input voltage | 145-290va |
Output voltage | 200-255va | |
Max time for supplying a single PC | 3~20minutes (for single PC) | |
Digital Power Supply | AC input voltage range | 100~240VAC |
Frequency | 50Hz to 60Hz | |
AC input voltage range | 100~240VAC | |
Frequency | 50Hz to 60Hz | |
Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
Operation System | Windows 7 or Windows XP operation system without license | |
KIOSK Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
Packing | Security Packing method with bubble foam and wooden case |
1. Visitor Services
Offer information on park facilities such as restrooms, picnic areas, visitor centers, and points of interest.
2. Fee Collection
Allow visitors to purchase entry permits, parking passes, camping permits, and other services, facilitating convenient fee collection.
3. Emergency Information
Display emergency contact numbers, safety guidelines, and procedures to ensure visitor safety and security.
The 6.5 inch outdoor digital kiosk for car parking have a diverse range of application scenarios, serving not only as a crucial component in parking lots and other vehicle parking areas, but also extending their use in businesses, transportation hubs, and corporate environments to offer seamless self-service experiences.
1. Reduces Congestion
Speeds up the exit process by providing quick payment solutions, reducing queues and traffic jams.
2. Cost-Effective
Lowers operational costs by minimizing the need for manual labor, making it a budget-friendly solution for parking lot management.
3. User Receipts
Provides printed or digital receipts, offering users proof of payment and enhancing record-keeping.
1. Warranty and Repairs
LKS will provide warranties for their kiosks, along with after-sales repair services for any hardware or software issues that arise within the warranty period.
2. Spare Parts Availability
LKS ensure the availability of spare parts for timely repairs and replacements, minimizing downtime for clients.
3. Customer Service Hotline
LKS provide a 24/7 customer service line or online support to address urgent issues and technical questions.
1. Competitive Pricing
We offer high-quality products at competitive prices, providing an excellent return on investment without compromising on performance or durability.
2. Proven Track Record
With years of experience in the industry and numerous satisfied clients, we have a solid reputation for delivering reliable kiosk solutions that drive business success.
3. Efficient After-Sales Service
Our dedicated after-sales team ensures prompt assistance, regular maintenance, and easy access to spare parts, reducing downtime and maximizing the lifespan of your kiosks.
1.Q: What are the main components of the kiosk hardware?
A: The main components include a touchscreen, card reader, receipt printer, QR code scanner, and sometimes a camera or biometric scanner.
2.Q: What maintenance does the hardware require?
A: Regular maintenance includes cleaning the screen and components, checking for software updates, and ensuring that all hardware parts are functioning properly.
3.Q: What should I do if the hardware is not working properly?
A: If the hardware is not working properly, try restarting the kiosk. If the problem persists, contact technical support for assistance.
4.Q: Does the kiosk hardware require specific environmental conditions?
A: The kiosk should be placed in a temperature-controlled environment, away from direct sunlight, and protected from moisture and dust.
5.Q: Can the kiosk hardware accept different types of payments?
A: Yes, the kiosk can accept a variety of payment methods, including credit/debit cards, mobile payments, and sometimes cash, depending on the model.
