| Place of Origin: | Kiosk manufacturer |
| Brand Name: | LKS |
| Certification: | FCC, CE, ROHS |
| Model Number: | LKS-8379 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $ |
| Packaging Details: | Wooden Case |
| Delivery Time: | 5-6 weeks |
| Payment Terms: | TT |
| Supply Ability: | 5000 units per month |

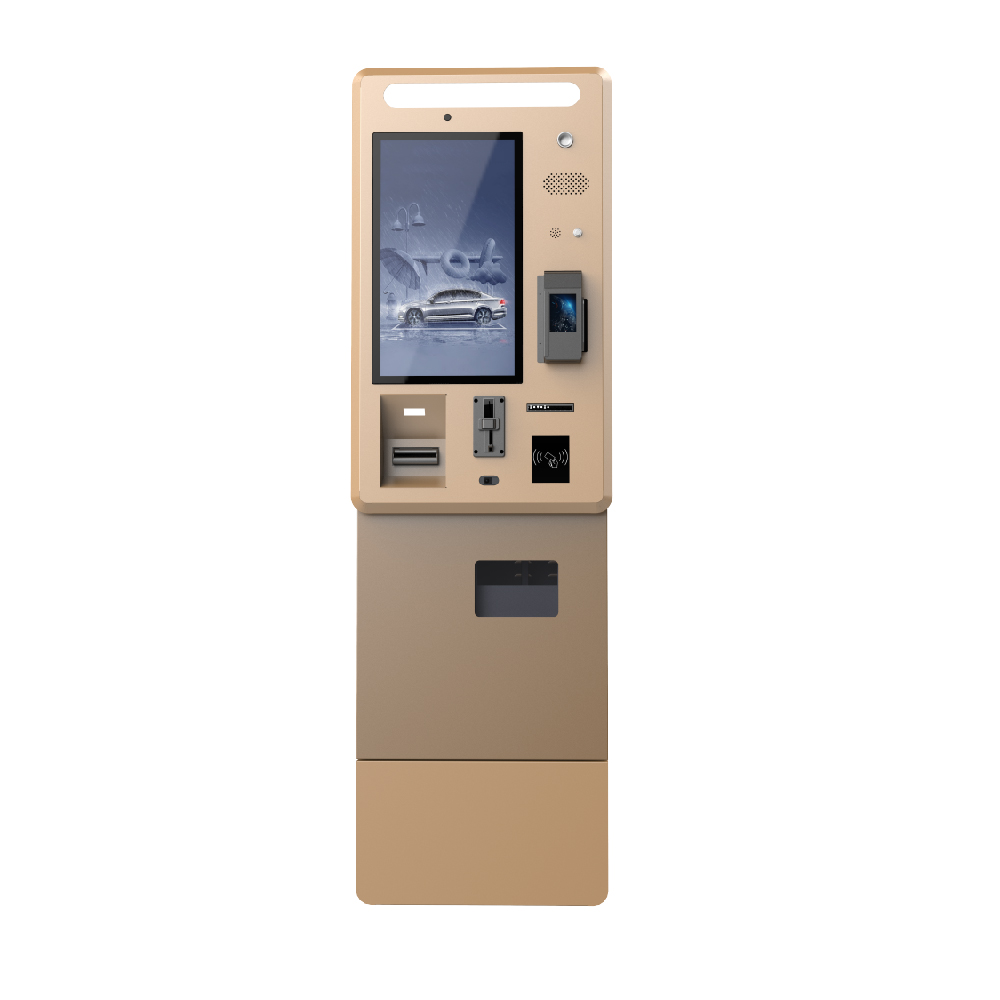

LKS outdoor kiosk is a durable, waterproof solution designed specifically for car parking payment needs. Built to withstand
harsh weather conditions, it offers secure, cashless payment options, including credit cards and QR code scanning. With its
user-friendly interface, the kiosk ensures fast and efficient transactions, while its rugged construction guarantees reliable performance in any environment, making it the ideal choice for outdoor parking management.
Components | Details | |
PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 | |
RAM | 2GB /4 GB / 8GB | |
HDD | 500G | |
Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card | |
PC Power Supply | HUNTKEY/Great Wall | |
LCD monitor | Screen Size | 15inch |
Brightness | 250cd/m2 | |
angle | horizontal 100°above;Vertical 80°above | |
Contrast | 1000:1 | |
Backlight tube life | more than 40,000hours | |
Max. resolution | 1280×1024 | |
Touch screen | Screen Size | 15inch Diagonal ( optional from 8inch to 65inch) |
Resolution | 4096x4096 | |
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
Bank/Credit Card Reader | Interface | RS232 |
Card Type | Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card | |
Power Voltage | DC 24V±5% | |
Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal | |
Epson receipt thermal printer | Autocutter | included |
Technology | Thermal printing | |
Paper width | 80mm | |
Printing speed | 150mm/s | |
Data buffer | 4KB | |
Interface | RS232 ,USB | |
UPS | Input voltage | 145-290va |
Output voltage | 200-255va | |
Max time for supplying a single PC | 3~20minutes (for single PC) | |
Digital Power Supply | AC input voltage range | 100~240VAC |
Frequency | 50Hz to 60Hz | |
AC input voltage range | 100~240VAC | |
Frequency | 50Hz to 60Hz | |
Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
Operation System | Windows 7 or Windows XP operation system without license | |
KIOSK Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
Packing | Security Packing method with bubble foam and wooden case | |
1. Information Display
Provide maps, trail guides, park rules, and regulations to help visitors navigate the park and understand its amenities.
2. Visitor Services
Offer information on park facilities such as restrooms, picnic areas, visitor centers, and points of interest.
3. Fee Collection
Allow visitors to purchase entry permits, parking passes, camping permits, and other services, facilitating convenient fee collection.
1. Fee Collection and Permits
Allow visitors to pay entry fees or purchase annual passes, facilitating revenue collection for park maintenance and conservation efforts.
2. Emergency and Safety Information
Display emergency contact numbers and procedures in case of accidents, incidents, or medical emergencies, provide safety tips and guidelines to promote visitor safety while enjoying park activities.
3. Environmental Education and Interpretation
Educate visitors about local wildlife, ecosystems, and conservation efforts within the park, feature interpretive panels or exhibits that highlight the park's natural and cultural history, enhancing visitor learning and appreciation.
1. 24/7 Availability
The kiosk operates round-the-clock, ensuring users can pay for parking anytime without relying on staff.
2. Multiple Payment Options
Offers various payment methods, including credit/debit cards and mobile payments, catering to different user preferences.
3. Cost-Effective: Lowers operational costs by minimizing the need for manual labor, making it a budget-friendly solution for parking lot management.
1. Installation and Setup: LKS provide on-site installation services, ensuring the kiosks are properly set up and integrated with the client’s systems.
2. Training: LKS often offer user and maintenance training, teaching staff how to operate the kiosks, troubleshoot common issues, and perform basic upkeep.
3. Warranty and Repairs: LKS provide 1 year warranty for their kiosks, along with after-sales repair services for any hardware or software issues that arise within the warranty period.
1. High-Quality and Durable Products: Our outdoor kiosks are built to withstand harsh weather conditions, ensuring long-lasting performance with robust materials and reliable technology.
2. Customizable Solutions: We offer tailor-made kiosk designs to meet your specific needs, including size, payment options, and branding, ensuring the kiosks seamlessly integrate with your business.
3. Cutting-Edge Technology: Equipped with the latest technology, our kiosks offer multiple payment methods, remote monitoring, and advanced security features, providing both convenience and peace of mind.
4. Expert Technical Support: With comprehensive installation, training, and ongoing technical support, we are committed to ensuring your kiosks operate smoothly and efficiently at all times.
1.Q: What are the main components of the kiosk hardware?
A: The main components include a touchscreen, card reader, receipt printer, QR code scanner, and sometimes a camera or biometric scanner.
2.Q: What maintenance does the hardware require?
A: Regular maintenance includes cleaning the screen and components, checking for software updates, and ensuring that all hardware parts are functioning properly.
3.Q: What should I do if the hardware is not working properly?
A: If the hardware is not working properly, try restarting the kiosk. If the problem persists, contact technical support for assistance.
4.Q: Does the kiosk hardware require specific environmental conditions?
A: The kiosk should be placed in a temperature-controlled environment, away from direct sunlight, and protected from moisture and dust.
5.Q: Can the kiosk hardware accept different types of payments?
A: Yes, the kiosk can accept a variety of payment methods, including credit/debit cards, mobile payments, and sometimes cash, depending on the model.
