Product Details:
| Place of Origin: | kiosk manufacturer |
| Brand Name: | Lien |
| Certification: | FCC, CE, ROHS |
| Model Number: | LKS-8379 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 UNITS |
|---|---|
| Price: | $ |
| Packaging Details: | Strong Case |
| Delivery Time: | 5-6 weeks |
| Payment Terms: | TT |
| Supply Ability: | 5000 units per month |

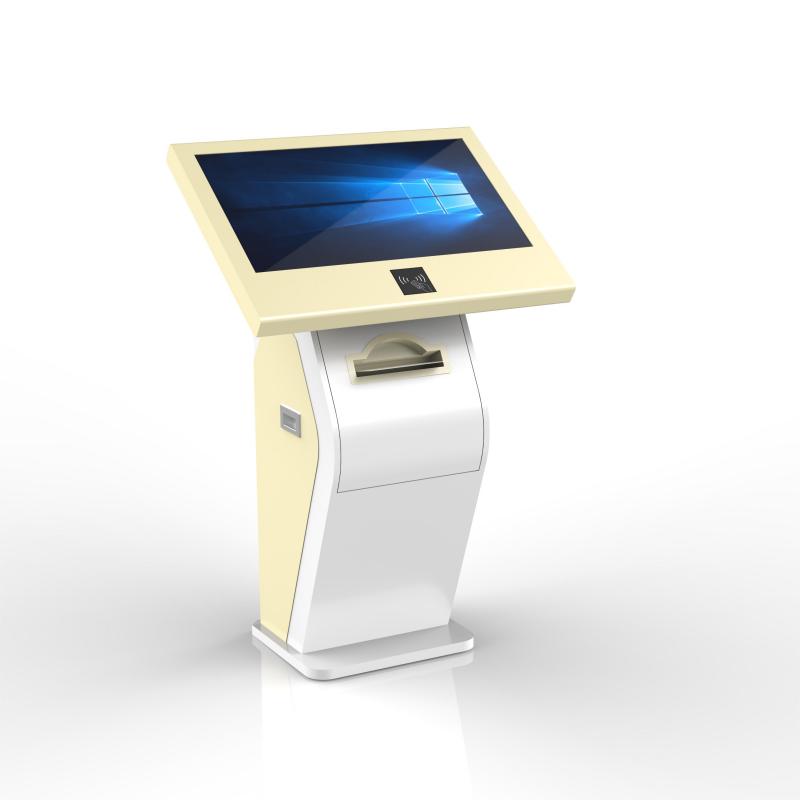

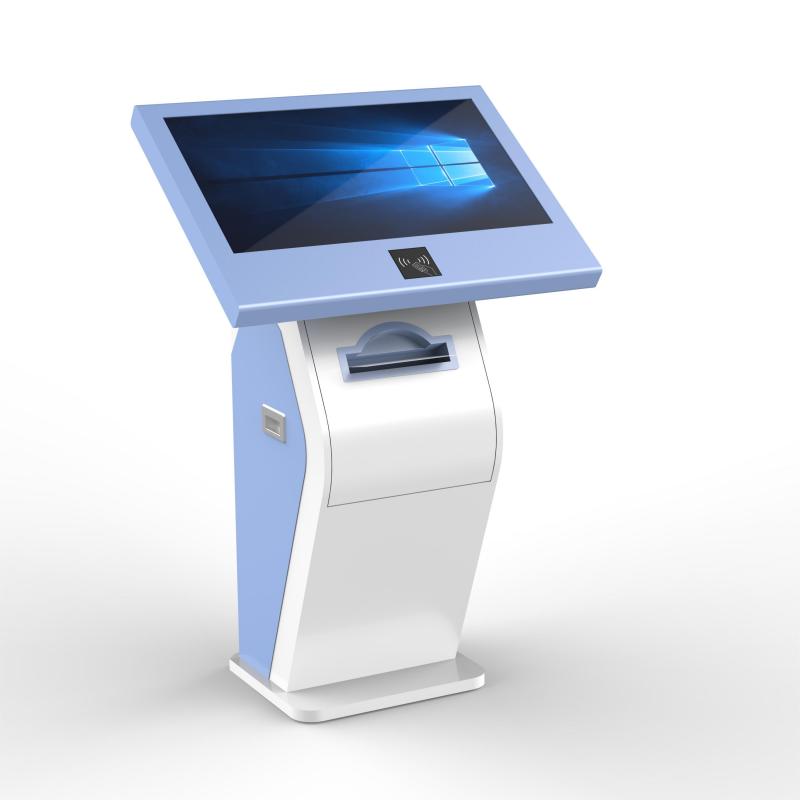

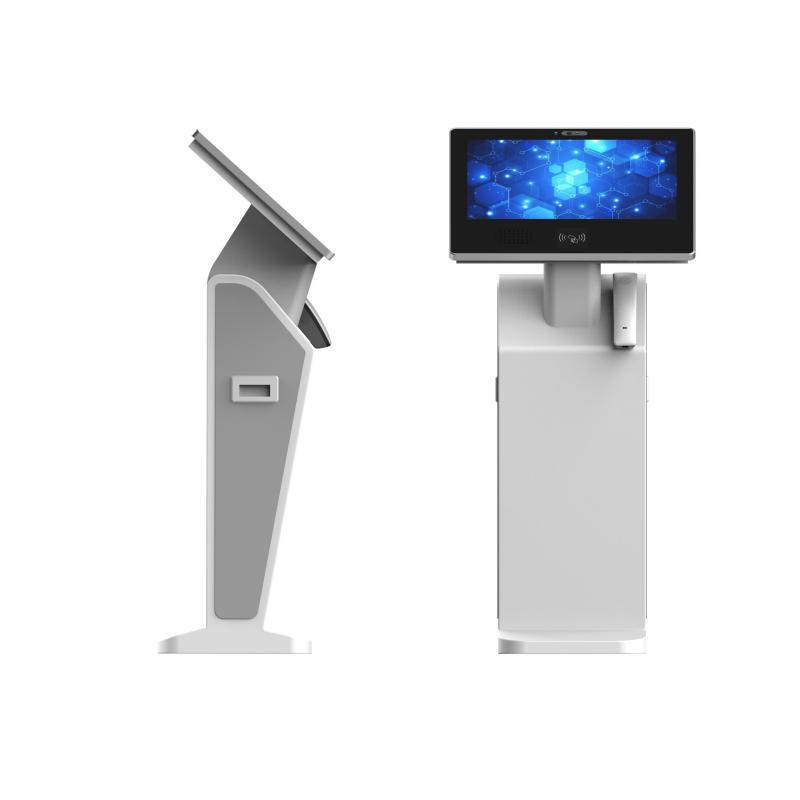

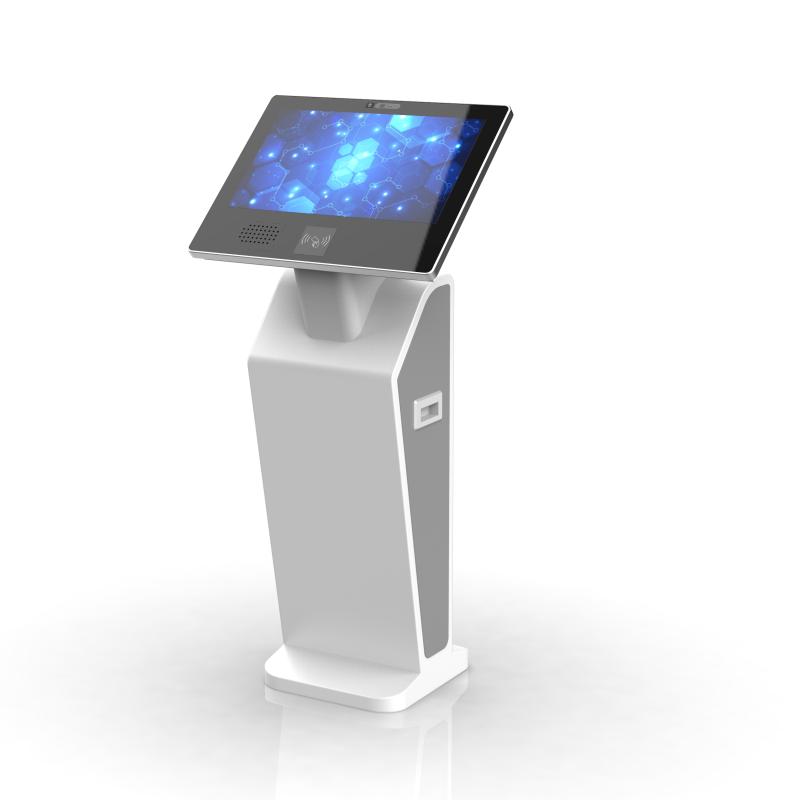

The Office Kiosk 27-inch touch screen visitor machine is a self-service terminal designed for modern offices, equipped with a large-size touch screen and providing an intuitive user interface. The device allows visitors to self-register, authenticate and print visitor badges, effectively managing visitor information. It supports multi-language functions and multiple document scanning, such as ID cards and passports, to ensure the efficiency and security of the registration process. In addition, the visitor machine can also provide conference room reservation information, company maps and important announcements, providing comprehensive services for visitors. This device optimizes the visitor management process, reduces the burden on front desk staff, and improves company security and visitor experience.
Part Name | Detailed Specifications |
22-inch touch screen | Display Active Matrix TFT LCD |
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; | |
Optimum Resolution: 1920x1080 | |
Brightness (typical): LCD panel: 250 nits; IntelliTouch: 225 nits, APR: 225 nits | |
Response Time - Total (typical): 5 ms | |
Viewing Angle (typical) Horizontal: Total ±85°; Vertical: Total ±80 | |
Contrast Ratio (typical): 1000:1 | |
Viewing Angle 170° (H) × 160° (V), wider than most 22" touch displays, retains color vividness and image integrity whether mounted in portrait or landscape orientation | |
16:9 aspect ratio and bright 250 nits panel for large screen sizes | |
LED Backlight enables it to fit into the most advanced ultra-thin designs while also reducing power consumption | |
Printer | High reliability thermal printer |
Print thickness: maximum 255g | |
Print width: adjustable width 45-82.5mm | |
Ticket paper positioning: black mark probe positioning | |
Print speed: 1mm/sec | |
Printer driver: windows/Linux/Max, | |
Resolution: 203DPI | |
Cutter life: 1.5 million normal cuts | |
Font: can be pre-installed as required, and can also be equipped with an expanded font library | |
Certification: CE/CCC,Rohs, | |
Industrial control host | Lien customized mini low-power industrial control motherboard (I7HGP) |
Core I7-3517, dual-core and four-thread | |
Integrated HD Graphic display core, support dynamic memory allocation (DVMT), support HDMI, VGA. Built-in dual-channel 24bit LVDS pin header, support dual-screen display | |
Kingston memory size ≥4GB; DDR3-1333 | |
Solid state drive 128G | |
Support Windows operating system | |
QR code | Light source: LED; |
Image collection features: automatic control, beep prompt; | |
Reading window: 55mm*44mm; | |
Reading direction: horizontal 360 degrees; | |
Reading distance: 20mm to the window mirror; | |
Reading speed: 100ms (average), supports continuous scanning; | |
Decoding capability: DM CODE, QR CODE, one-dimensional barcode, can read damaged symbols; | |
Strong resistance to light interference | |
Support interface: USB standard 2.0, plug and play. | |
ID card reader | |
Power supply module | Standard industrial-grade power supply standard, low noise |
Short circuit protection: Yes; | |
Heat dissipation: Natural cooling; | |
Power supply module Input voltage minimum range: 180-260 volts; | |
Efficiency: ≥70%; | |
Overvoltage protection: Yes; | |
Power switch: High efficiency and low temperature rise, continuous long-term input protection; High voltage output rated switching frequency; Built-in impact current protection | |
Voltage regulation accuracy: ≤10%. | |
Sound system | Channel ≥2.0; |
Frequency range minimum range 90Hz-20KHz; | |
Output power ≥5W; | |
Distortion ≤10%; | |
Signal-to-noise ratio ≥80dB; | |
Safe cabinet + base | Material: body cold-rolled steel plate + spraying process; chassis stainless steel wire drawing, round operation panel front tempered glass + side color sandblasting aluminum, etc.; Material thickness: ≥1.5mm; The overall structure design is beautiful and ergonomic, see the relevant text description for details |
Heat dissipation method: air-cooled heat dissipation device; | |
Protection: rust-proof, dust-proof, riot-proof, waterproof, anti-magnetic; | |
Use environment: temperature: 0℃—55℃, relative humidity <80% | |
Storage environment: temperature: -10℃—85℃, relative humidity <90% | |
Network | Network standard IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Error correction Transmission rate 150Mbps Error correction Transmission power 20dBm (maximum) Error correction Frequency range Single frequency (2.4-2.4835GHz) Error correction Working channel 1-13 Error correction Bus interface USB Antenna type External antenna Error correction Antenna gain 4dB |
Support 3G, wifi | |
Software system | Design UI according to customer needs, complete docking with customer visitor system, and provide efficient visitor self-service printing visitor card service solutions |
1. Museums: used to provide exhibit information, navigation, interactive experience and ticketing services.
2. Exhibitions and exhibition centers: help visitors obtain exhibition information, event schedules and booth navigation.
3. Company reception areas: used for visitor registration, appointment management and company information display.
4. Government agencies: provide self-service for visitors, such as information query and document submission.
5. Hospitals and medical institutions: used for patient registration, information query and appointment management.
6. Educational institutions: such as schools and universities, for visitor registration, campus navigation and information display.
7. Shopping malls: provide store information, promotions and navigation services.
8. Hotels and resorts: provide check-in, self-service and travel information for visitors.
9. Transportation hubs: such as airports and railway stations, for information query, navigation and service reservation.
1. Improve efficiency: automate visitor registration and information processing, reduce manual operation time, and improve reception efficiency.
2. Enhance user experience: provide intuitive touch screen interface and multi-language support, facilitate visitor self-service operation and information query, and improve user satisfaction.
3. Security management: visitor machine can record visitor information, issue visitor cards and manage access rights, improve the security and management level of the venue.
4. Reduce queuing time: self-service reduces visitor waiting time and optimizes the access process.
5. Data analysis: collect visitor data, which helps analyze visitor behavior, optimize services and improve management decisions.
6. Cost savings: reduce the need for manual reception staff and reduce labor costs.
7. Information display and promotion: visitor machine can display multimedia content, such as videos, pictures and text, for information publicity and event promotion.
8. Flexibility and scalability: can integrate other hardware and software, such as printers, RFID readers and appointment systems, to expand functions.
FAQS
1. What are the main functions of the visitor machine?
- The visitor machine is mainly used for visitor registration, information query, visitor card issuance, access rights management and multimedia information display.
2. Does the visitor machine support multi-language function?
- Yes, most visitor machines support multi-language function to provide convenient services for visitors with different language backgrounds.
3. Can the visitor machine be integrated with other devices?
- Yes, the visitor machine can integrate printers, RFID readers, cameras and other devices to expand functions, such as printing visitor cards, recording visitor information, etc.
4. How to update and manage the content on the visitor machine?
- The content of the visitor machine is usually updated remotely through the background management system, and the display content can be changed and managed at any time.
5. What is the process of visitor registration?
- Visitors usually enter basic information on the touch screen, such as name, purpose of visit, etc., and then the system will generate a visitor card or QR code for access
