Product Details:
Place of Origin: | kiosk manufacturer |
Brand Name: | Lien |
Certification: | FCC, CE, ROHS |
Model Number: | LKS-8379 |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 UNITS |
---|---|
Price: | $ |
Packaging Details: | Strong Case |
Delivery Time: | 5-6 weeks |
Payment Terms: | TT |
Supply Ability: | 5000 units per month |

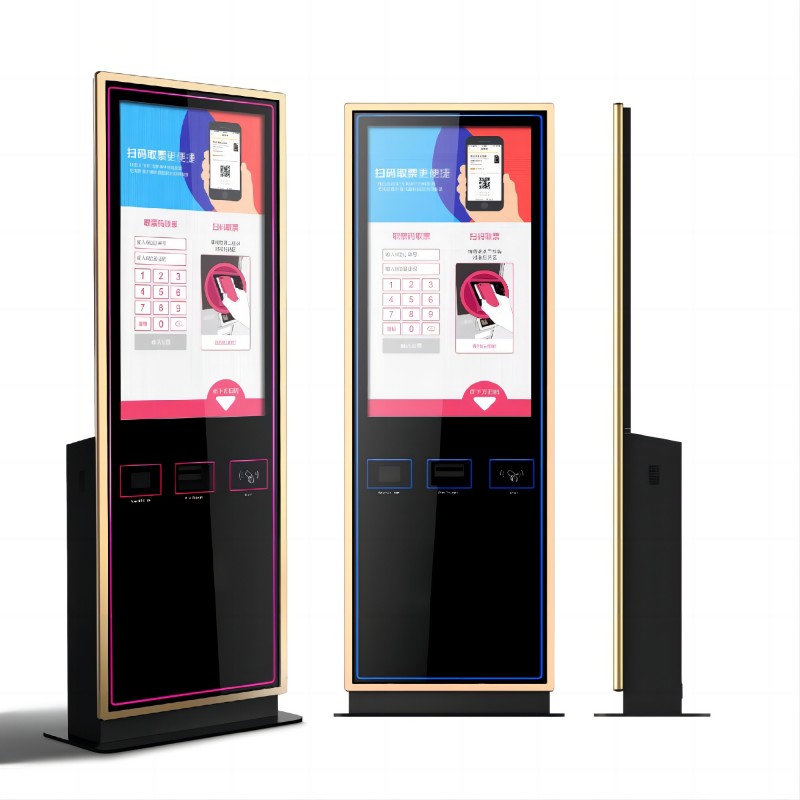

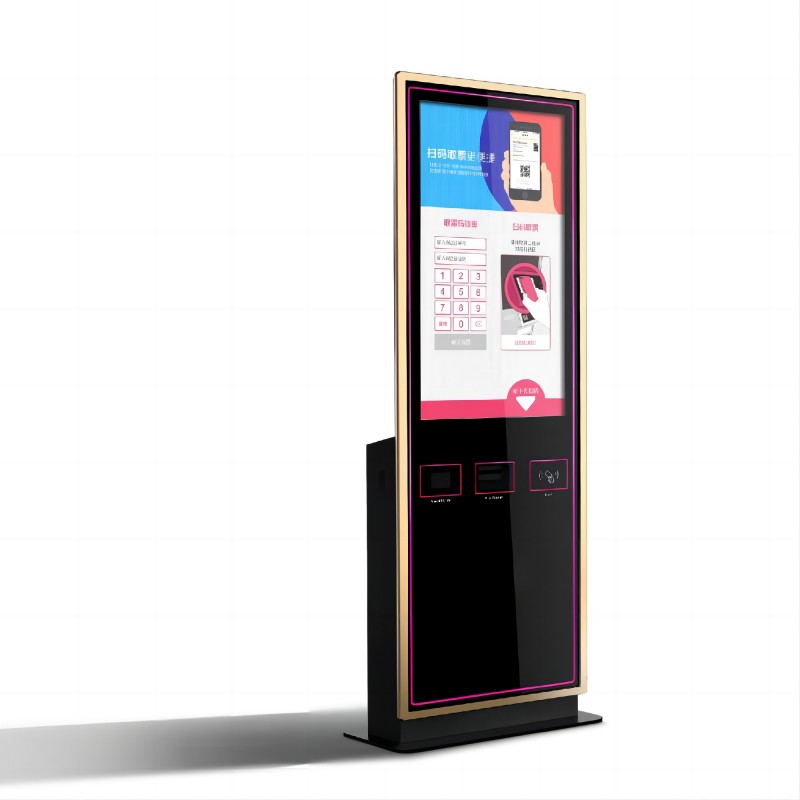

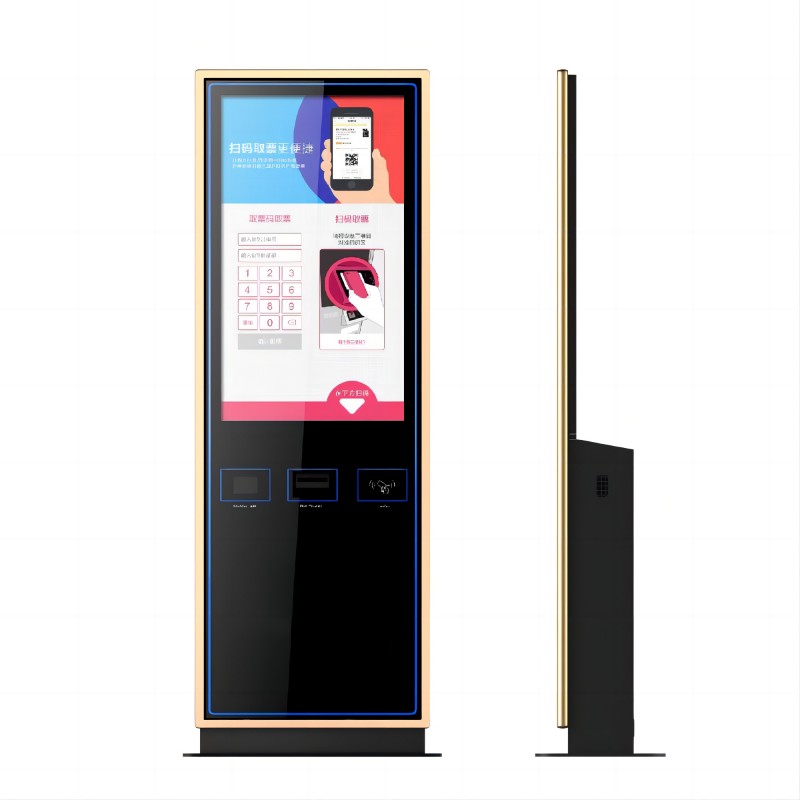

The Android Kiosk Mode Standing Ticketing Kiosk with Bar-code Scanner is an advanced self-service ticketing terminal specifically designed for environments that efficiently handle ticketing needs. The device uses Android Kiosk Mode technology to lock the device to the specified ticketing application, ensuring security and ease of operation. Equipped with hardware such as barcode scanners, touch screens and printers, the device is dedicated to providing a smooth and convenient self-service ticket purchase and verification experience.
Components | Details | |
PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
CPU | Intel Dual Core G2020 | |
RAM | 2 GB | |
HDD | 500G | |
Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card | |
PC Power Supply | HUNTKEY/Great Wall | |
LCD monitor | Screen Size | 22 / 17 inch ( optional from 8inch to 65inch) |
Brightness | 250cd/m2 | |
angle | horizontal 100°above;Vertical 80°above | |
Contrast | 1000:1 | |
Backlight tube life | more than 40,000hours | |
Max. resolution | 1280×1024 | |
Touch screen | Screen Size | inch Diagonal ( optional from 8inch to 65inch) |
Resolution | 4096x4096 | |
High Transparent, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
Receipt / Ticket Printer | Interface | High Speed USB |
Resolution | 4800*1200 maximum | |
Printing speed | 4.8 ipm | |
Width | 58 /80 /112 mm | |
Length | Customizable | |
| Resolution | 1280*720 |
Pixel | 8000000 | |
Adaptive Resolution | 1280*720 | |
Interface | USB 2.0 | |
Driver | No | |
NFC card reader | Status Display | LED indicator to show the power or communication status |
Card Type | ISO14443TypeA of Contact-less IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight | |
Type | Support ISO14443 | |
2D scanner | Readable Code | CMOS |
Resolution | 752*480 | |
Readable Code | 2D PDF417, QR Code(Model 1/2), Data Matrix(ECC200, ECC000, 050, 080, 100,140), Aztec, Maxi-code, etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Data-bar, etc | |
Approval | FCC Part15 Class B, CE EMC Class B | |
Work Voltage | DC 5V (4.5-5.5V) | |
Interface | RS232, USB | |
Wireless module | WLAN module | With industrious antenna exposure |
Motorized card reader | Card type | Support Mag card, IC Card, RF Card, Mi-fare S50,S70,UL Card |
Magnetic Head Life | 500,000/min | |
IC Card Touch Port | 300,000/min | |
Speakers | Features | Dual channel amplified speakers for Stereo ,8Ω 5W |
Digital Power Supply | AC input voltage range | 100~240VAC |
Frequency | 50Hz to 60Hz | |
AC input voltage range | 100~240VAC | |
Frequency | 50Hz to 60Hz | |
Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
Operation System | Windows 7 or Windows XP operation system without license | |
Free standing Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Anti-rust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
Package | Security Packing method with bubble foam and wooden case |
1.Dedicated application mode
App lock: Devices can be locked into dedicated ticketing apps and users will not be able to access other apps or features, ensuring device exclusivity and data security.
Multi-application support: Depending on business needs, devices can be configured to run a specific combination of applications while limiting access to other functions to suit different business scenarios.
2.Standing design
Space-saving: The standing design is suitable for space-limited environments, saving floor space while facilitating user operation.
Ergonomics: In line with ergonomic design, users can stand self-service operation, improve the use of comfort and efficiency.
3.Self-service ticket purchase
Barcode scanning function: Equipped with high-performance barcode scanner, users can scan coupons, membership cards, QR codes, etc., quickly complete the ticket purchase process.
Easy to use: The large touch screen has a simple and intuitive interface design that allows users to easily get started without complex training, thus improving the overall user experience.
1.Cinema
Self-service ticket purchase: The audience can purchase tickets, select seats, and pay quickly through the self-service terminal, thereby reducing the waiting time in line.
Coupon and membership card redemption: With the barcode scanning function, viewers can redeem their own coupons or use membership cards to optimize the viewing experience.
2.Tourist attraction
Ticket purchase: Visitors can purchase tickets at the entrance of the attraction, and quickly complete the ticket processing and join the park, avoiding the trouble of queuing for a long time.
Electronic ticketing: The electronic ticket can be sent to the tourist's mobile phone or mailbox, which is convenient for them to save, consult and use.
3.Events and exhibitions
On-site ticket processing: The audience can purchase tickets and print tickets at the event site, reducing the pressure of manual ticket processing.
Quick admission: Through the bar code scanning function, the audience can quickly complete the ticket verification and admission, improve the efficiency of event management.
1.Efficient ticket processing
Quick ticket purchase: Users can purchase their own tickets, select seats and pay for them, significantly reducing queues and waiting times.
Instant ticket issuing: The built-in printer supports quick printing of tickets or vouchers, and can also send electronic tickets to the user's mobile phone or email.
2.Convenient barcode scanning
High-performance scanner: Built-in bar code scanner, support to scan coupons, membership cards, two-dimensional code, etc., simplify ticket processing and discount exchange.
Self-service operation: Users can complete barcode scanning by themselves, without manual intervention, improving service efficiency.
3.Dedicated application mode
App lock: The device can be locked to a dedicated ticketing app to ensure that users can only access related functions and improve data security.
Multi-application support: It can be configured to run a specific set of applications, but restrict access to other functions, and flexibly adapt to different business needs.
1.Determine the demand
Functional requirements: Define the required functions, such as bar code scanning, payment methods, printing functions, etc., to ensure that the device meets business requirements.
Environmental adaptation: Choose equipment that is suitable for your business environment, considering the durability and design of the equipment.
2.Select supplier
Reputation and support: Choose suppliers with good reputation to ensure product quality and after-sales service.
Technical support: Select a supplier that provides comprehensive technical support to ensure the normal operation and maintenance of the equipment.
3.Equipment testing and training
Trial equipment: Conduct a trial or demonstration of the equipment to confirm that its functions and performance meet your expectations.
Employee training: Training relevant employees to ensure that they are able to properly use and manage the equipment.
4.Remote management and maintenance
Management Platform: Use the remote management platform to monitor equipment status, configure and maintain equipment, and reduce downtime.
Regular update: Keep the software and hardware of the device updated to ensure the stability and security of the system.
Q: How to ship the kiosk?
A: Air and sea shipping are optional, and sea shipping is recommended for bulk orders. All kiosks should be shipped in a standing position and must not be put down.
Q: Are you a manufacturing or trading company?
A: We are an OEM/ODM kiosk manufacturer
Q: What payment methods does your company accept?
A: We accept most payment methods, but mainly accept T/T. L/C, Western Union, PayPal and Money Gram.
Q: How long is your delivery time?
A: It depends on the order quantity, about 5 weeks for samples and about 4 weeks for less than 100 units.
Q: What is the warranty period of your kiosk?
A: 12 months from the date of shipment, for components, free repair or replacement, shipped by sender.
Q: Can you customize the kiosk?
A: Yes, we always customize the product according to your requirements. Including redesigning the kiosk appearance, printing your company logo, choosing specific colors, etc. OEM or ODM is available.
Q: What is the MOQ?
A: The MOQ is 1 unit, we accept samples
Address: No. 99-15, Fuan intelligent manufacturing Industrial Park, Dayang Road, Fuhai Street, Baoan District, Shenzhen, China
