Product Details:
| Place of Origin: | kiosk manufacturer |
| Brand Name: | Lien |
| Certification: | FCC, CE, ROHS |
| Model Number: | LKS-8379 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 UNITS |
|---|---|
| Price: | $ |
| Packaging Details: | Strong Case |
| Delivery Time: | 5-6 weeks |
| Payment Terms: | TT |
| Supply Ability: | 5000 units per month |

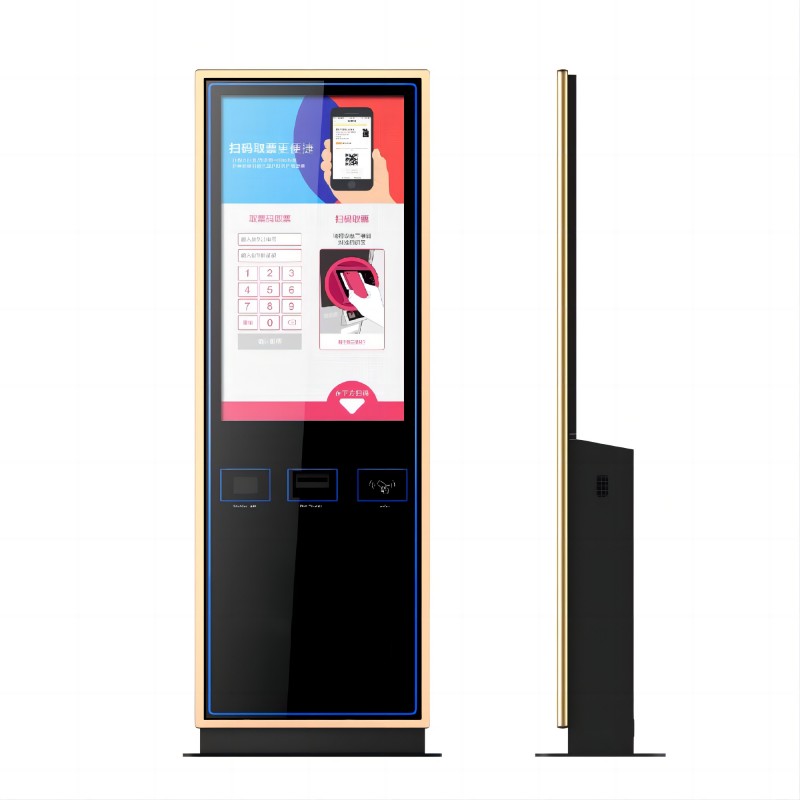

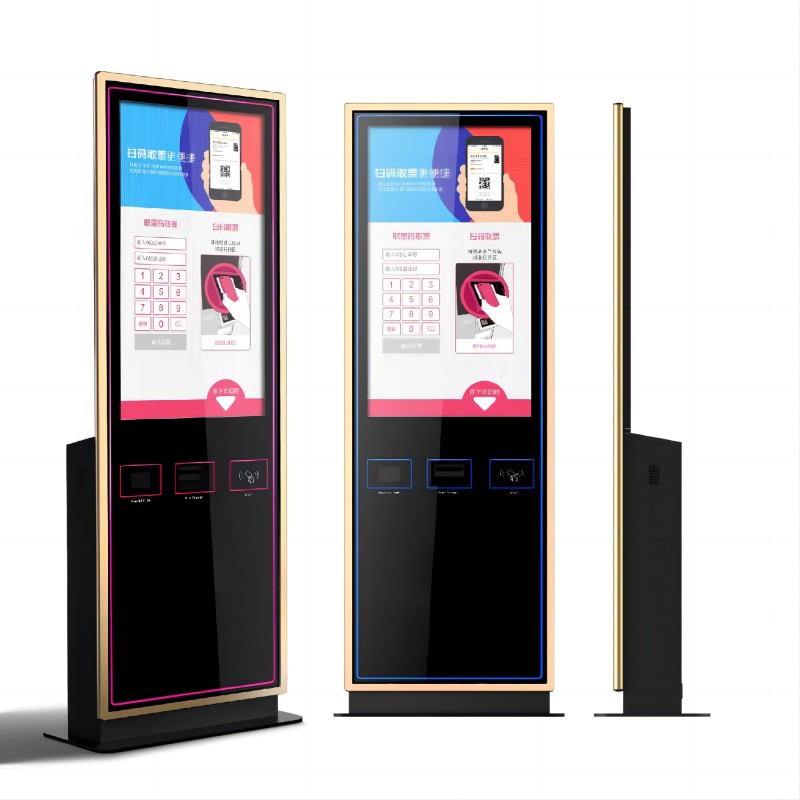

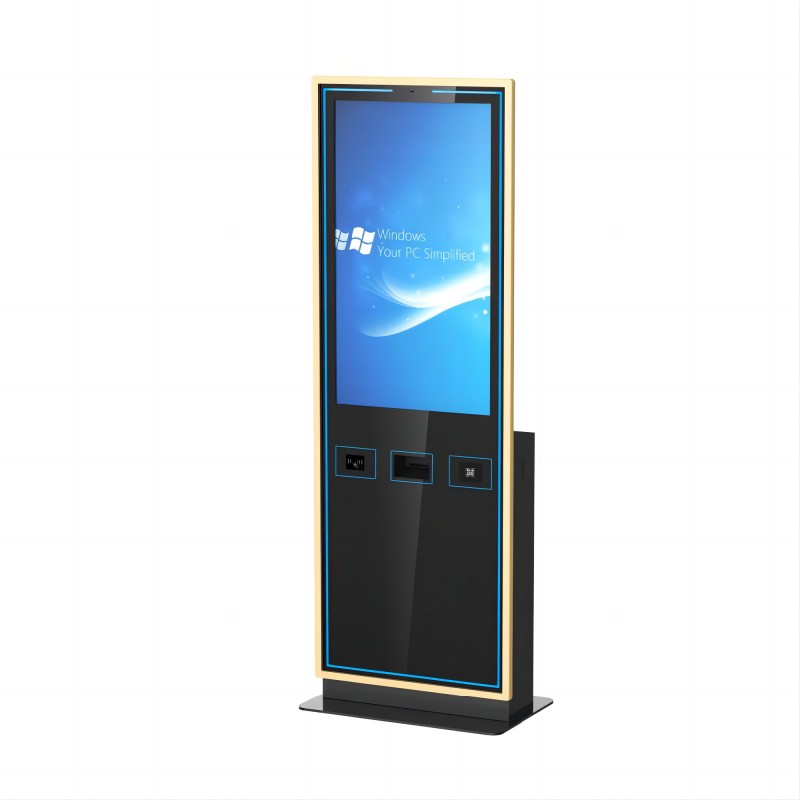

The Standing Computer Kiosk Concert Ticket Machine is a self-service ticketing terminal designed for events such as concerts and concerts to increase ticketing processing efficiency and improve user experience. It combines advanced computer, touch screen technology and ticket management software to provide a safe and convenient automated ticketing solution.
Components | Details | |
PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
CPU | Intel Dual Core G2020 | |
RAM | 2 GB | |
HDD | 500G | |
Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card | |
PC Power Supply | HUNTKEY/Great Wall | |
LCD monitor | Screen Size | 22 / 17 inch ( optional from 8inch to 65inch) |
Brightness | 250cd/m2 | |
angle | horizontal 100°above;Vertical 80°above | |
Contrast | 1000:1 | |
Backlight tube life | more than 40,000hours | |
Max. resolution | 1280×1024 | |
Touch screen | Screen Size | inch Diagonal ( optional from 8inch to 65inch) |
Resolution | 4096x4096 | |
High Transparent, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
Receipt / Ticket Printer | Interface | High Speed USB |
Resolution | 4800*1200 maximum | |
Printing speed | 4.8 ipm | |
Width | 58 /80 /112 mm | |
Length | Customizable | |
| Resolution | 1280*720 |
Pixel | 8000000 | |
Adaptive Resolution | 1280*720 | |
Interface | USB 2.0 | |
Driver | No | |
NFC card reader | Status Display | LED indicator to show the power or communication status |
Card Type | ISO14443TypeA of Contact-less IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight | |
Type | Support ISO14443 | |
2D scanner | Readable Code | CMOS |
Resolution | 752*480 | |
Readable Code | 2D PDF417, QR Code(Model 1/2), Data Matrix(ECC200, ECC000, 050, 080, 100,140), Aztec, Maxi-code, etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Data-bar, etc | |
Approval | FCC Part15 Class B, CE EMC Class B | |
Work Voltage | DC 5V (4.5-5.5V) | |
Interface | RS232, USB | |
Wireless module | WLAN module | With industrious antenna exposure |
Motorized card reader | Card type | Support Mag card, IC Card, RF Card, Mi-fare S50,S70,UL Card |
Magnetic Head Life | 500,000/min | |
IC Card Touch Port | 300,000/min | |
Speakers | Features | Dual channel amplified speakers for Stereo ,8Ω 5W |
Digital Power Supply | AC input voltage range | 100~240VAC |
Frequency | 50Hz to 60Hz | |
AC input voltage range | 100~240VAC | |
Frequency | 50Hz to 60Hz | |
Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
Operation System | Windows 7 or Windows XP operation system without license | |
Free standing Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Anti-rust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
Package | Security Packing method with bubble foam and wooden case | |
1.High-resolution touch screen
The device is equipped with a high-definition touch screen, and the interface design is simple and intuitive, so that users can easily browse the performance information, view the seat map, select the desired seat and quickly complete the ticket purchase. The high resolution of the touch screen ensures a clear and delicate display effect and improves the overall user experience.
2.Barcode scanner
The device has a built-in high-performance barcode scanner that supports scanning various types of barcodes, including coupons, membership cards and QR codes, so that users can easily use discounts and offers. Whether it is a paper bar code or an electronic bar code, it can be quickly identified and processed to ensure that users enjoy the best discount experience.
3.AD display
The device can play ads and promotional messages during non-use periods, including video ads, still images, and scrolling text. By using the idle time of the equipment, it not only improves the brand exposure, but also effectively attracts potential customers and enhances the marketing effect. At the same time, advertising content can be flexibly customized according to different activities and target users to maximize the impact of marketing.
1.Concerts and concert venues: Provide self-service ticket purchase services to reduce on-site queuing time and improve the ticket purchase experience of the audience.
2.Large-scale events and festivals: self-service ticket terminals are set up at the event site to facilitate the audience to purchase tickets at any time and improve the efficiency of event organization.
3.Cinemas and theatres: Suitable for all kinds of performance venues, providing convenient self-service ticket purchase services to improve audience satisfaction.
4.Sports events and exhibitions: Used in various large-scale events and exhibitions to simplify the ticketing management process and improve the overall operational efficiency.
1.The built-in efficient printer can quickly print paper tickets or vouchers, ensuring that users can get physical tickets immediately. In addition, the device also supports sending electronic tickets to the user's mobile phone or email, providing users with a variety of ticket options. Whether it is physical ticket or electronic ticket, it can meet the needs of different users, improve convenience and satisfaction.
2.The device uses advanced encryption technology to protect transaction data and user information, preventing unauthorized access and data disclosure. In addition, the device supports multiple authentication methods, including PIN codes and fingerprint recognition, ensuring the security of operations and the confidentiality of user information. Together, these security measures provide users with a trusted self-service environment that further enhances user trust and satisfaction.
3.The device supports remote management and maintenance functions, and monitors the device status in real time through a centralized control platform to achieve remote configuration and software update. This centralized management mode greatly reduces the need for on-site maintenance and improves O&M efficiency. In addition, real-time monitoring can detect and resolve potential problems in a timely manner, ensuring that equipment is always in optimal operating condition and improving the overall quality of service.
When purchasing a Standing Computer Kiosk Concert Ticket Machine, it is recommended to first evaluate the suitability of the equipment and business needs, including the size of the performance venue and ticket processing capacity. Choose reputable suppliers to ensure product quality and follow-up service, and read customer reviews and success stories for real feedback. Verify device compatibility, including with existing ticketing systems and payment gateways, to ensure seamless integration. At the same time, consider the device's user interface customization capabilities in order to conform to the brand image and enhance the user experience. Focus on data security features, choosing devices with cryptographic protection and multi-factor authentication to ensure the security of transactions and user information. Also verify that the device supports remote management and automatic updates to simplify maintenance. Finally, the pilot test is carried out to verify the performance of the equipment, and the procurement cost and expected benefits of the equipment are considered comprehensively to ensure a reasonable return on investment. Through these steps, you can ensure that you choose the self-service ticket terminal that suits your needs, improving ticketing efficiency and customer satisfaction.
Q: How to ship the kiosk?
A: Air and sea shipping are optional, and sea shipping is recommended for bulk orders. All kiosks should be shipped in a standing position and must not be put down.
Q: Are you a manufacturing or trading company?
A: We are an OEM/ODM kiosk manufacturer
Q: What payment methods does your company accept?
A: We accept most payment methods, but mainly accept T/T. L/C, Western Union, PayPal and Money Gram.
Q: How long is your delivery time?
A: It depends on the order quantity, about 5 weeks for samples and about 4 weeks for less than 100 units.
Q: What is the warranty period of your kiosk?
A: 12 months from the date of shipment, for components, free repair or replacement, shipped by sender.
Q: Can you customize the kiosk?
A: Yes, we always customize the product according to your requirements. Including redesigning the kiosk appearance, printing your company logo, choosing specific colors, etc. OEM or ODM is available.
Q: What is the MOQ?
A: The MOQ is 1 unit, we accept samples
