Product Details:
Place of Origin: | kiosk manufacturer |
Brand Name: | Lien |
Certification: | FCC, CE, ROHS |
Model Number: | LKS-8379 |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 UNITS |
---|---|
Price: | $ |
Packaging Details: | Strong Case |
Delivery Time: | 5-6 weeks |
Payment Terms: | TT |
Supply Ability: | 5000 units per month |

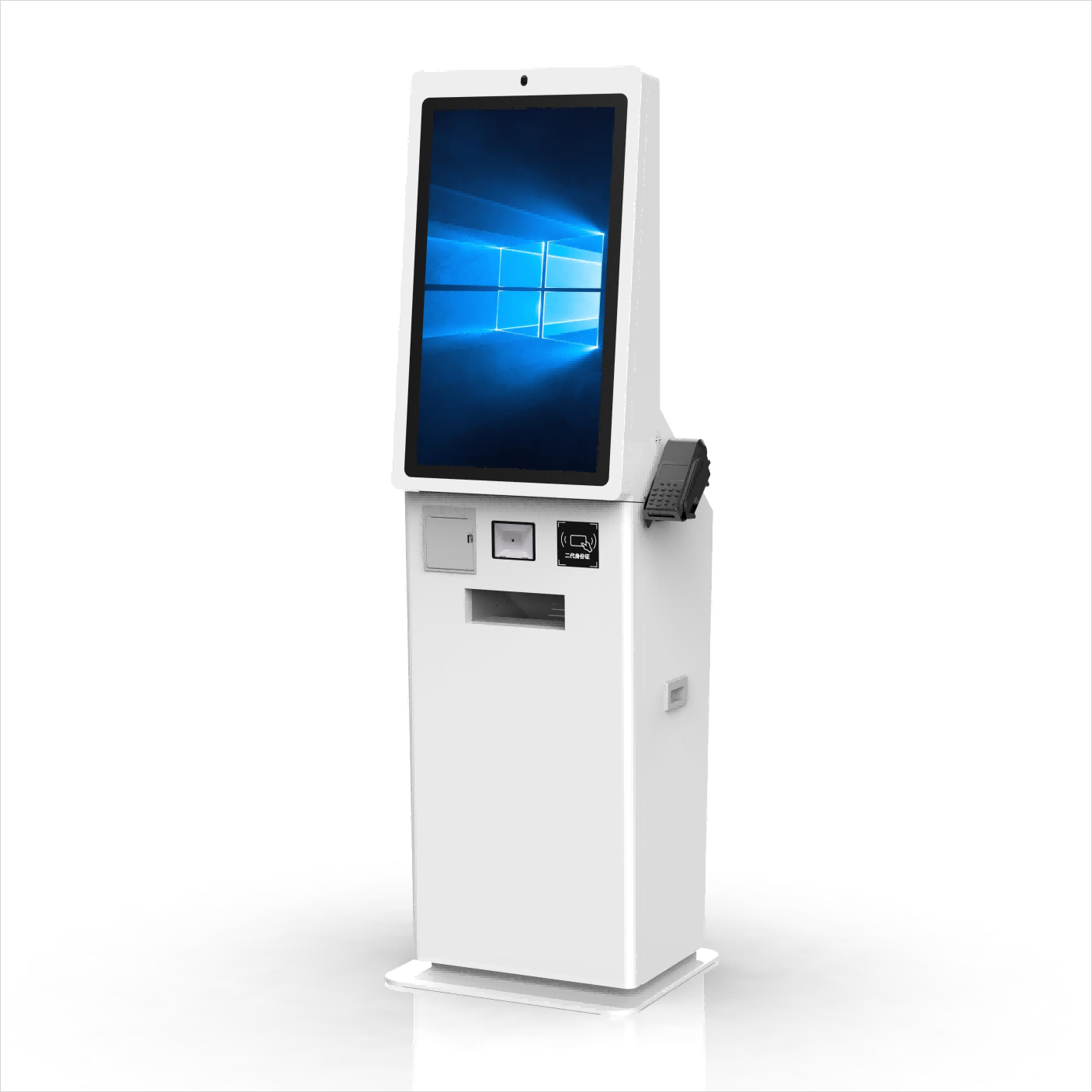

The Display Kiosk Checkout Self-service is a modern electronic device, widely used in various retail environments, designed to provide customers with the convenience of self-service checkout. This terminal combines advanced technology and a user-friendly interface to enable customers to complete the shopping process more quickly and efficiently.
Components | Details | |
PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 | |
RAM | 2GB /4 GB / 8GB | |
HDD | 500G | |
Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card | |
Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 | |
LCD monitor | Screen Size | 32inch ( optional from 8inch to 65inch) |
Brightness | 250cd/m2 | |
angle | horizontal 100°above;Vertical 80°above | |
Contrast | 1000:1 | |
Backlight tube life | more than 40,000hours | |
Max. resolution | 1280×1024 | |
Touch screen | Screen Size | 32inch Diagonal ( optional from 8inch to 65inch) |
Resolution | 4096x4096 | |
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
Bank/Credit Card Reader | Interface | RS232 |
Card Type | Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card | |
Power Voltage | DC 24V±5% | |
Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal | |
Encrypted Pin-pad | Keylift~span | 2,000,000 cycles |
Key force | 2~3N | |
Key trip | >2.5mm | |
Protection level | ip65 | |
Cash code Bill acceptor | Validation Rate | 96% or higher |
Banknote Insertion | Four-way | |
Escrow | One banknote | |
Capacity | 1000 notes Max | |
Coin Acceptor | Coin Acceptance | Max 32 coin types, in 2*16 or 1*32 channels |
Detection ability of counterfeit Coins | with high detection ability of counterfeit coins | |
Accepting Speed | 2 Coins/Sec | |
Supply Voltage | 10V-16V DC | |
Epson receipt thermal printer | Auto cutter | included |
Technology | Thermal printing | |
Paper width | 80mm | |
Printing speed | 150mm/s | |
Data buffer | 4KB | |
Interface | RS232 ,USB | |
UPS | Input voltage | 145-290va |
Output voltage | 200-255va | |
Max time for supplying a single PC | 3~20minutes (for single PC) | |
Digital Power Supply | AC input voltage range | 100~240VAC |
Frequency | 50Hz to 60Hz | |
AC input voltage range | 100~240VAC | |
Frequency | 50Hz to 60Hz | |
Accessories | Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. |
Operation System | Operation System | Windows 7 or Windows XP operation system without license or Android System |
KIOSK Cabinet | KIOSK Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Anti-rust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. |
Packing | Packing | Security Packing method with bubble foam and wooden case |
1.Touchscreen display
The self-checkout terminal is equipped with a large-sized touchscreen display that users can operate by touching the screen. The touch screen interface design is simple and clear, easy for customers to quickly get started, users can view product information on the screen, select payment methods, enter coupon codes, etc.
2.Barcode scanner
The device has a built-in or external barcode scanner, and customers can use the scanner to scan the barcode of the product and add the product to the shopping cart. The scanner is highly accurate and can quickly identify the barcode of the product, reducing the possibility of misoperation.
3.Payment terminal
Self-checkout terminal usually supports a variety of payment methods, including credit card (credit card, debit card), mobile payment (such as Apple Pay, Alipay, wechat Pay), etc. Some terminals also support cash payments and provide change functions to meet the payment needs of different customers.
1.Supermarkets: Self-checkout terminals are widely used in large chain supermarkets, such as Walmart, Carrefour, etc., to facilitate customers to self-checkout.
2.Convenience stores: Some convenience stores that are open 24 hours, such as 7-Eleven, are also equipped with self-checkout terminals to provide customers with a quick and convenient shopping experience.
3.Library: Self-service checkout terminals are also used in the library to provide self-service services for borrowing and returning books, improving the efficiency of library services.
4.Fast food restaurants: such as McDonald's, KFC and other fast food restaurants, customers can order and check out by themselves, reduce queuing time and improve dining efficiency.
1.Time saving: The introduction of self-checkout terminals has greatly reduced the time customers have to wait in line during the checkout process, especially during peak shopping periods. This terminal device can divert customers, improve checkout speed, and make the shopping experience more efficient and smooth.
2.Improve efficiency: Through self-checkout, customers can complete the entire process from product scanning to payment, which not only reduces the workload of cashiers, but also allows retailers to allocate human resources more rationally and focus on other services and management in the store, thereby improving overall operational efficiency.
3.Convenient and quick: The self-checkout terminal design is simple and intuitive, the user interface is friendly, the operation steps are clear, and customers can easily get started. The terminal device supports a variety of payment methods, including credit card, debit card, mobile payment, etc. Customers can choose the most suitable payment method according to their preferences, and the whole checkout process is fast and convenient.
4.Privacy protection: The self-service checkout terminal reduces the direct interaction between customers and cashiers, ensuring the privacy of customers' purchases. Customers can complete the checkout in a relatively independent environment, avoiding the possible embarrassment and discomfort in the traditional checkout process, and improving the privacy and security of shopping.
1.Needs assessment: Before purchasing a self-checkout terminal, you should first conduct a detailed needs assessment. Consider factors such as the size of the store, daily foot traffic, technical acceptance of the customer base, and existing checkout efficiency. Select the terminal model and configuration as required.
2.Function selection: Select the terminal device with rich functions and easy operation. A good self-checkout terminal should be equipped with basic features such as a large touchscreen display, barcode scanner, multiple payment method support, printer and weighing device. In addition, you can also consider whether you need auxiliary functions such as voice prompts and video guidance to improve the user experience.
3.Supplier reputation: Choose reputable suppliers and brands. High-quality suppliers usually provide reliable after-sales service and technical support to ensure that equipment can be maintained and updated in a timely manner during use, reducing the operational impact caused by equipment failures.
4.Security measures: Ensure that the terminal equipment has complete security measures to prevent the occurrence of unscanned or unpaid goods. Choose terminal equipment equipped with safety monitoring and loss prevention measures, and strengthen security awareness training of employees to ensure the safety of the shopping environment.
5.Cost-effectiveness: Consider the purchase cost, installation cost, maintenance cost and possible benefits of the equipment. Although the initial investment of the self-checkout terminal is high, it can improve the checkout efficiency, save labor costs, improve customer satisfaction, and have a higher return on investment in the long run.
6.Customer feedback: After the implementation of the self-service checkout terminal, we regularly collect customer feedback and understand the experience and problems of customers in the use process. According to the feedback, timely optimization and improvement are carried out to further improve the use effect of equipment and customer satisfaction.
Q: Are you a manufacturing or trading company?
A: We are an OEM/ODM kiosk manufacturer
Q: How to ship the kiosk?
A: Air and sea shipping are optional, and sea shipping is recommended for bulk orders. All kiosks should be shipped in a standing position and must not be put down.
Q: What payment methods does your company accept?
A: We accept most payment methods, but mainly accept T/T. L/C, Western Union, PayPal and Money Gram.
Q: How long is your delivery time?
A: It depends on the order quantity, about 5 weeks for samples and about 4 weeks for less than 100 units.
Q: What is the warranty period of your kiosk?
A: 12 months from the date of shipment, for components, free repair or replacement, shipped by sender.
Q: Can you customize the kiosk?
A: Yes, we always customize the product according to your requirements. Including redesigning the kiosk appearance, printing your company logo, choosing specific colors, etc. OEM or ODM is available.
Q: What is the MOQ?
A: The MOQ is 1 unit, we accept samples
