Product Details:
| Place of Origin: | kiosk manufacturer |
| Brand Name: | Lien |
| Certification: | FCC, CE, ROHS |
| Model Number: | LKS-8379 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 UNITS |
|---|---|
| Price: | $ |
| Packaging Details: | Strong Case |
| Delivery Time: | 5-6 weeks |
| Payment Terms: | TT |
| Supply Ability: | 5000 units per month |

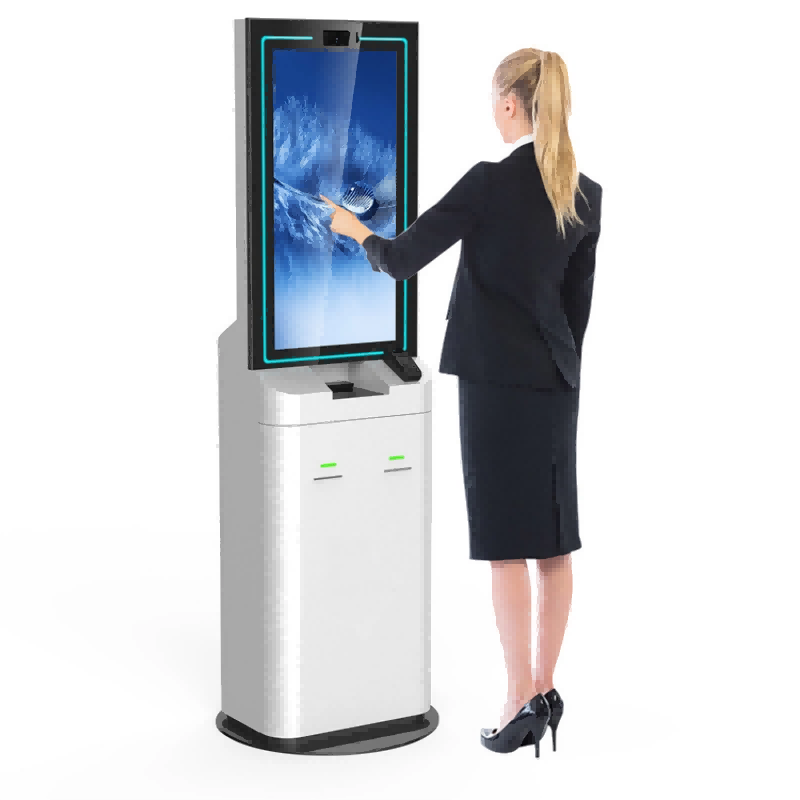

Custom Kiosks Airport Self-service Inquiry and Payment Machine is a state-of-the-art self-service device designed specifically for airports, which integrates information inquiry, check-in, payment, and a variety of value-added services in a single device, aiming to provide passengers with a more convenient, efficient, and personalized travel experience.
Product Details | |||
OS: | Win 7/8/10 Or Above | Display: | 32 Inch Display |
Passport Reader: | Support | ID Card Reader: | Support |
Card Dispenser: | Support | Receipt Printer: | Support |
Credit Card Reader: | Support | Cash Payment: | Optional |
PC: | Optional | ||
Standard hardware components List of Self Service Check In Kiosks At Airports/Hotel Check in Kiosk/Hospital Check in Kiosk with Custom Design by LKS is as following: | ||
Components | Details | |
PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 | |
RAM | 2GB /4 GB / 8GB | |
HDD | 500G | |
Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card | |
Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 | |
LCD monitor | Screen Size | 32inch ( optional from 8inch to 65inch) |
Brightness | 250cd/m2 | |
angle | horizontal 100°above;Vertical 80°above | |
Contrast | 1000:1 | |
Backlight tube life | more than 40,000hours | |
Max. resolution | 1280×1024 | |
Touch screen | Screen Size | 32inch Diagonal ( optional from 8inch to 65inch) |
Resolution | 4096x4096 | |
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
Bank/Credit Card Reader | Interface | RS232 |
Card Type | Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card | |
Power Voltage | DC 24V±5% | |
Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal | |
Encrypted Pinpad | Keylift~span | 2,000,000 cycles |
Key force | 2~3N | |
Key trip | >2.5mm | |
Protection level | ip65 | |
Cashcode Bill acceptor | Validation Rate | 96% or higher |
Banknote Insertion | Four-way | |
Escrow | One banknote | |
Capacity | 1000 notes Max | |
Coin Acceptor | Coin Acceptance | Max 32 coin types, in 2*16 or 1*32 channels |
Detection ability of counterfeit Coins | with high detection ability of counterfeit coins | |
Accepting Speed | 2 Coins/Sec | |
Supply Voltage | 10V-16V DC | |
Epson receipt thermal printer | Autocutter | included |
Technology | Thermal printing | |
Paper width | 80mm | |
Printing speed | 150mm/s | |
Data buffer | 4KB | |
Interface | RS232 ,USB | |
UPS | Input voltage | 145-290va |
Output voltage | 200-255va | |
Max time for supplying a single PC | 3~20minutes (for single PC) | |
Digital Power Supply | AC input voltage range | 100~240VAC |
Frequency | 50Hz to 60Hz | |
AC input voltage range | 100~240VAC | |
Frequency | 50Hz to 60Hz | |
Accessories | Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. |
Operation System | Operation System | Windows 7 or Windows XP operation system without license or Android System |
KIOSK Cabinet | KIOSK Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. |
Packing | Packing | Security Packing method with bubble foam and wooden case |
1.Information Enquiry
Travelers can check flight information, gate location, baggage check-in status, etc. through the touch screen interface.Some of the devices may also have the function of checking weather forecasts, airport maps, neighboring services and facilities, and other information.
2.self-service check-in
Passengers can scan valid documents such as passports or ID cards to print boarding passes automatically.It supports value-added services such as seat selection and baggage check-in reservation.
3.Payment function
Integration of multiple payment methods (e.g. cash, bank card, mobile payment, etc.) makes it convenient for travelers to pay for air tickets, excess baggage fees, etc.Some devices may also support payment for other services in the airport (e.g. shopping, dining, etc.).

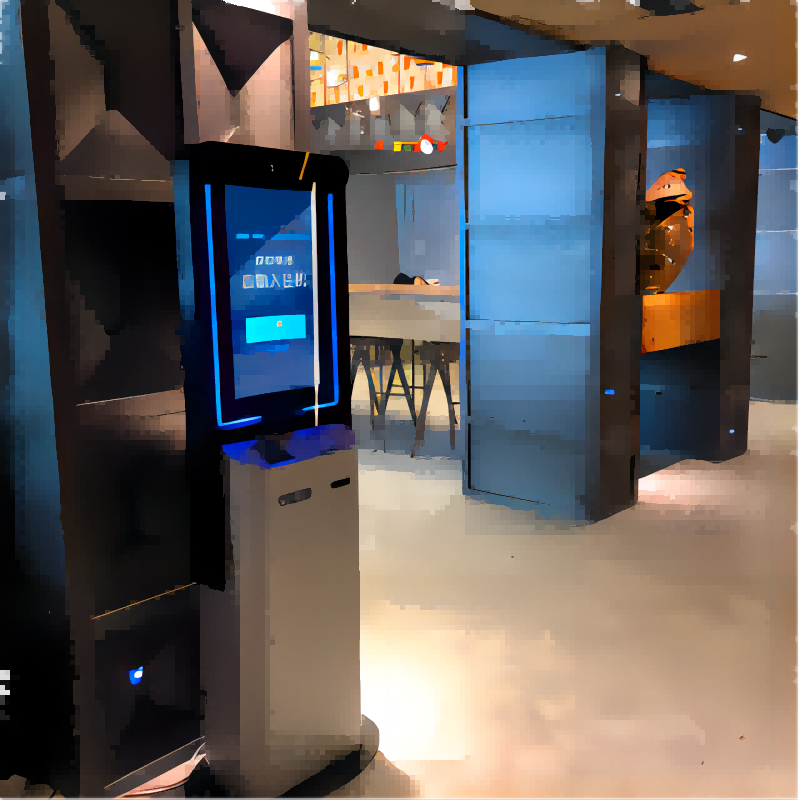

Custom Kiosks Airport Self-service Inquiry and Payment Machine is widely used in Airport lobbies, check-in areas, security entrances, waiting lounges, etc.
1.Passengers can quickly complete check-in, check flight information and other operations through the kiosk without having to wait in a long queue at the manual counter, thus greatly reducing waiting time.Self-service kiosks are able to automatically handle a large number of repetitive tasks, such as printing boarding passes and verifying passport information, which reduces the workload of airport staff and improves overall operational efficiency.
2.The widespread use of kiosks has reduced the need for manual service desks at airports, thereby reducing labor costs. With the continuous progress and maturity of the technology, the maintenance cost of kiosks is gradually reduced and has high reliability and stability.
3.The kiosk uses advanced data encryption technology to ensure the security of travelers' information and transaction data. Self-service kiosks use advanced data encryption technology to ensure the security of traveler information and transaction data.
1.Clarify whether the machine you need has the functions of information inquiry, flight dynamic display, payment (including cash, credit card, mobile payment, etc.), printing itinerary or invoice. Ensure that the machine is compatible with existing airport information systems, payment systems and network architectures. Considering the international travelers at the airport, make sure the machine supports multiple languages, especially Chinese and English.
2.Pay attention to the machine's processor performance, memory size, storage space, screen size and resolution, and touch screen type to ensure that it can meet the needs of daily use. The operating system should be stable and reliable, and easy to upgrade and maintain. At the same time, the software interface should be friendly and easy to operate.
3.Customized design according to the overall style of the airport so that the appearance of the machine is in harmony with the airport environment. Customize the functions of the machine according to the actual needs, such as adding specific language support and adjusting the interface layout.
Q: Are you a manufacturing or trading company?
A: We are an OEM/ODM kiosk manufacturer
Q: How to ship the kiosk?
A: Air and sea shipping are optional, and sea shipping is recommended for bulk orders. All kiosks should be shipped in a standing position and must not be put down.
Q: What payment methods does your company accept?
A: We accept most payment methods, but mainly accept T/T. L/C, Western Union, PayPal and Money Gram.
Q: How long is your delivery time?
A: It depends on the order quantity, about 5 weeks for samples and about 4 weeks for less than 100 units.
Q: What is the warranty period of your kiosk?
A: 12 months from the date of shipment, for components, free repair or replacement, shipped by sender.
Q: Can you customize the kiosk?
A: Yes, we always customize the product according to your requirements. Including redesigning the kiosk appearance, printing your company logo, choosing specific colors, etc. OEM or ODM is available.
Q: What is the MOQ?
A: The MOQ is 1 unit, we accept samples
