Product Details:
| Place of Origin: | kiosk manufacturer |
| Brand Name: | Lien |
| Certification: | FCC, CE, ROHS |
| Model Number: | LKS-8379 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 UNITS |
|---|---|
| Price: | $ |
| Packaging Details: | Strong Case |
| Delivery Time: | 5-6 weeks |
| Payment Terms: | TT |
| Supply Ability: | 5000 units per month |

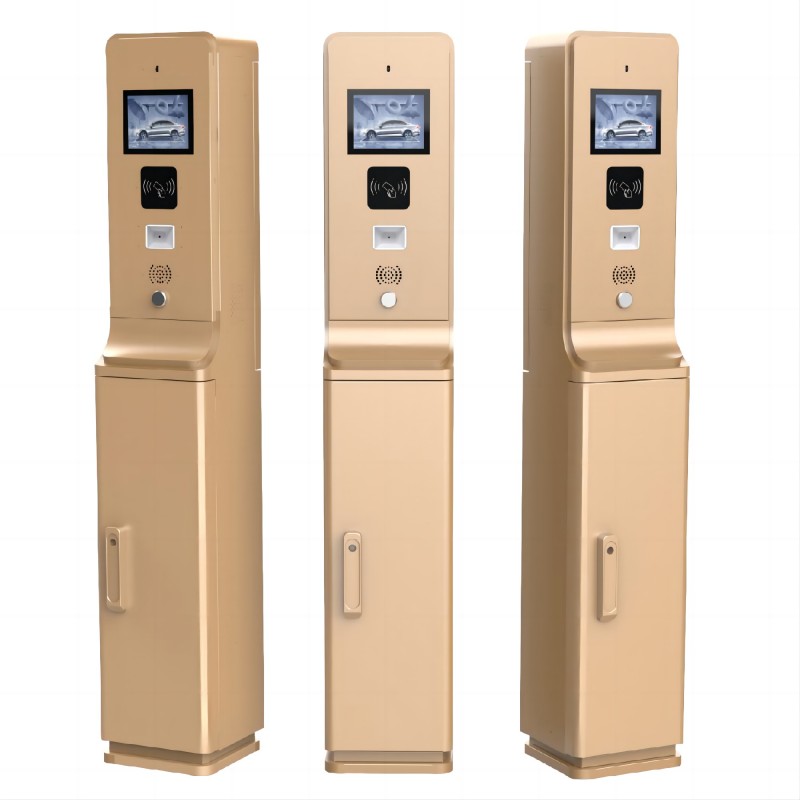

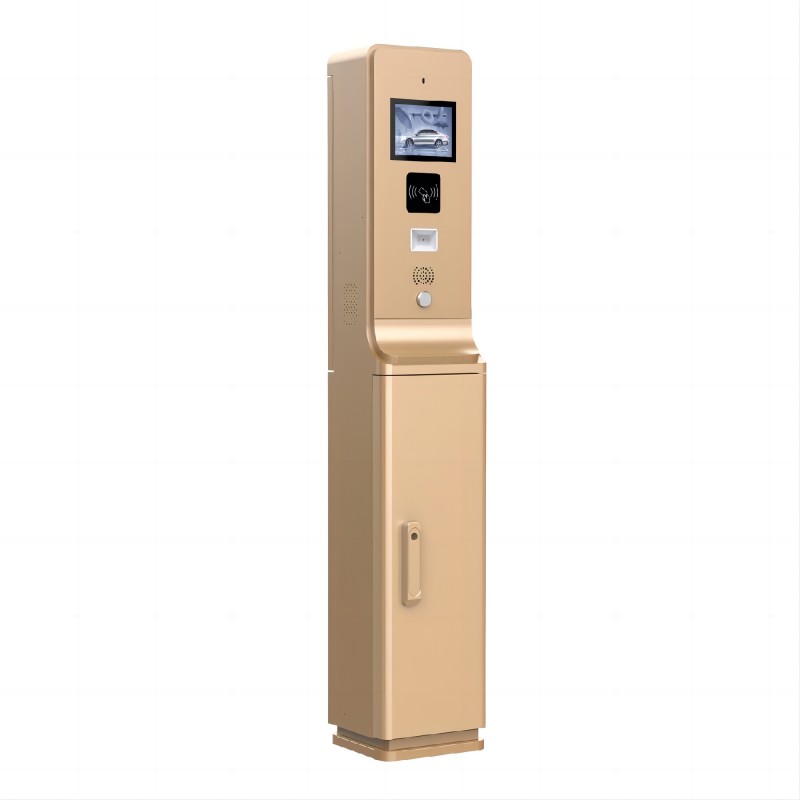

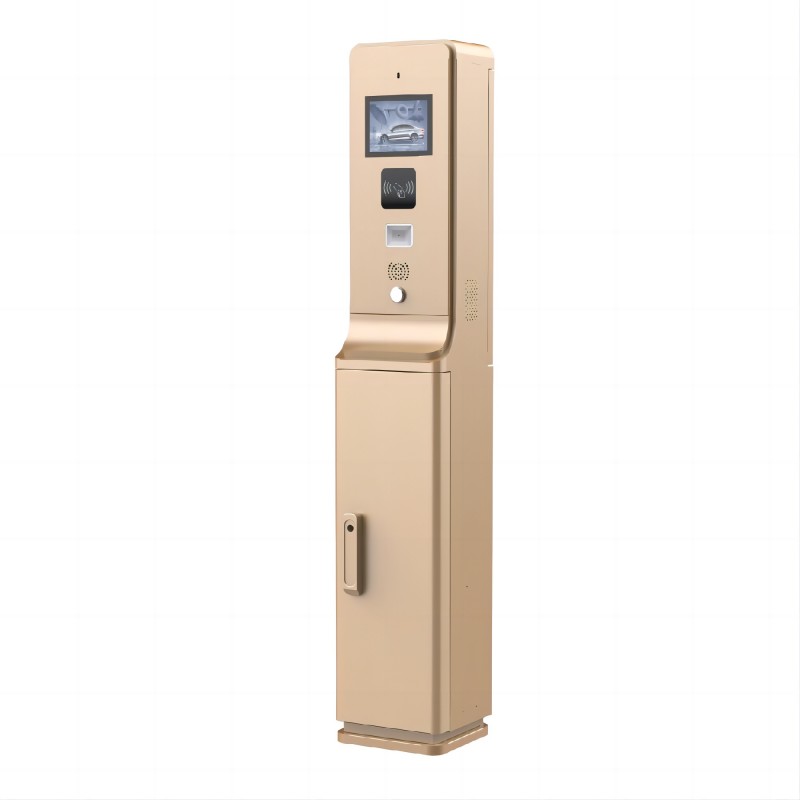

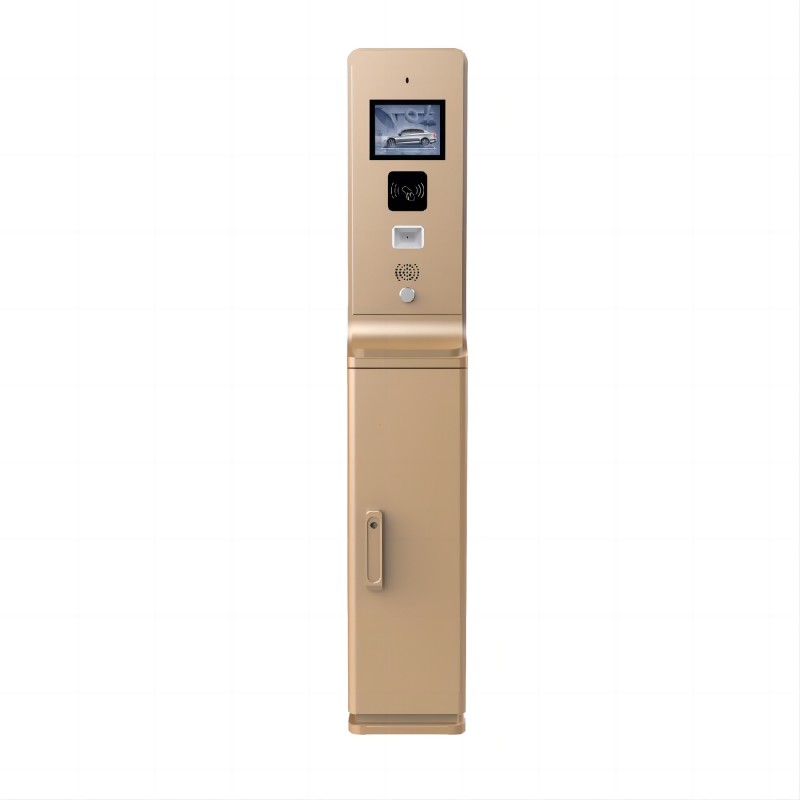

The 6.5-inch parking lot payment self-service terminal is a compact, multi-functional self-service device designed for parking lot charges. It is equipped with an intuitive touch screen interface, allowing users to complete parking fee payments by themselves. The terminal supports multiple payment methods, including cash, bank cards, mobile payments, etc., and is equipped with a cash receiver and change function to ensure the convenience and accuracy of the payment process. Its compact design is suitable for installation at parking lot entrances and exits or payment stations, significantly improving the operational efficiency of parking lots, reducing waiting time in queues, and providing car owners with a fast, contactless payment experience.
| NO. | Category | Module | Specification |
| 1 |
Touch Display |
LED Display | 19＂ Full HD LED LCD screen Display Ratio: 4:3; Maximum Contrast: 3000: 1 Resolution: 1280 * 1024; Viewing angle: 170 ° Response Time: 5MS; Brightness: 300cd / m² Signal Input: VGA or HDMI The average life time is 100,000 hours. |
Capacitive Touch Screen | 19＂ capacitive touch screen, matching the size of the main display screen, no need for touch force. Response Speed: 2-5ms; Light Transmittance: 95%; Response Time: 5ms; Surface Hardness: > Mo type 7; Resolution: 4096 * 4096; Position Accuracy: ≤2mm; The service life is more than 10 years. No coating on the surface, anti-violence, anti-scratch, water-proof, dust-proof. Only one calibration is needed. | ||
| 2 | Host | Industrial Host | I3 industrial control motherboard; Kingston 4G memory; Kingston 64G solid hard drive (Integrated audio, network card, channel 2.0, support lvds / vga, 6 serial ports, 8 USB2.0, one network port) |
| 3 | Face Recognition | HD Camera | Industrial HD camera with face recognition and live detection. |
| 4 | Printing | Receipt Printer | Epson Thermal Receipt Printer T532 Printable width: 50mm-80mm, with automatic cutter; Can place lengthened 80mm thermal paper, support paper-lacking alarm interface. |
| 5 | Identification | OCR Passport Scanner | Wintone passport scanner Support passport scanning, identity authentication. |
| 6 | Card Dispense and Return | Automatic dispense and receive room cards. | Model: ACT (with recycling carton) Support automatic card dispensing. Read magnetic stripe information during card dispensing; Card size 55x86mm, card thickness 0.36 ～ 1.0mm, card case capacity 120pcs / 0.76mm standard card (maximum card capacity is 500PCS; Card dispensing speed is more than 1 / s , Double-wheel card-rubbing design effectively prevents dual-card output, recessed design, easy adjustment of card thickness, movable card box with lock, more effective improvement of security, high-strength plastic card issuing channel structure, RFID anti-interference, and flexible card reading and writing function expansion, dustproof and anti-foreign body bayonet design. |
| 7 | Finance |
| Should be provided by customers and also customers should get the interface documents. |
| 8 | Bill Acceptor | NV Bill Acceptor | Accept all denominations but can only dispense one. |
| 8 | Sound/Lights Control | SRX712 | Audio amplifier,2x5W speaker |
| Lights | Indicator light control board (communicating with computer and providing interface), there are indicator lights at room card dispensing, bank card, receipt slots, etc. |
1.Camera
2.6.5 Inch Touch Screen
3.Microphone
4.Intercom
5RFID Card Reader
6.Motion Sensor
7.QR Code Reader
1. More convenient: Provide users with a quick way to pay for parking, reduce waiting time and improve the overall customer experience.
2. Available 24/7: Operate 24/7, users can pay at any time, which is especially useful in areas with heavy traffic or late-night activities.
3. Multiple payment methods: Support a variety of payment methods, including cash, credit/debit cards, mobile payments and contactless payments to meet the preferences of different users.
4. User-friendly interface: The large 21.5-inch touch screen provides a clear and intuitive interface, which is convenient for users to navigate and complete transactions efficiently.
5. Efficient traffic management: Speed up the payment process, reduce parking queues and congestion, and help manage traffic flow more effectively.
6. Reduce operating costs: Minimize the need for manual payment booths, thereby reducing labor costs and allocating resources more effectively.
7. Improve security: Equipped with advanced security features such as encryption and secure payment processing, ensure the security of user data and transactions
8. Real-time monitoring and reporting: Provide real-time data collection and reporting capabilities, allowing operators to more effectively monitor usage patterns, track revenue and manage maintenance needs.
9. Durability and Reliability: Designed for outdoor use, this kiosk can withstand all weather conditions and frequent use, ensuring long-term reliability and durability.
10. Customizable Features: It can be customized to include additional features such as advertising display, loyalty program integration, and multi-language support, thereby enhancing its functionality and user engagement.
1. What are the main functions of the visitor machine?
- The visitor machine is mainly used for visitor registration, information query, visitor card issuance, access rights management and multimedia information display.
2. Does the visitor machine support multi-language function?
- Yes, most visitor machines support multi-language function to provide convenient services for visitors with different language backgrounds.
3. Can the visitor machine be integrated with other devices?
- Yes, the visitor machine can integrate printers, RFID readers, cameras and other devices to expand functions, such as printing visitor cards, recording visitor information, etc.
4. How to update and manage the content on the visitor machine?
- The content of the visitor machine is usually updated remotely through the background management system, and the display content can be changed and managed at any time.
5. What is the process of visitor registration?
- Visitors usually enter basic information on the touch screen, such as name, purpose of visit, etc., and then the system will generate a visitor card or QR code for access
