Product Details:
| Place of Origin: | kiosk manufacturer |
| Brand Name: | Lien |
| Certification: | FCC, CE, ROHS |
| Model Number: | LKS-8379 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 UNITS |
|---|---|
| Price: | $ |
| Packaging Details: | Strong Case |
| Delivery Time: | 5-6 weeks |
| Payment Terms: | TT |
| Supply Ability: | 5000 units per month |

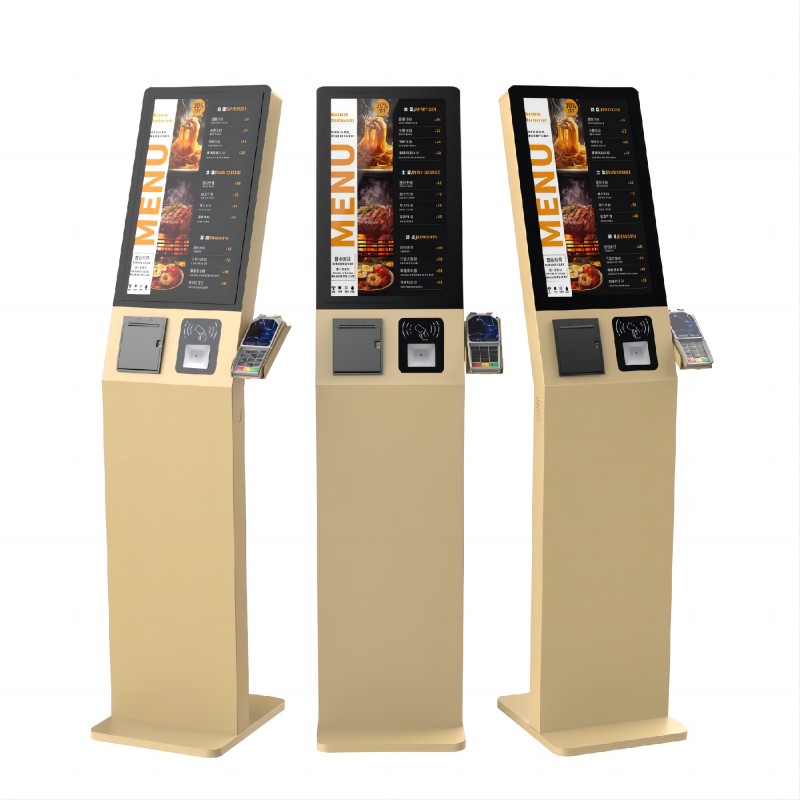

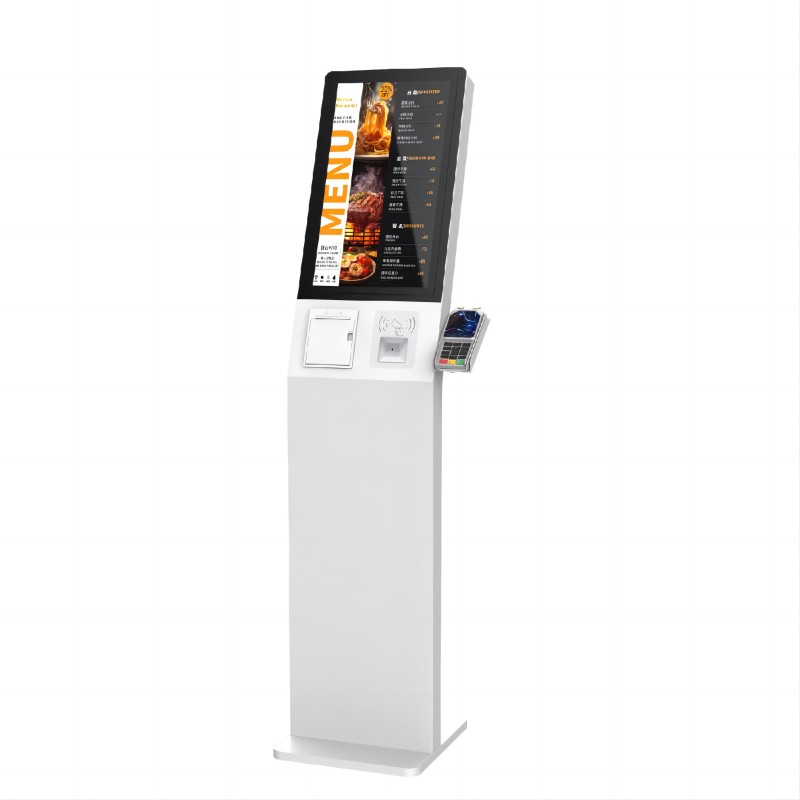

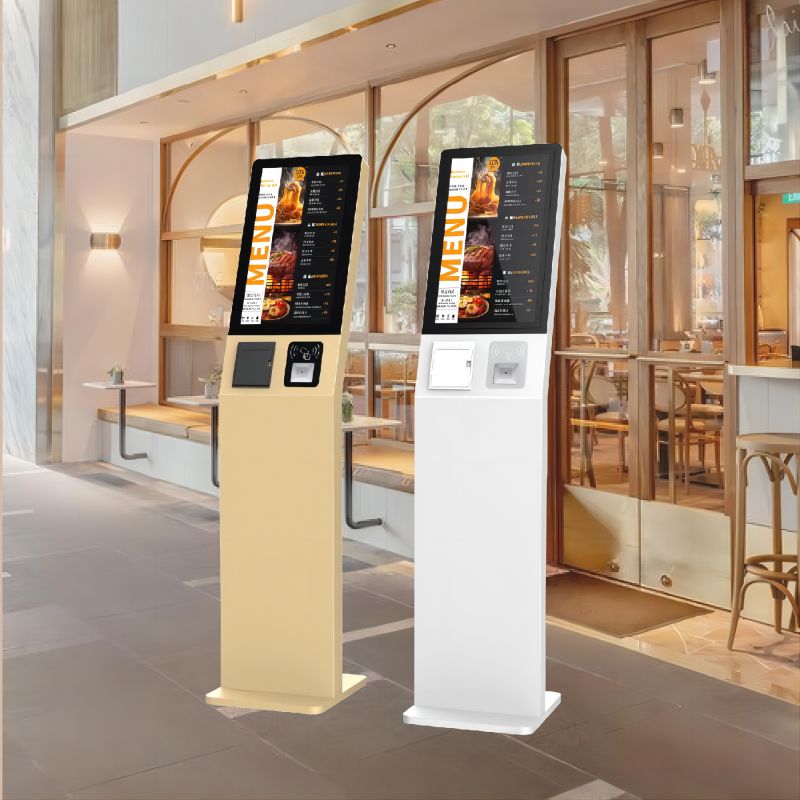

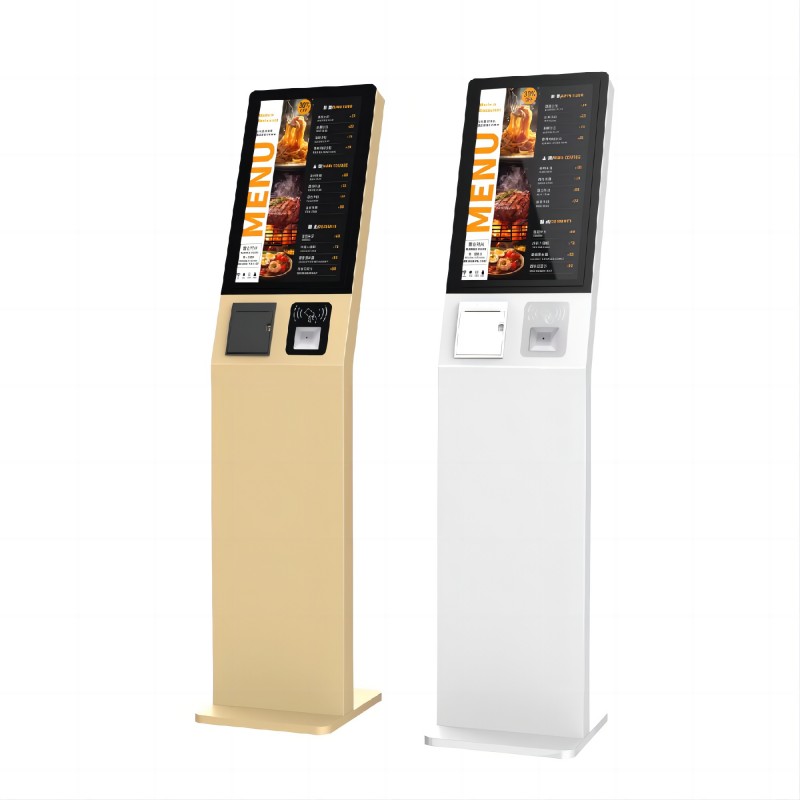

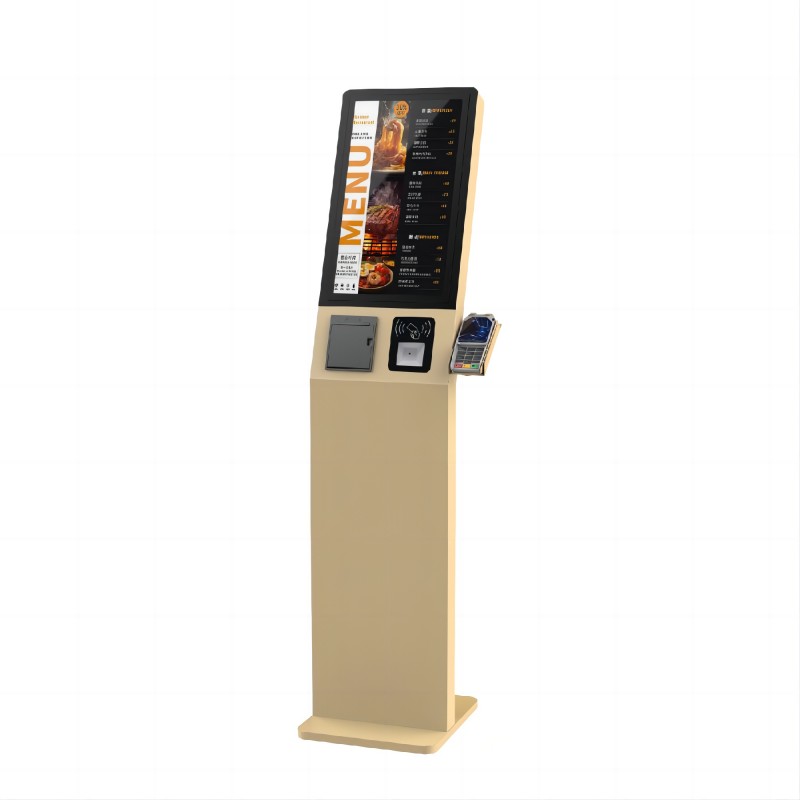

The McDonald's Kiosk - L Model is an advanced self-service station designed to streamline the ordering process in McDonald's restaurants. It features a user-friendly touchscreen interface, allowing customers to customize their meals, view nutritional information, and pay directly at the kiosk. This modern solution aims to enhance the dining experience by reducing wait times and improving order accuracy.
| Components | Details | |
| PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
| CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 | |
| RAM | 2GB /4 GB / 8GB | |
| HDD/SSD | HDD:1 TB/ SSD 128/256G | |
| Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card | |
| PC Power Supply | HUNTKEY/Great Wall | |
| LCD monitor | Screen Size | 22inch/24inch/27inch ( optional ) |
| Brightness | 250cd/m2 | |
| angle | horizontal 100°above;Vertical 80°above | |
| Contrast | 1000:1 | |
| Backlight tube life | more than 40,000hours | |
| Max. resolution | 1280×1024 | |
| Touch screen | Screen Size | 22inch/24inch/27inch Diagonal ( optional ) |
| Resolution | 4096x4096 | |
| High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
| Credit Card Reader | Interface | RS232 |
| Card Type | Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card | |
| Power Voltage | DC 24V±5% | |
| Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal | |
| Cashcode Bill acceptor (Option) | Validation Rate | 96% or higher |
| Banknote Insertion | Four-way | |
| Escrow | One banknote | |
| Capacity | 1000 notes Max | |
| Coin Acceptor (Option) | Coin Acceptance | Max 32 coin types, in 2*16 or 1*32 channels |
| Detection ability of counterfeit Coins | with high detection ability of counterfeit coins | |
| Accepting Speed | 2 Coins/Sec | |
| Supply Voltage | 10V-16V DC | |
| Receipt thermal printer | Autocutter | included |
| Technology | Thermal printing | |
| Paper width | 80mm | |
| Printing speed | 150mm/s | |
| Data buffer | 4KB | |
| Interface | RS232 ,USB | |
| Digital Power Supply | AC input voltage range | 100~240VAC |
| Frequency | 50Hz to 60Hz | |
| AC input voltage range | 100~240VAC | |
| Frequency | 50Hz to 60Hz | |
1. Top standard design, fast, stable, and safe.
2. All-in-One Kiosk, built -in printer, NFC, Scanner, Speaker etc.
3. New self-service shopping experience.
4. Restaurant self-ordering kiosks can save labor costs.
5. Reduce the lining time.
6. High-sensitive barcode scanner, receipt printer.
7. Support mobile phone scan code payment, pinpad or pos (credit card)payment.
8. Support different placement: upright, wall mounting, desktop
9. Support customized POS models.
1. Reduced Wait Times:By allowing customers to place orders directly, the kiosks help streamline the ordering process and reduce queues, leading to faster service.
2. Improved Order Accuracy:Customers can review and customize their orders on the screen, reducing the chances of errors and ensuring they get exactly what they want.
3. Enhanced Customer Experience:The kiosks provide an interactive and user-friendly interface, offering a convenient and personalized ordering experience.
4. Increased Efficiency:Kiosks enable staff to focus more on food preparation and customer service, optimizing the overall efficiency of the restaurant.
5. Upselling Opportunities:The digital platform can suggest additional items or upgrades, helping to increase the average transaction value.
1. Determine Branding:
Custom Branding: Customize the kiosk with your company’s branding, including logos, color schemes, and other visual elements.
2. Determine Software Requirements Customization:
Custom Software: Customizable software requirements, such as multi-language support, specific payment gateways, and user interface adjustments.
Remote Update: Remote software update capabilities ensure the kiosk is always running the latest version.
3. Determine Hardware Add-on:
Add-on: Options for integrating additional hardware, such as cameras, passport scanners, printers, ID card readers, and contact-less payment modules.
Modular Design: Modular design allows for future upgrades and component replacement.
4. Determine Power Requirements: Ensure the kiosk has the right voltage and backup options.
5.Determine Network Connectivity: Flexible connectivity options, including Ethernet, Wi-Fi, and cellular, for uninterrupted operation.
1.Q: What are the main components of the kiosk hardware?
A: The main components include a touchscreen, card reader, receipt printer, QR code scanner, and sometimes a camera or biometric scanner.
2.Q: What maintenance does the hardware require?
A: Regular maintenance includes cleaning the screen and components, checking for software updates, and ensuring that all hardware parts are functioning properly.
3.Q: What should I do if the hardware is not working properly?
A: If the hardware is not working properly, try restarting the kiosk. If the problem persists, contact technical support for assistance.
4.Q: Does the kiosk hardware require specific environmental conditions?
A: The kiosk should be placed in a temperature-controlled environment, away from direct sunlight, and protected from moisture and dust.
5.Q: Can the kiosk hardware accept different types of payments?
A: Yes, the kiosk can accept a variety of payment methods, including credit/debit cards, mobile payments, and sometimes cash, depending on the model.
