Product Details:
Place of Origin: | kiosk manufacturer |
Brand Name: | Lien |
Certification: | FCC, CE, ROHS |
Model Number: | LKS-8379 |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 UNITS |
---|---|
Price: | $ |
Packaging Details: | Strong Case |
Delivery Time: | 5-6 weeks |
Payment Terms: | TT |
Supply Ability: | 5000 units per month |

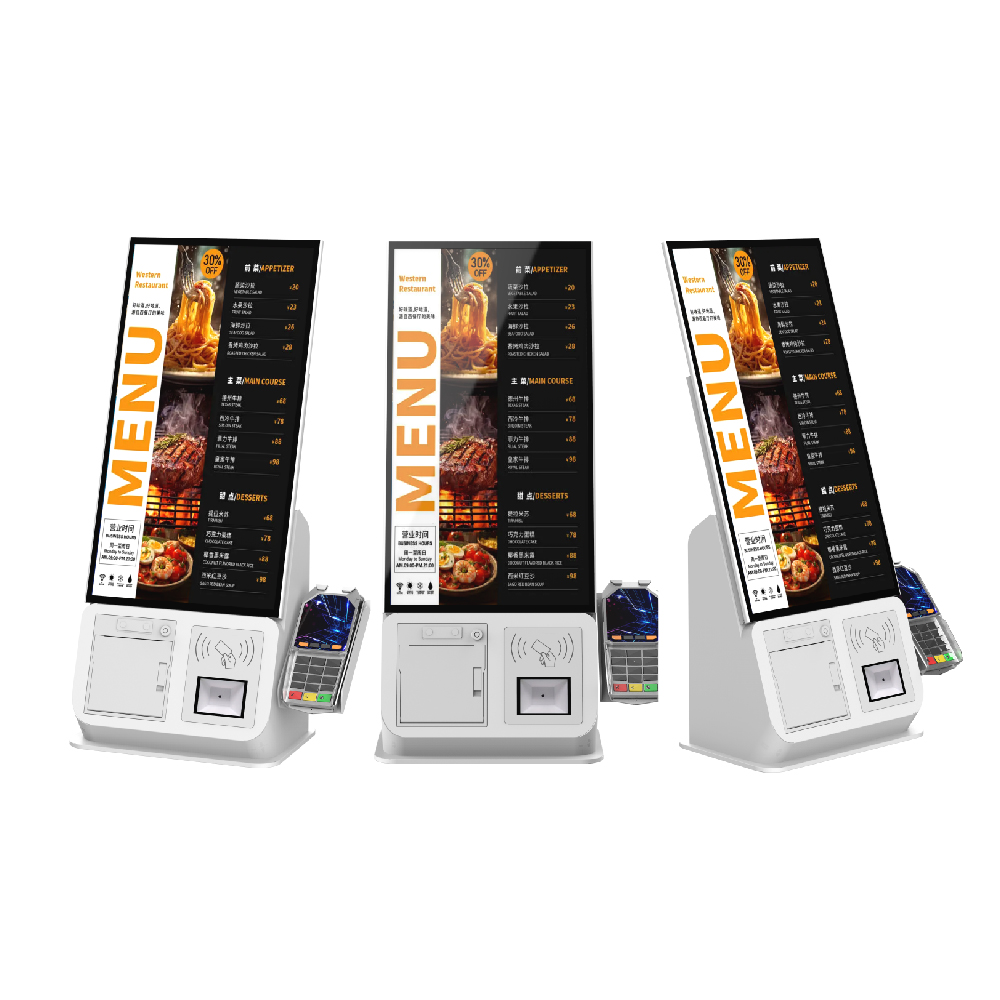

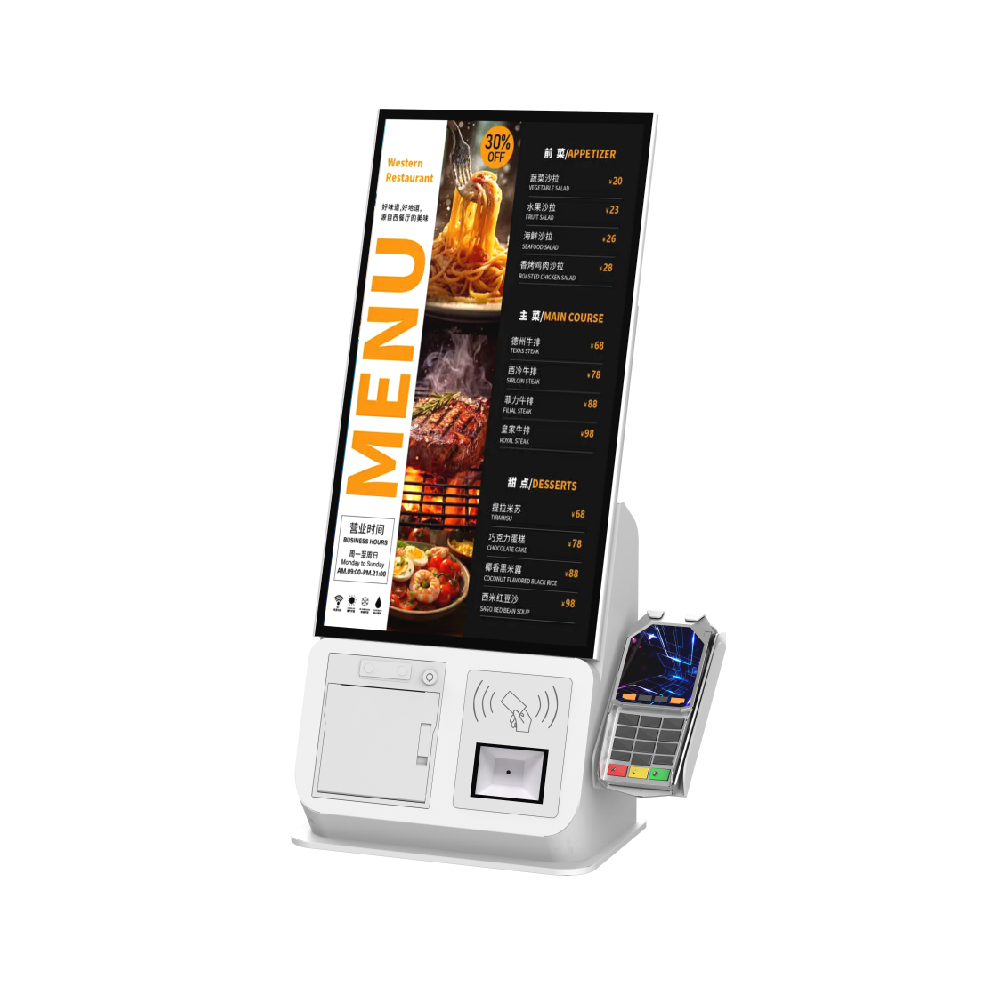

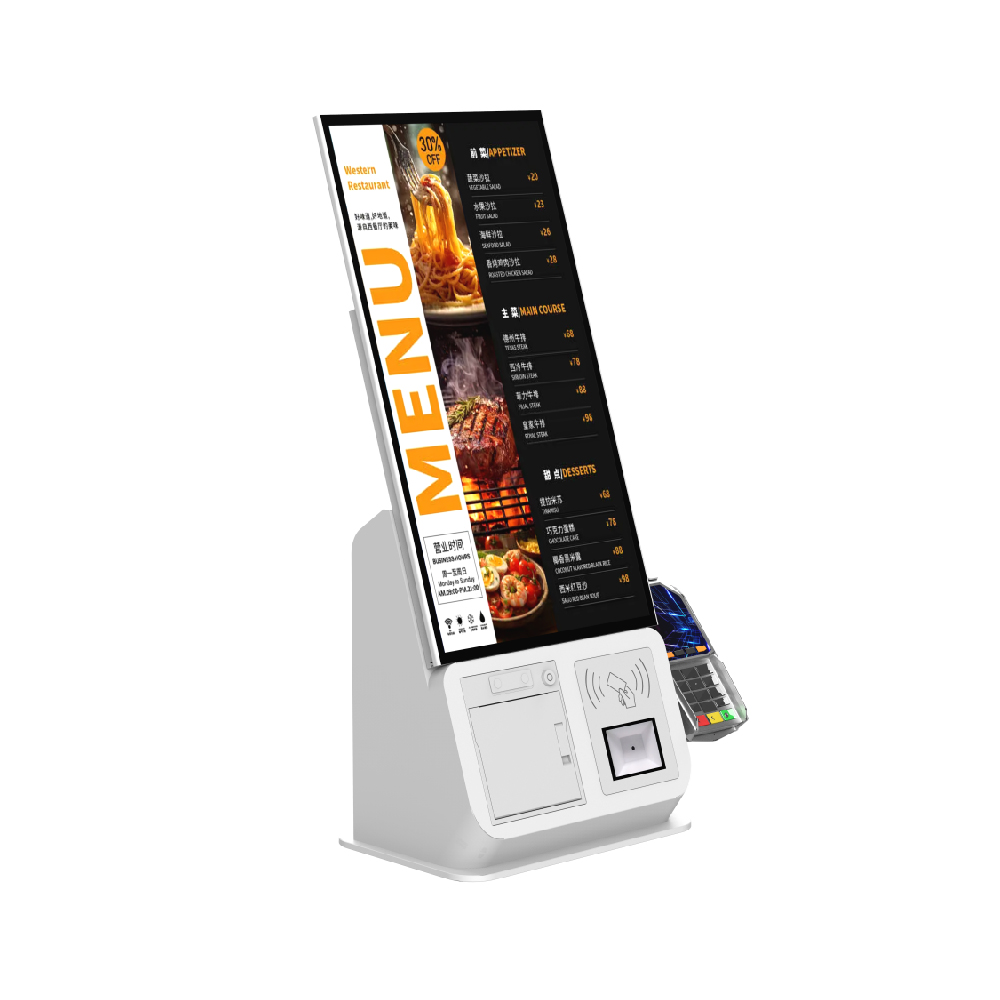

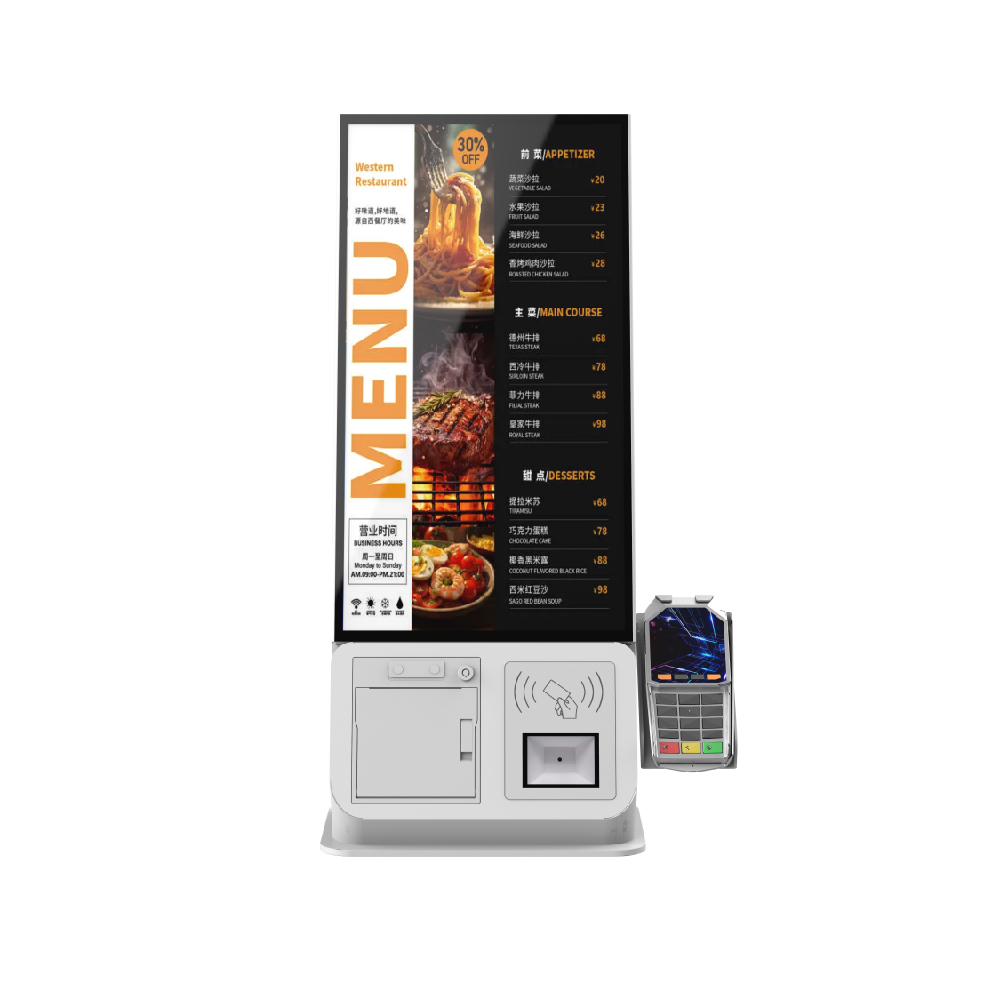

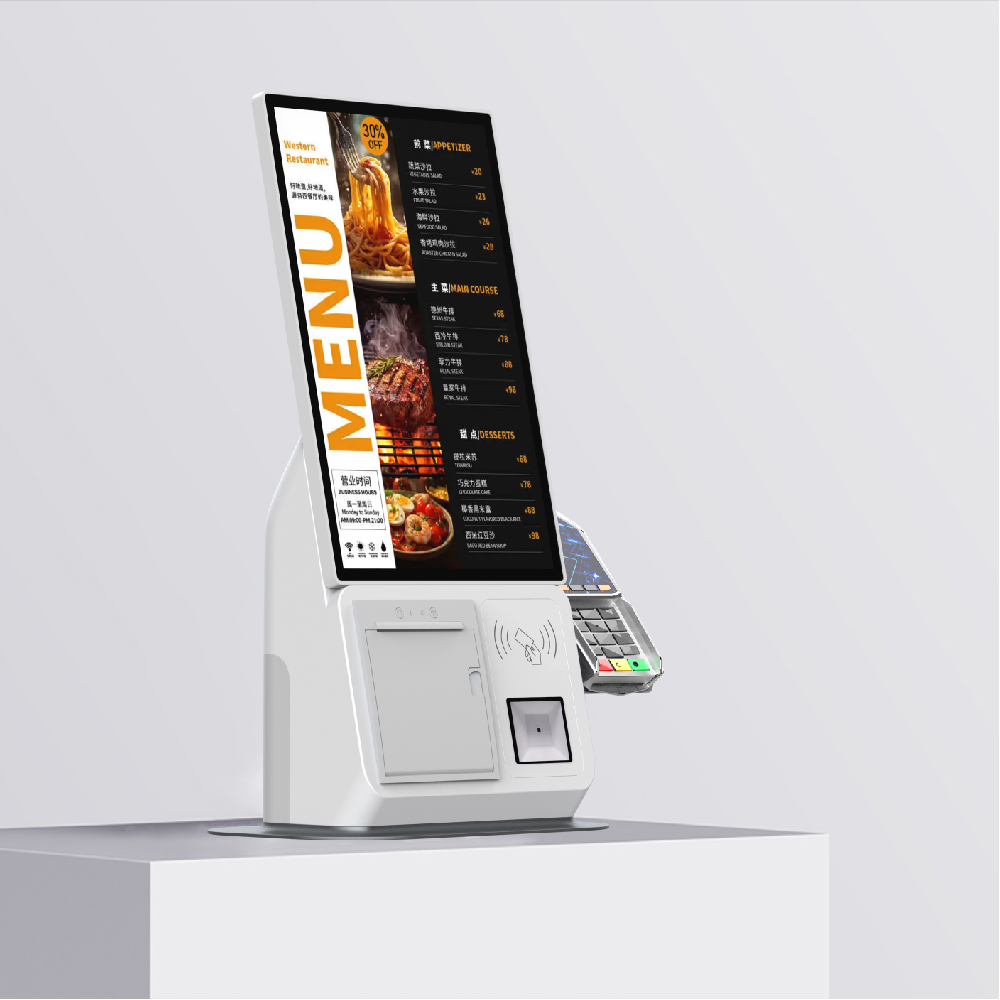

The 24-inch desktop bill payment self-service terminal is a multi-functional self-service device designed for processing bill payments. Equipped with a 24-inch touch screen and a user-friendly interface, users can easily complete the payment of various bills such as utility bills, telephone bills, and network fees. The terminal supports a variety of payment methods, including cash, credit cards, debit cards, and mobile payments, and is equipped with a thermal printer for printing transaction receipts. The desktop design is suitable for placement in a variety of places such as bank halls, supermarkets, and community centers. It not only improves payment efficiency and reduces waiting time in queues, but also provides users with a convenient self-service experience.
Components | Details | |
PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 | |
RAM | 2GB /4 GB / 8GB | |
HDD | 500G | |
Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card | |
PC Power Supply | HUNTKEY/Great Wall | |
LCD monitor | Screen Size | 17 inch/19inch ( optional from 8inch to 65inch) |
Brightness | 250cd/m2 | |
angle | horizontal 100°above;Vertical 80°above | |
Contrast | 1000:1 | |
Backlight tube life | more than 40,000hours | |
Max. resolution | 1280×1024 | |
Touch screen | Screen Size | 17/19 inch Diagonal ( optional from 8inch to 65inch) |
Resolution | 4096x4096 | |
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
Card reader | Main Fuction | Combination of Magnetic/IC/RFID card Reading |
Communication Interface | RS232C / USB (HID) | |
Card Dimmensions | Size: 53.92~54.18mm *85.47~85.90mm; Thickness: 0.4mm~1.0mm | |
Magnetic Head Life | 500,000/min | |
IC Card Touch Port | 300,000/min | |
Power Voltage | DC 24V±5% | |
Digital Power Supply | AC input voltage range | 100~240VAC |
Frequency | 50Hz to 60Hz | |
AC input voltage range | 100~240VAC | |
Frequency | 50Hz to 60Hz | |
Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
Operation System | Windows 7 or Windows XP operation system without license | |
KIOSK Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
Packing | Security Packing method with bubble foam and wooden case |
1.Barcode scanner
2.Contactless Card reader
3.Wireless Module like WIFI,3G,GPRS
4.Web camera
5.Receipt printer
6.Finger print reader
7.Cash dispenser
8.ID card reader
9.Card dispenser
10.Speaker
1.Q:Can I customize my order using the self-service kiosk?
· A: Yes, you can personalize your order by selecting options such as toppings, sides, drink sizes, and special instructions directly on the touchscreen
2. Q: Is the screen of the 24-inch floor standing bill pay kiosk waterproof and dustproof?
- A: The kiosk is designed with waterproof and dustproof considerations, suitable for indoor environments. For outdoor use, choose a kiosk with an IP65 or higher protection rating to ensure it operates normally under adverse weather conditions.
3. Q: Does the 24-inch floor standing bill pay kiosk support multi-language interfaces?
- A: Yes, the kiosk supports multi-language interfaces. Users can select different languages as needed, making it suitable for international settings and providing a better user experience.
4. Q: How can I update the content on the 24-inch floor standing bill pay kiosk remotely?
- A: The kiosk is equipped with a remote Content Management System (CMS). You can log into the CMS platform via a network connection (Wi-Fi or wired) to upload and manage content. The kiosk will automatically sync the latest information.
5. Q: What should I do if the 24-inch floor standing bill pay kiosk malfunctions?
- A: We provide 24/7 technical support and warranty services. Users can contact technical support via hotline or online support platform for assistance. Most issues can be resolved through remote diagnostics, and if necessary, we will arrange on-site service.
