Product Details:
| Place of Origin: | kiosk manufacturer |
| Brand Name: | Lien |
| Certification: | FCC, CE, ROHS |
| Model Number: | LKS-8379 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 UNITS |
|---|---|
| Price: | $ |
| Packaging Details: | Strong Case |
| Delivery Time: | 5-6 weeks |
| Payment Terms: | TT |
| Supply Ability: | 5000 units per month |

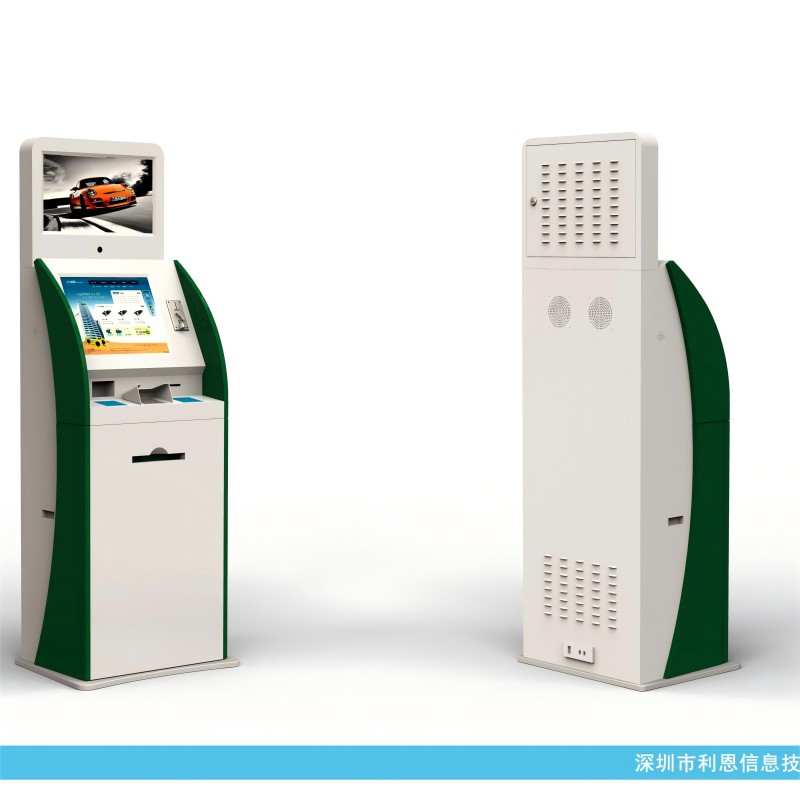

The 21.5-inch self-service change payment touch ATM self-service terminal is equipped with an RFID card reader and a coin receiving module. It integrates multiple functions and supports operations such as account inquiry, transfer, bill payment, cash deposit and withdrawal, and change. It provides users with safe and convenient self-service financial services and significantly improves the service efficiency of bank branches and public places.
| No | Module | Technical Parameters |
| 1 | Main control module | "Supports 4th generation Core i3/i5/i7, Pentium, Celeron LGA 1151 processors Uses Intel® H11 chipset 1*DIMM, up to 8 GB, DDR3 1600/1333 MHz 8*COM, 10*USB, dual Gigabit network card 1*SATA 3.0, 2*SATA 2.0, 1*PCI-E 16X VGA+HDMI dual-screen display Provides Mini-PCIe, supports mSATA Integrated HDA 5.1 sound card ATX power supply Working temperature: 0℃~60℃ Static protection: Contact ±8KV, Air ±15KV Mini-ITX (170*170mm) Supports Windows, Linux, Chrome operating systems, memory 4G/8G, CPU: I3/I5/I7, LGA 1151, hard disk: 500G," |
| Power supply | ||
| 2 | Playback display | |
| 3 | Operation display | Pixel: ≥TFT LCD Panel 1920*1080 Contrast: 1000:1 Supported colors: ≥16.7M, RGB Response time: ≤5ms Brightness: ≥250cd/m2 Service life: ≥30000 hours |
| 4 | Touch screen module | Pixel: ≥TFT LCD Panel 1280*1024 Contrast: 1000:1 Supported colors: ≥16.7M, RGB Response time: ≤5ms Brightness: ≥250cd/m2 Service life: ≥30000 hours |
| 5 | Second generation ID card reader | Input method: Finger or Cap. Stylus Accuracy: Within 2.5mm each target & 10% Jitter limit on moving Resolution: 25ppi (Min.) Glass penetration: greater than 85% Glass haze value: 3% (Maximum) |
| 6 | QR code scanner | |
| 7 | High-speed scanner | Light source LED Image sensor 300,000-pixel CMOS sensor chip Maximum resolution 640*480 Reading direction Horizontal 360 degrees Reading speed 50ms to 5000ms adjustable, supports continuous scanning Reading distance 0-20mm to the window mirror Image acquisition characteristics Automatic control, beep prompt Decoding capability One-dimensional code EAN-13, EAN-8, EAN-128, UPC-A, UPC-E, 39 code, 25 code, etc. Two-dimensional code DM code, QR code, Hanxin code, readable damaged symbols |
| 8 | A4 printer | Shooting size: A4 and below Focus mode: Autofocus Main camera: CMOS 10 million pixels Scanning speed: about 1 second Image color: 24 bits Maximum resolution: 2592*1944/ |
| 9 | Pinhole camera | Printer type Black and white printer Maximum resolution 600dpi Print speed 24 pages/minute First page paper output time Less than 8.5 seconds Paper capacity 250 pages Print media Plain paper Thin paper Thick paper Recycled paper Coated paper Labels and envelopes Memory 8MB |
| 10 | Mic pickup | Lens Size 1/3 inch Pixel size 2.2um X 2.2um Maximum effective pixel 2048(H)X1536(V) Output image format H264, YUV2 (YUYV), MJPEG Frame rate 1920*1080 @ 30fps H264/MJPEG Signal-to-noise ratio 39dB Dynamic range 100dB Sensitivity 1.9V/lux-sec@550nm Shutter type Electronic rolling shutter/ Frame exposure Interface type USB2.0 High Speed Support driver-free protocol USB Video Class (UVC) Support OTG protocol USB2.0 OTG Automatic exposure control AEC Automatic white balance AEB Automatic gain control AGC |
| 11 | Peeping mirror | |
| 12 | Sound system | Focal length - 350mm Thickness 1.6mm Pitch 0.3mm Concentric thread design Made of high-quality imported PMMA material 1. Viewing angle 2 High-definition imaging 3. Ultra-thin thickness 1.6mm 4. Flat mirror, not concave-convex mirror |
| 13 | Complete chassis | Left and right dual-channel amplification output, frequency response range: 100Hz-20KHz, effective output 25W |

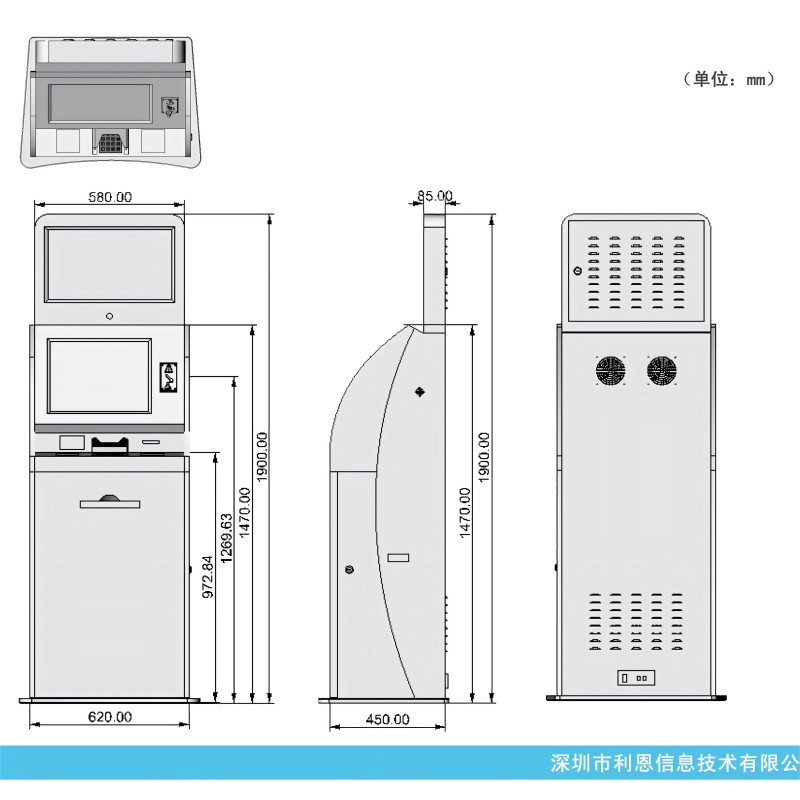

| 15 | Machine Cabinet | Lobby-style structure, the body is sprayed, rust-proof, acid-proof, dust-proof, and anti-static. Appearance: novel, beautiful, and noble; Material: hard and thick, not easy to deform; Internal structure: module maintenance method, simple and convenient maintenance; wiring is standardized and neat; External structure: fine workmanship, cold-rolled steel plate, thickness 1.5-3.0MM, metal cold-rolled steel spray cabinet, ergonomic design, simple and comfortable operation. |

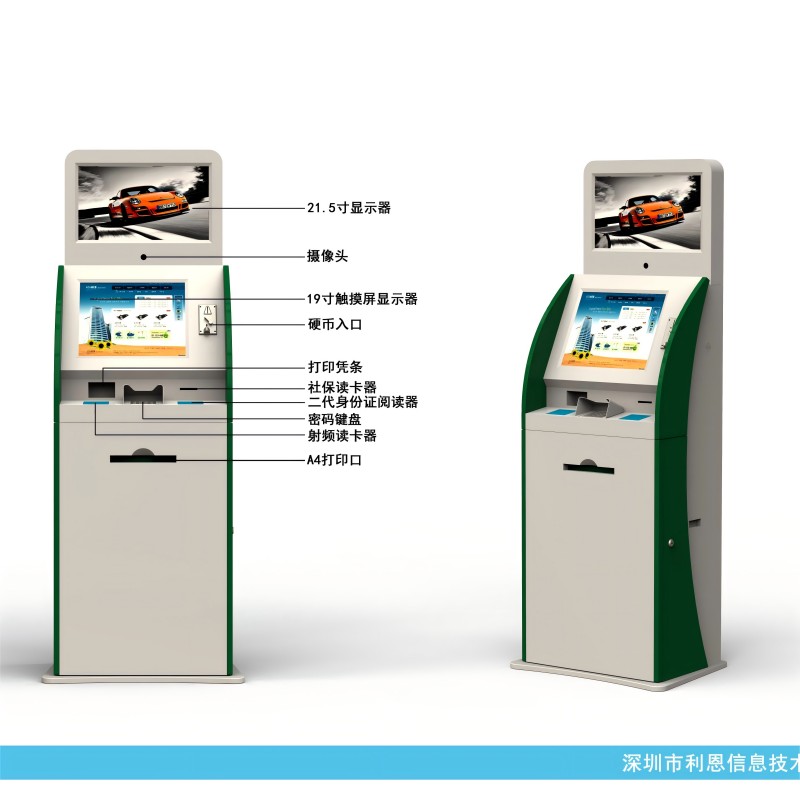

1.Camera
2.21.5 Inch touch screen
3.Advertisement display screen
4.Coin acceptance and echange module
5.Thermal printer
6.Social security card reader
7.ID card reader
8.Metal password keyword
9.RFID card reader
1. Museums: used to provide exhibit information, navigation, interactive experience and ticketing services.
2. Exhibitions and exhibition centers: help visitors obtain exhibition information, event schedules and booth navigation.
3. Company reception areas: used for visitor registration, appointment management and company information display.
4. Government agencies: provide self-service for visitors, such as information query and document submission.
5. Hospitals and medical institutions: used for patient registration, information query and appointment management.
6. Educational institutions: such as schools and universities, for visitor registration, campus navigation and information display.
7. Shopping malls: provide store information, promotions and navigation services.
8. Hotels and resorts: provide check-in, self-service and travel information for visitors.
9. Transportation hubs: such as airports and railway stations, for information query, navigation and service reservation.
1. Improve efficiency: automate visitor registration and information processing, reduce manual operation time, and improve reception efficiency.
2. Enhance user experience: provide intuitive touch screen interface and multi-language support, facilitate visitor self-service operation and information query, and improve user satisfaction.
3. Security management: visitor machine can record visitor information, issue visitor cards and manage access rights, improve the security and management level of the venue.
4. Reduce queuing time: self-service reduces visitor waiting time and optimizes the access process.
5. Data analysis: collect visitor data, which helps analyze visitor behavior, optimize services and improve management decisions.
6. Cost savings: reduce the need for manual reception staff and reduce labor costs.
7. Information display and promotion: visitor machine can display multimedia content, such as videos, pictures and text, for information publicity and event promotion.
8. Flexibility and scalability: can integrate other hardware and software, such as printers, RFID readers and appointment systems, to expand functions.
FAQS
1. What are the main functions of the visitor machine?
- The visitor machine is mainly used for visitor registration, information query, visitor card issuance, access rights management and multimedia information display.
2. Does the visitor machine support multi-language function?
- Yes, most visitor machines support multi-language function to provide convenient services for visitors with different language backgrounds.
3. Can the visitor machine be integrated with other devices?
- Yes, the visitor machine can integrate printers, RFID readers, cameras and other devices to expand functions, such as printing visitor cards, recording visitor information, etc.
4. How to update and manage the content on the visitor machine?
- The content of the visitor machine is usually updated remotely through the background management system, and the display content can be changed and managed at any time.
5. What is the process of visitor registration?
- Visitors usually enter basic information on the touch screen, such as name, purpose of visit, etc., and then the system will generate a visitor card or QR code for access
