Product Details:
| Place of Origin: | kiosk manufacturer |
| Brand Name: | Lien |
| Certification: | FCC, CE, ROHS |
| Model Number: | LKS-8379 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 UNITS |
|---|---|
| Price: | $ |
| Packaging Details: | Strong Case |
| Delivery Time: | 5-6 weeks |
| Payment Terms: | TT |
| Supply Ability: | 5000 units per month |
The self-service kiosks provide customers with the convenience of purchasing tickets, retrieving pre-ordered tickets, and indulging in a detailed menu exploration. This allows them to discover novel products like popcorn and beverages, which they may wish to try out.
The self-service kiosk in the cinema not only mitigates various challenges but also brings significant benefits, such as reducing waiting time in lines. Furthermore, this innovative solution enables customers to effortlessly view the seating plan and select their desired seats from three distinct options.
We offer three different types of seating options for your convenience and choice! This self-service system is designed to enhance the overall customer experience by providing an efficient and enjoyable way to purchase tickets, browse products, and select seating arrangements.
Components | Details | |
PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
CPU | Intel Dual Core G2020 | |
RAM | 2 GB | |
HDD | 500G | |
Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card | |
PC Power Supply | HUNTKEY/Great Wall | |
LCD monitor | Screen Size | 22 / 17 inch ( optional from 8inch to 65inch) |
Brightness | 250cd/m2 | |
angle | horizontal 100°above;Vertical 80°above | |
Contrast | 1000:1 | |
Backlight tube life | more than 40,000hours | |
Max. resolution | 1280×1024 | |
Touch screen | Screen Size | inch Diagonal ( optional from 8inch to 65inch) |
Resolution | 4096x4096 | |
High Transparent, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
Receipt / Ticket Printer | Interface | High Speed USB |
Resolution | 4800*1200 maximum | |
Printing speed | 4.8 ipm | |
Width | 58 /80 /112 mm | |
Length | Customizable | |
| Resolution | 1280*720 |
Pixel | 8000000 | |
Adaptive Resolution | 1280*720 | |
Interface | USB 2.0 | |
Driver | No | |
NFC card reader | Status Display | LED indicator to show the power or communication status |
Card Type | ISO14443TypeA of Contact-less IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight | |
Type | Support ISO14443 | |
2D scanner | Readable Code | CMOS |
Resolution | 752*480 | |
Readable Code | 2D PDF417, QR Code(Model 1/2), Data Matrix(ECC200, ECC000, 050, 080, 100,140), Aztec, Maxi-code, etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Data-bar, etc | |
Approval | FCC Part15 Class B, CE EMC Class B | |
Work Voltage | DC 5V (4.5-5.5V) | |
Interface | RS232, USB | |
Wireless module | WLAN module | With industrious antenna exposure |
Motorized card reader | Card type | Support Mag card, IC Card, RF Card, Mi-fare S50,S70,UL Card |
Magnetic Head Life | 500,000/min | |
IC Card Touch Port | 300,000/min | |
Speakers | Features | Dual channel amplified speakers for Stereo ,8Ω 5W |
Digital Power Supply | AC input voltage range | 100~240VAC |
Frequency | 50Hz to 60Hz | |
AC input voltage range | 100~240VAC | |
Frequency | 50Hz to 60Hz | |
Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
Operation System | Windows 7 or Windows XP operation system without license | |
Free standing Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Anti-rust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
Package | Security Packing method with bubble foam and wooden case | |

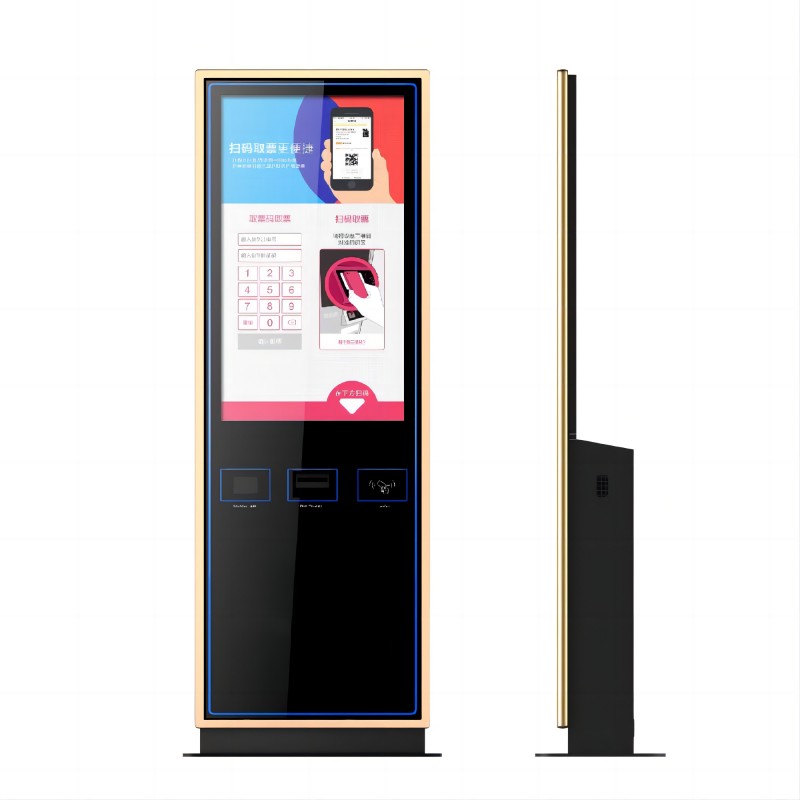

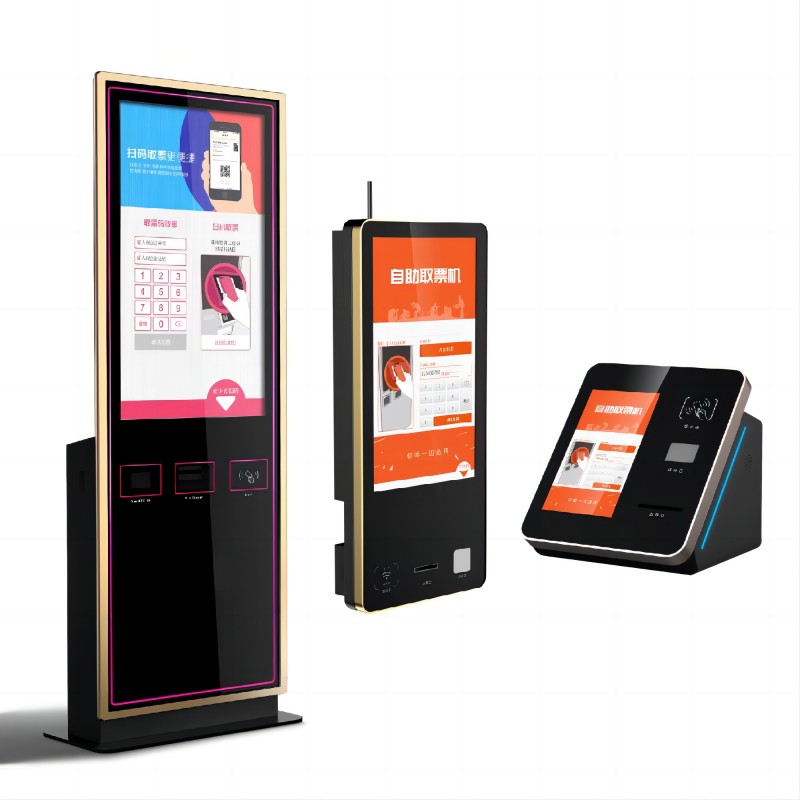

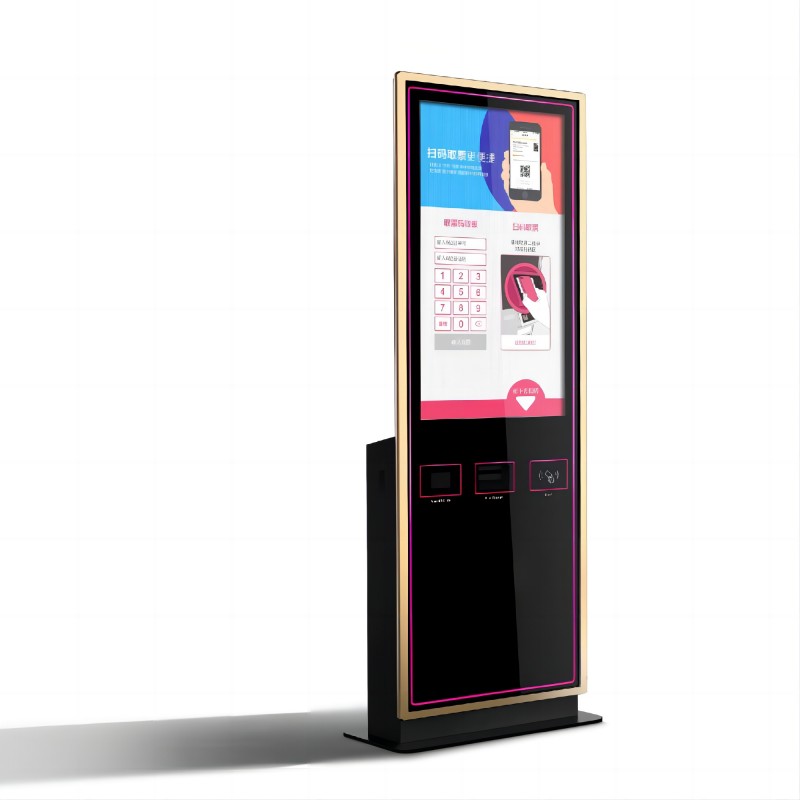

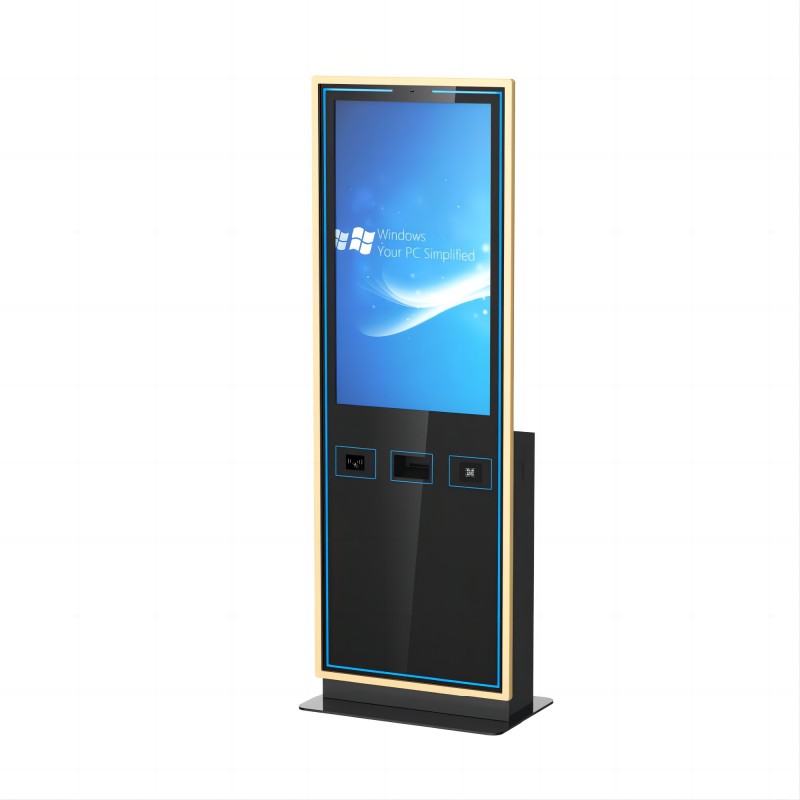

1.8inch-65inch Standing self-service Ticketing Kiosk
The 8inch-65inch standing self-service ticket booth is a self-service terminal device that integrates modern, technological sense and efficient service, and has a wide range of application prospects and market value.
2.Bar-code Scanner
Bar-code Scanner is an efficient and convenient device that can quickly and accurately read the information in barcodes or QR codes, which is widely used in many fields. Its small, lightweight appearance and easy to use operation also make it an indispensable part of modern life.
3.POS Terminal is an indispensable electronic equipment in the modern business field, which integrates a variety of functions in one, and provides convenient and efficient business management solutions for merchants.
Our machines are commonly used in cinemas and are currently widely employed in venues like TXPC, MIXC, and Maoyan.
1.We not only address the challenges of long lines and limited staff, but also offer significant benefits to customers.
2. This self-service solution allows customers to easily view the available seating plan on the kiosk’s screen and select their preferred seats with ease.
3.Wall-mounted design for easy installation and operation, while also saving space.
1.Equipment performance and functions:
Consider the performance and functions of the self-service ticket collection machine, such as printing speed, screen display clarity, support for payment methods (such as cash, bank cards, mobile payments, etc.).Ensure stable operation and an interface that is easy to operate and maintain.
2.Security and Data Protection:
Ensure that self-service ticket collection machines are equipped with data encryption and secure payment processing to protect the transaction security of spectators and merchants.Check your device's protection against potential cyber attacks or malware threats.
3.User Interface and User Experience:
Pay attention to the user interface design of the self-service ticket pickup machine to ensure that the operation is simple and intuitive and easy for the audience to use.Consider the ease of use of the device, including the accessibility of the device, screen size, and responsiveness.
Q: How to ship the kiosk?
A: Air and sea shipping are optional, and sea shipping is recommended for bulk orders. All kiosks should be shipped in a standing position and must not be put down.
Q: Are you a manufacturing or trading company?
A: We are an OEM/ODM kiosk manufacturer
Q: What payment methods does your company accept?
A: We accept most payment methods, but mainly accept T/T. L/C, Western Union, PayPal and Money Gram.
Q: How long is your delivery time?
A: It depends on the order quantity, about 5 weeks for samples and about 4 weeks for less than 100 units.
Q: What is the warranty period of your kiosk?
A: 12 months from the date of shipment, for components, free repair or replacement, shipped by sender.
Q: Can you customize the kiosk?
A: Yes, we always customize the product according to your requirements. Including redesigning the kiosk appearance, printing your company logo, choosing specific colors, etc. OEM or ODM is available.
Q: What is the MOQ?
A: The MOQ is 1 unit, we accept samples
