Shenzhen Lean Kiosk Systems CO., LTD
| Place of Origin: | Kiosk manufacturer |
|---|---|
| Brand Name: | LKS |
| Certification: | FCC, CE, ROHS |
| Model Number: | LKS-8379 |
| Min Order: | 1 unit |
|---|---|
| Price: | $ |
| Packaging: | Wooden Case |
| Delivery Time: | 5-6 weeks |
| Payment Terms: | TT |
| Supply Ability: | 5000 units per month |

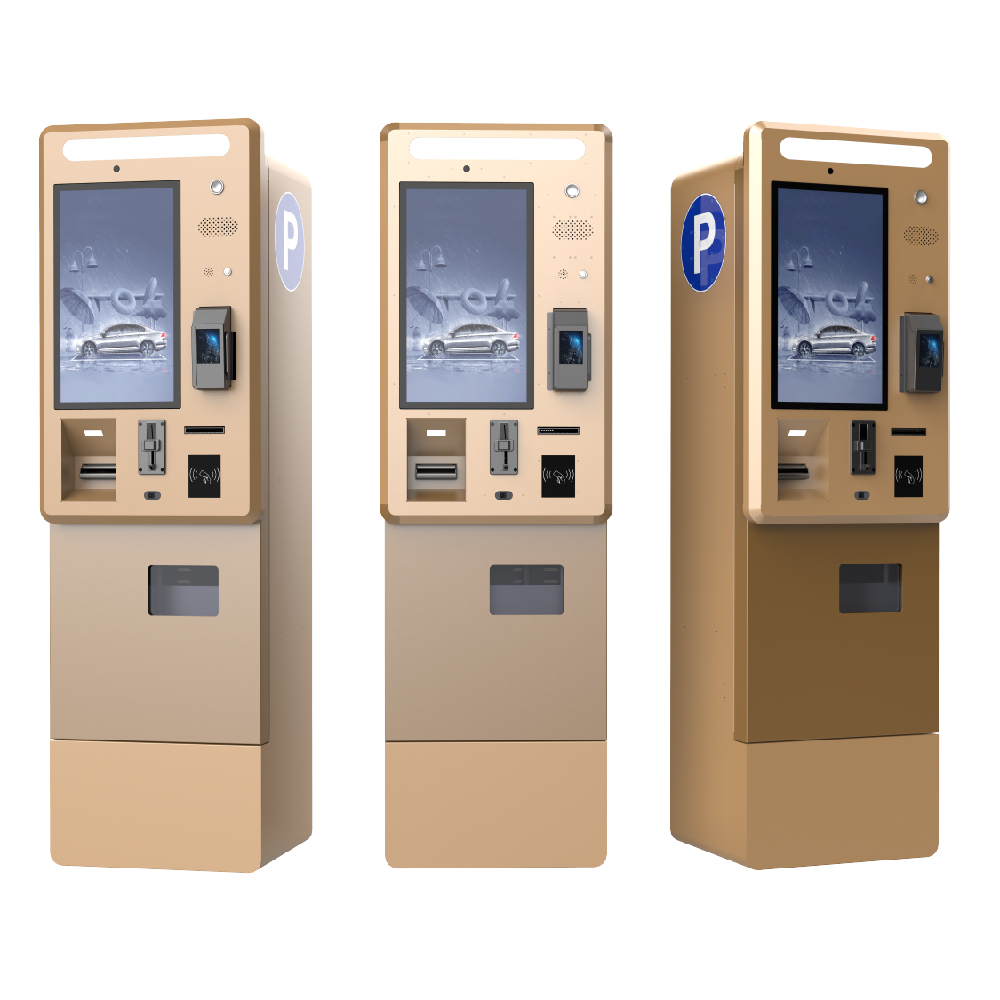

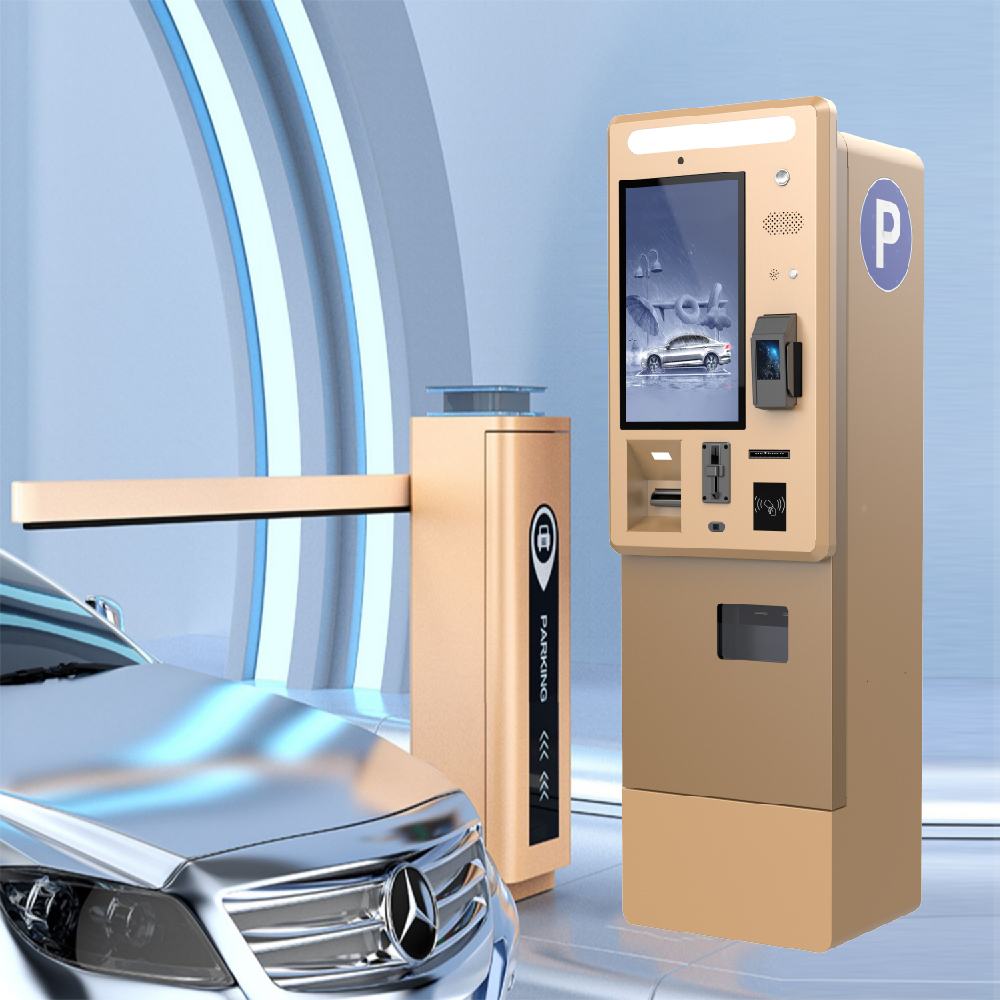

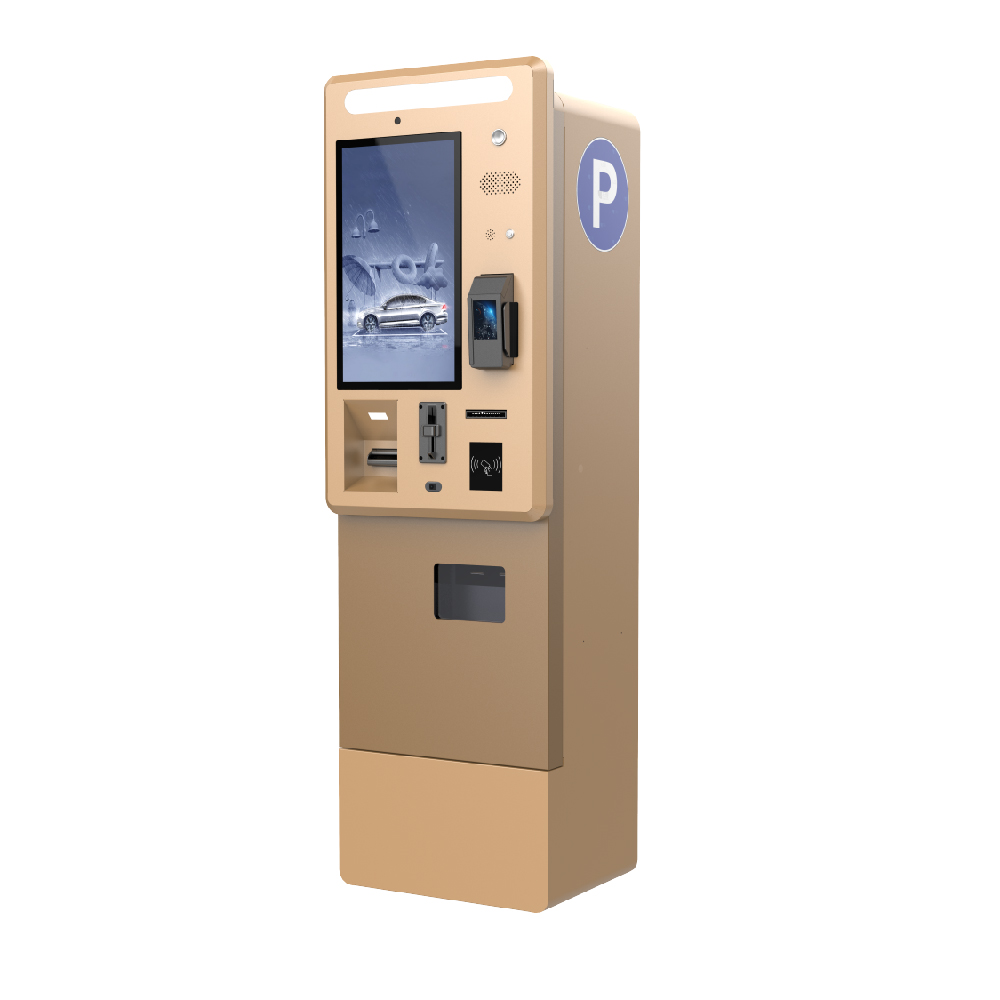

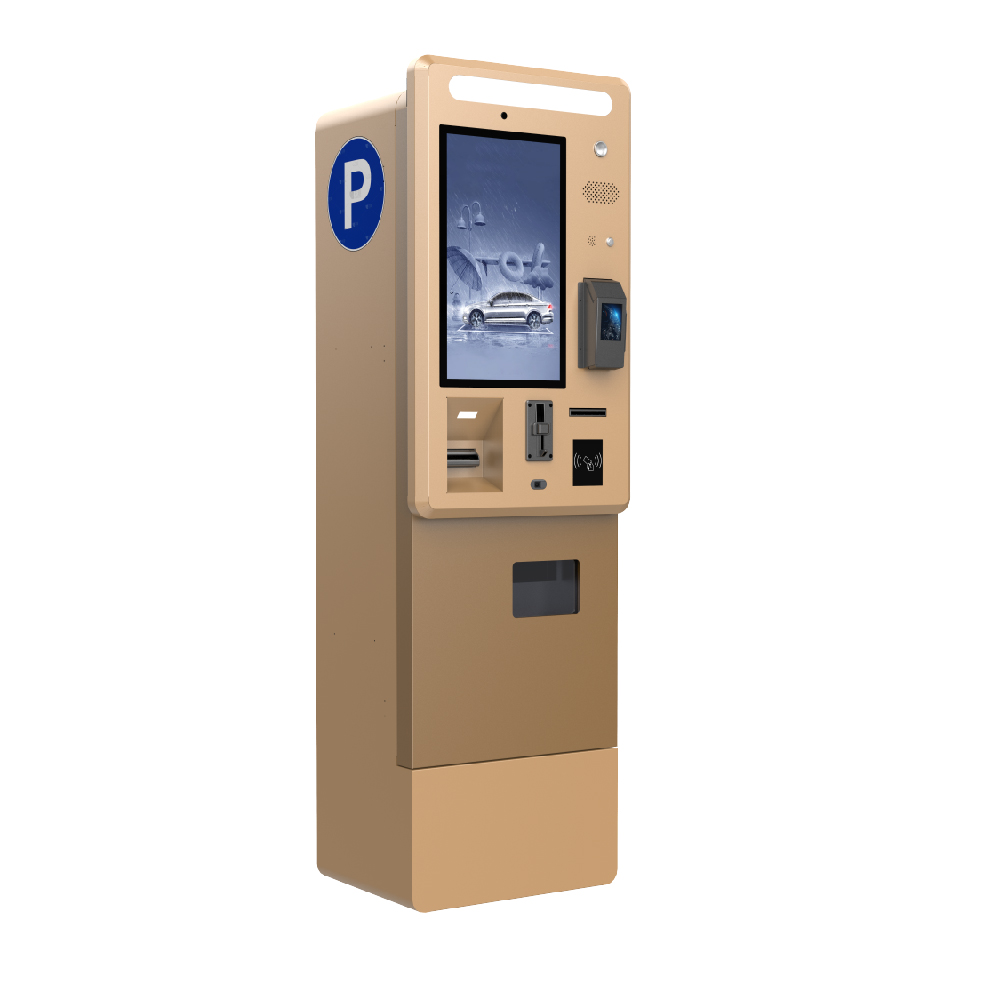

A parking lot kiosk is a self-service machine designed to streamline parking payments. Users can conveniently pay their parking bill by swiping a card or scanning a QR code. The kiosk processes the payment and prints a receipt, making the transaction quick and efficient. Ideal for both short-term and long-term parking, the system ensures a hassle-free experience without the need for human assistance.
Components | Details | |
PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 | |
RAM | 2GB /4 GB / 8GB | |
HDD | 500G | |
Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card | |
PC Power Supply | HUNTKEY/Great Wall | |
LCD monitor | Screen Size | 15inch |
Brightness | 250cd/m2 | |
angle | horizontal 100°above;Vertical 80°above | |
Contrast | 1000:1 | |
Backlight tube life | more than 40,000hours | |
Max. resolution | 1280×1024 | |
Touch screen | Screen Size | 15inch Diagonal ( optional from 8inch to 65inch) |
Resolution | 4096x4096 | |
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
Bank/Credit Card Reader | Interface | RS232 |
Card Type | Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card | |
Power Voltage | DC 24V±5% | |
Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal | |
Epson receipt thermal printer | Autocutter | included |
Technology | Thermal printing | |
Paper width | 80mm | |
Printing speed | 150mm/s | |
Data buffer | 4KB | |
Interface | RS232 ,USB | |
UPS | Input voltage | 145-290va |
Output voltage | 200-255va | |
Max time for supplying a single PC | 3~20minutes (for single PC) | |
Digital Power Supply | AC input voltage range | 100~240VAC |
Frequency | 50Hz to 60Hz | |
AC input voltage range | 100~240VAC | |
Frequency | 50Hz to 60Hz | |
Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
Operation System | Windows 7 or Windows XP operation system without license | |
KIOSK Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
Packing | Security Packing method with bubble foam and wooden case | |
1. Fee Collection
Allow visitors to purchase entry permits, parking passes, camping permits, and other services, facilitating convenient fee collection.
2. Multimedia Integration
Incorporate touchscreen interfaces, audiovisual displays, and interactive features to engage visitors and enhance their experience.
3. Maintenance and Reporting
Provide park management with data collection capabilities and feedback mechanisms to monitor visitor trends, needs, and satisfaction levels.
Outdoor parking kiosks are versatile systems that can be used in a variety of settings to enhance parking management and improve user convenience. It can be uesd in public parking lots, shopping malls and retail centers, airports and transit hubs, universities and campuse, hotels and resorts, hospitals and medical centers, event venues and stadiums etc.
1. Convenience: Users can quickly pay for parking using cards, QR codes, or mobile apps, reducing the need for cash and making transactions fast and easy.
2. Convenience: Users can quickly pay for parking using cards, QR codes, or mobile apps, reducing the need for cash and making transactions fast and easy.
3. Efficiency: Automates parking payments, minimizing the need for human attendants and speeding up the process, especially during peak times.
24/7 Availability: The kiosk operates round-the-clock, ensuring users can pay for parking anytime without relying on staff.
1. Remote Monitoring and Support: LKS are equipped with remote monitoring capabilities, allowing the factory’s tech support team to diagnose and address problems without needing a physical visit.
2. Maintenance Services: LKS offer scheduled maintenance, including hardware inspections and part replacements, to ensure long-term reliability.
3. Spare Parts Availability: LKS ensure the availability of spare parts for timely repairs and replacements, minimizing downtime for clients.
1. High-Quality and Durable Products: Our outdoor kiosks are built to withstand harsh weather conditions, ensuring long-lasting performance with robust materials and reliable technology.
2. Customizable Solutions: We offer tailor-made kiosk designs to meet your specific needs, including size, payment options, and branding, ensuring the kiosks seamlessly integrate with your business.
3. Cutting-Edge Technology: Equipped with the latest technology, our kiosks offer multiple payment methods, remote monitoring, and advanced security features, providing both convenience and peace of mind.
1. Q: Are you a manufacturing or trading company?
A: We are an OEM/ODM kiosk manufacturer
2. Q: How to ship the kiosk?
A: Air and sea shipping are optional, and sea shipping is recommended for bulk orders. All kiosks should be shipped in a standing position and must not be put down.
3. Q: What payment methods does your company accept?
A: We accept most payment methods, but mainly accept T/T. L/C, Western Union, PayPal and Money Gram.
4. Q: How long is your delivery time?
A: It depends on the order quantity, about 5 weeks for samples and about 4 weeks for less than 100 units.
5. Q: What is the warranty period of your kiosk?
A: 12 months from the date of shipment, for components, free repair or replacement, shipped by sender.
6.Q: Can you customize the kiosk?
A: Yes, we always customize the product according to your requirements. Including redesigning the kiosk appearance, printing your company logo, choosing specific colors, etc. OEM or ODM is available.
7. Q: What is the MOQ?
A: The MOQ is 1 unit, we accept samples
