Shenzhen Lean Kiosk Systems CO., LTD
Product Details
| Place of Origin: | kiosk manufacturer |
|---|---|
| Brand Name: | Lien |
| Certification: | FCC, CE, ROHS |
| Model Number: | LKS-8379 |
Payment & Shipping Terms
| Min Order: | 10 UNITS |
|---|---|
| Price: | $ |
| Packaging: | Strong Case |
| Delivery Time: | 5-6 weeks |
| Payment Terms: | TT |
| Supply Ability: | 5000 units per month |
Detailed Product Description

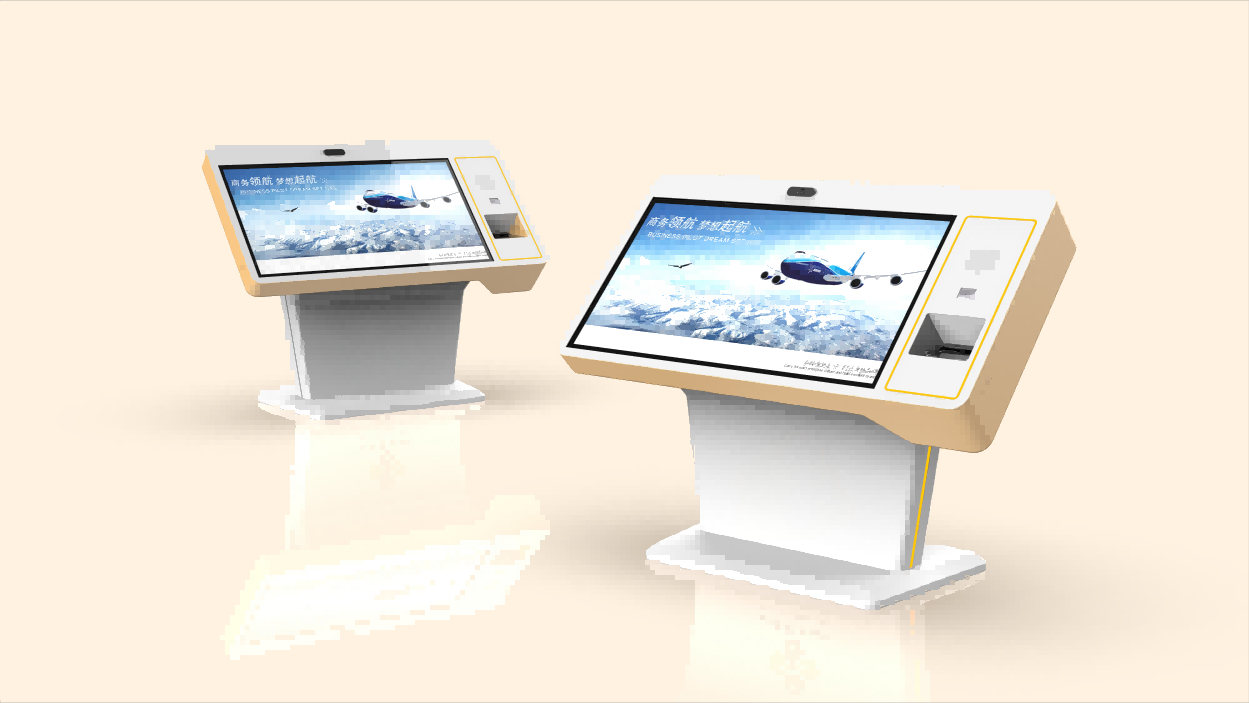

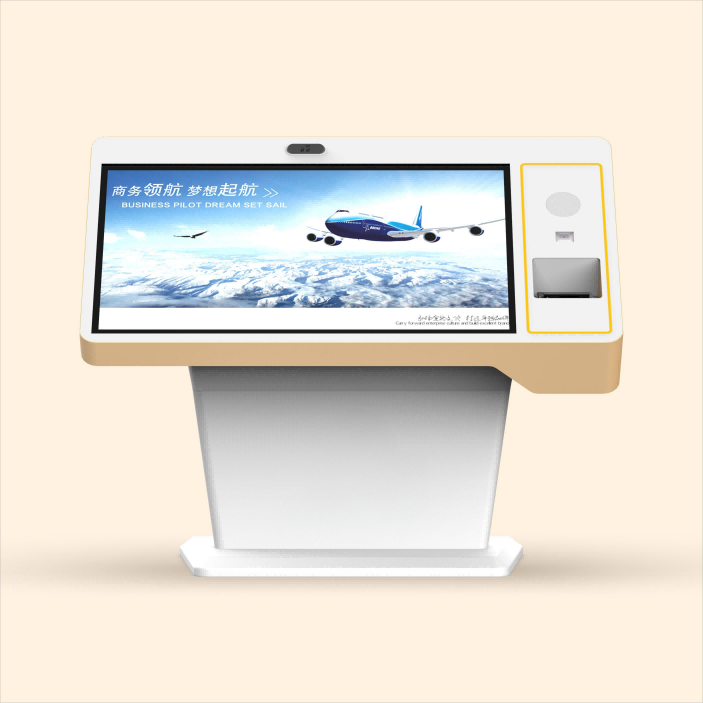

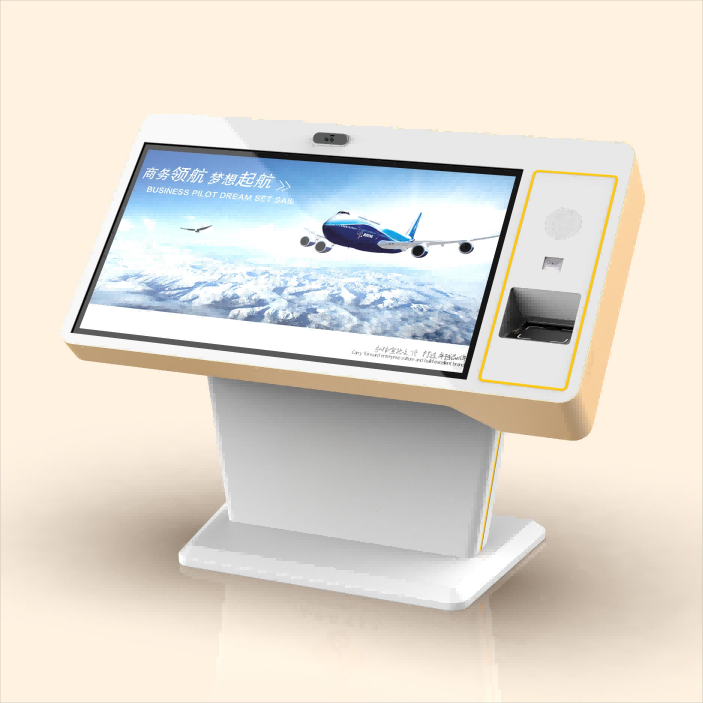

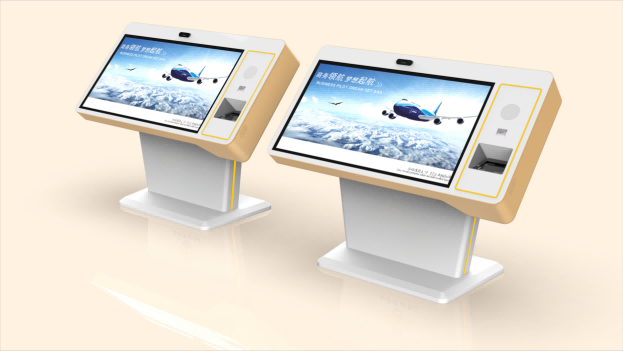

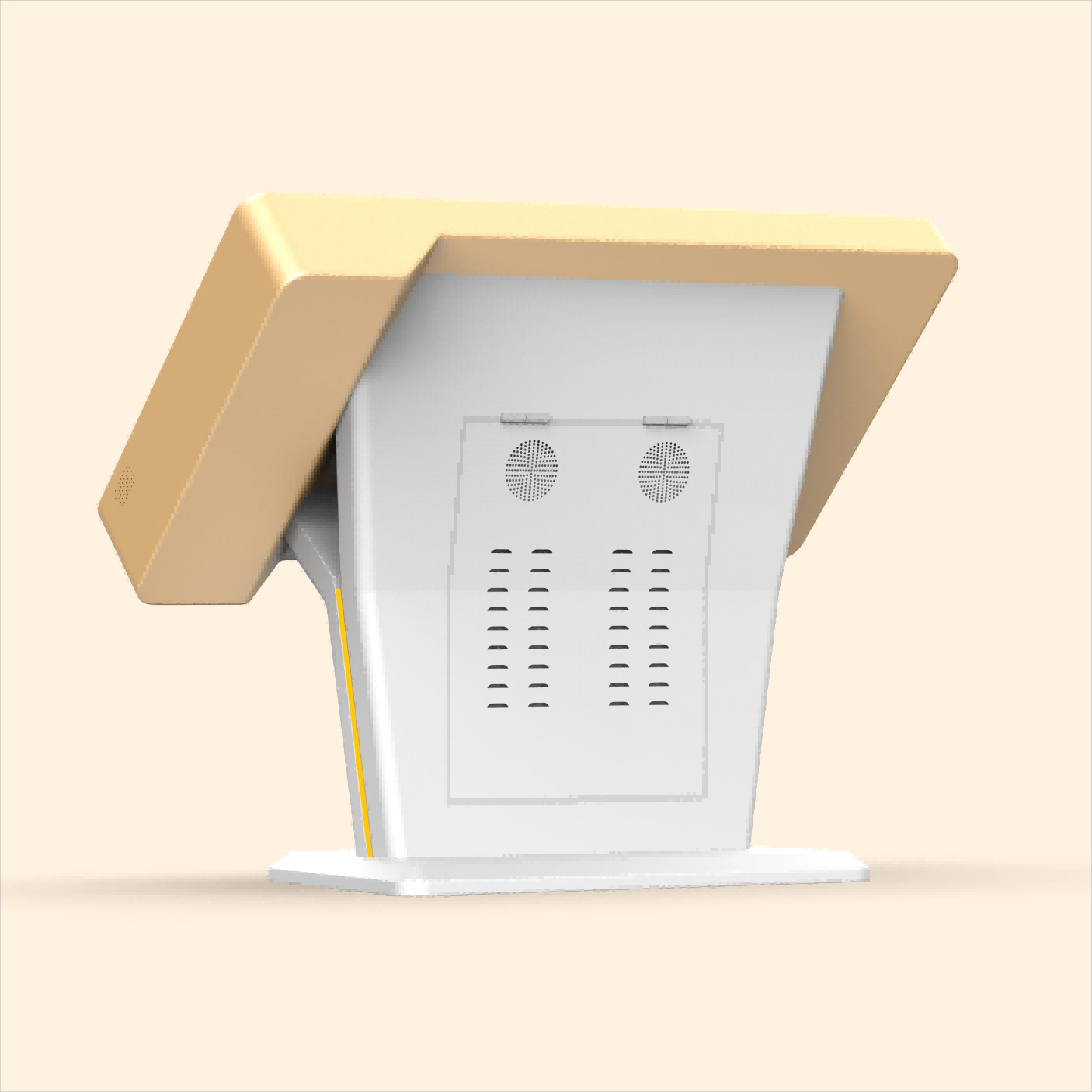

The Tablet Kiosk Stand Airport Machine is an innovative self-service device designed specifically for airport environments that combines a tablet stand with multiple self-service functions to provide travelers with a convenient and efficient service experience. This type of equipment is widely installed in various areas of the airport, such as concourses, gate areas, baggage drop areas, dining and shopping areas, to improve the efficiency of airport operations and passenger travel experience.
Components | Details | |
PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
CPU | Intel Dual Core G2020 | |
RAM | 2 GB | |
HDD | 500G | |
Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/1000M Net Port ;Integrated Net Card, Sound Card | |
PC Power Supply | HUNTKEY/Great Wall | |
LCD monitor | Screen Size | 22 / 17 inch ( optional from 8inch to 65inch) |
Brightness | 250cd/m2 | |
angle | horizontal 100°above;Vertical 80°above | |
Contrast | 1000:1 | |
Backlight tube life | more than 40,000hours | |
Max. resolution | 1280×1024 | |
Touch screen | Screen Size | inch Diagonal ( optional from 8inch to 65inch) |
Resolution | 4096x4096 | |
High Transparent, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
Receipt / Ticket Printer | Interface | High Speed USB |
Resolution | 4800*1200 maximum | |
Printing speed | 4.8 ipm | |
Width | 58 /80 /112 mm | |
Length | Customizable | |
| Resolution | 1280*720 |
Pixel | 8000000 | |
Adaptive Resolution | 1280*720 | |
Interface | USB 2.0 | |
Driver | No | |
NFC card reader | Status Display | LED indicator to show the power or communication status |
Card Type | ISO14443TypeA of Contact-less IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight | |
Type | Support ISO14443 | |
2D scanner | Readable Code | CMOS |
Resolution | 752*480 | |
Readable Code | 2D PDF417, QR Code(Model 1/2), Data Matrix(ECC200, ECC000, 050, 080, 100,140), Aztec, Maxi-code, etc ;1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Data-bar, etc | |
Approval | FCC Part15 Class B, CE EMC Class B | |
Work Voltage | DC 5V (4.5-5.5V) | |
Interface | RS232, USB | |
Wireless module | WLAN module | With industrious antenna exposure |
Motorized card reader | Card type | Support Mag card, IC Card, RF Card, Mi-fare S50,S70,UL Card |
Magnetic Head Life | 500,000/min | |
IC Card Touch Port | 300,000/min | |
Speakers | Features | Dual channel amplified speakers for Stereo ,8Ω 5W |
Digital Power Supply | AC input voltage range | 100~240VAC |
Frequency | 50Hz to 60Hz | |
AC input voltage range | 100~240VAC | |
Frequency | 50Hz to 60Hz | |
Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
Operation System | Windows 7 or Windows XP operation system without license | |
Free standing Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Anti-rust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
Package | Security Packing method with bubble foam and wooden case | |
1.Integrated Tablet: Use the tablet as the interface, providing touch screen interaction that the user can easily operate.
2.Multi-functional services: provide boarding pass printing, flight information inquiry, baggage consignment, self-service check-in and other services.
3.Multiple payment methods: Support credit card, debit card and mobile payment and other payment methods, convenient for users to conduct transactions.
4.High security: The device is usually equipped with anti-theft locks and a robust housing to ensure the safety of the device and user information.
5.Networking function: Flight information can be updated online to ensure that users get the latest flight dynamics.
6.Multi-language support: Provides a multi-language interface to adapt to users with different language backgrounds.
7.Advertising and promotion: Device screens can be used to display advertisements and airport information, adding additional revenue streams.
1.Airport lobby: It is placed in the airport lobby to provide passengers with self-service check-in, boarding pass printing and flight information inquiry services.
2.Gate area: Placed in the gate area, convenient for passengers to check flight information and print boarding passes at any time.
3.Baggage drop off area: It is placed in the baggage drop off area and provides self-service baggage drop off service to reduce queuing time.
4.Dining and shopping area: Placed in the dining and shopping area, convenient for passengers to check flight information and check-in while dining or shopping.
1.Improve efficiency: Reduce queuing time and improve check-in and boarding efficiency.
2.Reduce costs: Reduce the reliance on manual services and reduce labor costs.
3.Improve service quality: Provide all-weather self-service to facilitate users to handle various procedures at any time.
4.Data collection and analysis: Devices can collect user behavior data to help airports make market analysis and decisions.
5.Advertising revenue: The device screen can play ads and airport information, adding additional revenue.
Buying a Tablet Kiosk Stand Airport Machine is a wise choice to improve airport operation efficiency and passenger travel experience. This device combines a tablet PC stand and a variety of self-service functions to provide boarding pass printing, flight information query, baggage check and self-service check-in services, reducing passenger queuing time and improving service efficiency. The device supports multiple payment methods and multilingual interfaces to adapt to the needs of travelers from different backgrounds. Its high-security design and networking capabilities ensure the security of passenger information and real-time flight updates. In addition, the device screen can play ads, adding additional revenue. By installing in the airport lobby, gate, baggage drop area and food and shopping area, the equipment can facilitate passengers to handle various procedures at any time, significantly improving the quality of airport service and operational efficiency. Therefore, the purchase of Tablet Kiosk Stand Airport machines will bring a win-win situation for airports and passengers.
Q: How to ship the kiosk?
A: Air and sea shipping are optional, and sea shipping is recommended for bulk orders. All kiosks should be shipped in a standing position and must not be put down.
Q: Are you a manufacturing or trading company?
A: We are an OEM/ODM kiosk manufacturer
Q: What payment methods does your company accept?
A: We accept most payment methods, but mainly accept T/T. L/C, Western Union, PayPal and Money Gram.
Q: How long is your delivery time?
A: It depends on the order quantity, about 5 weeks for samples and about 4 weeks for less than 100 units.
Q: What is the warranty period of your kiosk?
A: 12 months from the date of shipment, for components, free repair or replacement, shipped by sender.
Q: Can you customize the kiosk?
A: Yes, we always customize the product according to your requirements. Including redesigning the kiosk appearance, printing your company logo, choosing specific colors, etc. OEM or ODM is available.
Q: What is the MOQ?
A: The MOQ is 1 unit, we accept samples
